jis cast steel globe valve

Description;

1)F7311C-Marine Cast Steel 5K Screw-down Check Globe valve

Nominal pressure; 5K(0.49Mpa)

DN 50, 65,80,100,125,150,200,250,300

2)F7473-Marine Cast Steel 20K Screw-down Check Globe valve

 Nominal pressure; 20K(2.0Mpa)

 DN 32, 40, 50, 65,80,100,125,150,200,250

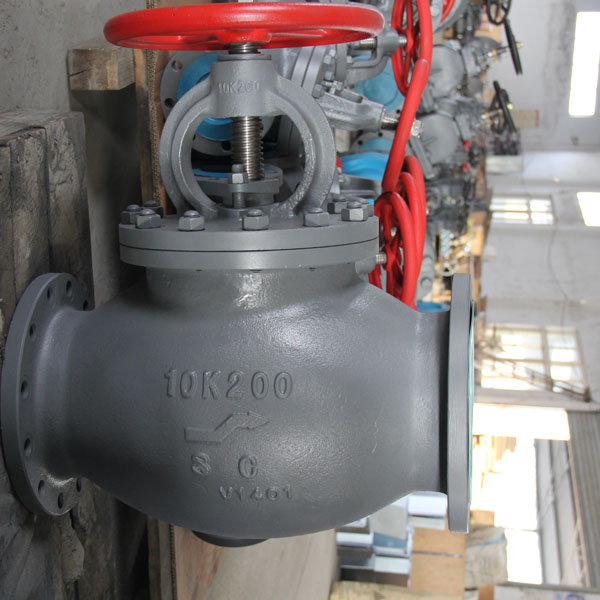

3)F7471-Marine Cast Steel 10K Screw-down Check Globe valve

Nominal pressure; 10K(0.98Mpa)

DN 50, 65,80,100,125,150,200,250,300

1.End Type; Flange

2.Straight Type

3. Main material;

Body/Bonnet;SC450;

Disc/Valve seat/ Gland packing; BC6; or brass or Stainless Steel 2CR13 or 1CR13

Stem; Brass C3771BD; or Stainless Steel 2CR13 or 1CR13.

Gasket; Non-asbestos;

Hand-wheel; FC200

4.Application;Sea water piping, fresh water piping, oil piping and steam piping.

5.Function:High flow, Zero leakage check globe valves are used for on-off duty and regulating the flow into one direction.
