Description;

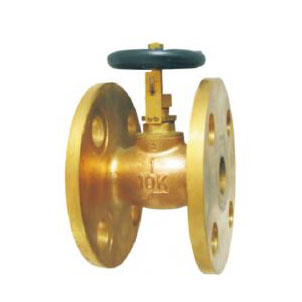

1) Class 150 Bronze or Brass Globe valve Open/close indicator

Nominal pressure; 5K(0.49Mpa)

DN 15, 20, 25, 32, 40, 50, 65, 80

2)Class 150 Bronze or Brass Globe valve Open/close indicator

 Nominal pressure; 10K(0.98Mpa)

 DN 15, 20, 25, 32, 40, 50,65

1. End Type; Flange

2.   Straight Type

3. Main material;

Body/Bonnet/Disc;BC6; or brass

Stem; Brass C3771BD;

Gasket; Non-asbestos;

Hand-wheel; FC200

4.Application;Sea water piping, fresh water piping, oil piping and steam piping.

5.Function:Such valves are used for on-off duty and regulating the flow rate.

Jis valve manufacturer in Qingdao China
Jis marine valve 5k 10k 16k 20k 30k 40k
Jis marine cast iron valve
Jis marine cast steel valve
Jis marine bronze valve
Jis marine globe valve
Jis marine gate valve
Jis marine swing/lift/sdnr check valve
Jis marine hose valve
Jis marine storm valve
Jis marine air vent head
Jis marine strainer
Self closing drain valve jis F7398
Emergency shut off valve JIS F7399
