| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1year |
| Certification: | CE ISO |
| Brand Name: | LEC |
| Condition: | New |
| Output Capacity: | 3m3 /h |
| Max. Horizontal Conveying Distance: | 200m |
| Suitable Mix Ratio(Cement/Sand): | 1:3~5 |
| Max. Aggregate Size: | 10 mm |
| drive mode: | electric drive,air motor drive,diesel drive |
| Conveying Pressure: | 0.2-0.4MPa(29-58PSI) |
| Air Consumption for conveying material: | 5~6m3/min(180-215CFM) |
| Rotor Speed: | 14r/min |
| Material Charging Height: | 0.9m |
| product type: | dry mix shotcrete machine |
Quick Details
Specifications
LZ-3 Shotcrete machine/Gunite machine /Concrete Spraying Machine Is small-sized shotcrete machine for the dry spraying process.

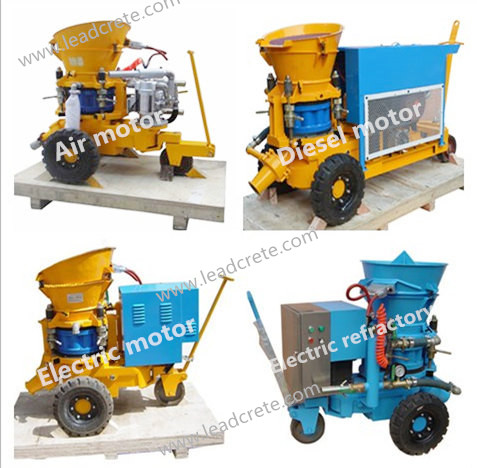

LZ-3 shotcrete machine is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or Rail-wheel
LZ-3 shotcrete machine application:
LZ-3 shotcrete machine can be used as well for small jobs, such as Joint filling, swimming pool, refractory application and extensive slope Consolidation work, etc.
Electric Motor Drive
Output Capacity |
3m3/h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
1:3~5 |
Max. Aggregate Size |
10 mm |
Conveying Hose Inner Diameter |
38/50mm |
Conveying Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material |
5~6m3/min(180-215CFM) |
Material Charging Height |
0.9m |
Rotor Speed |
14r/min |
Motor Power |
3kW(4hp),IP55 |
Available Voltage |
220V,380V,440V,660V;50Hz/60Hz |
Overall Dimension(lengthwidthheight) |
1.130.541.02m |
Net Weight |
430kg |
Air Motor Drive
Output Capacity |
1.5-3m3/h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
1:3~5 |
Max. Aggregate Size |
10 mm |
Conveying Hose Inner Diameter |
50mm |
Conveying Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption for Conveying material |
5~6m3/min(180-215CFM) |
Air Motor Air Pressure |
0.5MPa(71PSI) |
Material Charging Height |
0.9m |
Rotor Speed |
14r/min |
Air Motor Type |
TMH3.2 |
Air Motor Air Consumption |
4.8m3/min(171CFM) |
Overall Dimension(lengthwidthheight) |
1.130.541.02m |
Net Weight |
430kg |
Rated Output |
2-3m 3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
1: 3~5 |
Max. Aggregate Size |
10 Mm |
Conveying Hose Inner Diameter |
38/51mm |
Operating Air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
5~6m 3 /min(180-215CFM) |
Diesel Engine |
10hp,2200rpm |
Diesel Engine Starting |
Electric Start |
Clutch Type in Diesel Engine |
Automatic Clutch |
Material Charging Height |
0.9m |
Rotor Speed |
9-13r/min |
Overall Dimension(L W H) |
1.8 0.8 1.2m |
Net Weight |
480kg |
