Quick Details
Specifications
Description:
We are a professional of parallel shaft helical gearbox and geared motor, wildely used in extruder, rotary cutter, cement mill, Convery machine.
We are a professional of parallel shaft helical gearbox and geared motor, wildely used in extruder, rotary cutter, cement mill, Convery machine.

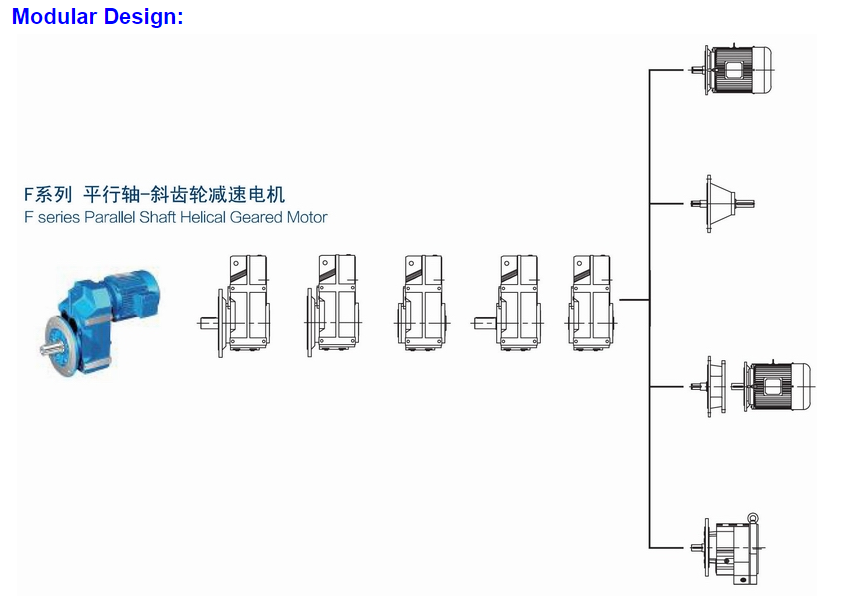

Our extra-slim parallel shaft helical gearmotors are the perfect solution when space is limited. The many different sizes and designs ensure that the gearmotors can be used in a wide variety of applications even under the most unfavorable conditions. F series parallel shaft helical gearmotors are typically used in conveyor and materials processing applications. You can choose from foot-mounted, flange-mounted or shaft-mounted options. Reduced backlash parallel shaft helical gear units are also available on request for precise positioning tasks.
The parallel shaft helical geared motor consists of 2-stage or 3-stage helical gears. The gears are made of high quality alloy steel. The surface is hardened with the processes of carburizing and quenching; the teeth are made by fine grinding. So, as a whole, the gear is characterized with good tightness.
Because we are using imported NAK oil seals and CTY oil seals, the excellent sealing performance can speak for itself. In addition, each parallel shaft helical gearbox has to pass sealing test before outgoing. We only allow those reducers which are proved to be leak free during the pressure testing to go to market.
The parallel shaft helical geared motor is widely used in metallurgy, water treatment, chemical, pharmaceutical and other industries. As the leading supplier of industrial reducer, we can provide the best power transmission solutions for your applications. We draw extensive expertise from the decades of experience in areas of producing and further processing of raw materials.
Advantages
1. Outstanding load capacity and stable performance. The power can be above 90KW.
2. High quality forged steel materials, rigid cast iron housing. The gear surface goes through high-frequency heat treatment and precision machining to ensure parallelism and positioning accuracy.
3. The assembled gear units are fitted with a variety of motors to achieve the electro-mechanical integration, which fully guarantees the physical properties of the parallel shaft helical geared motor.

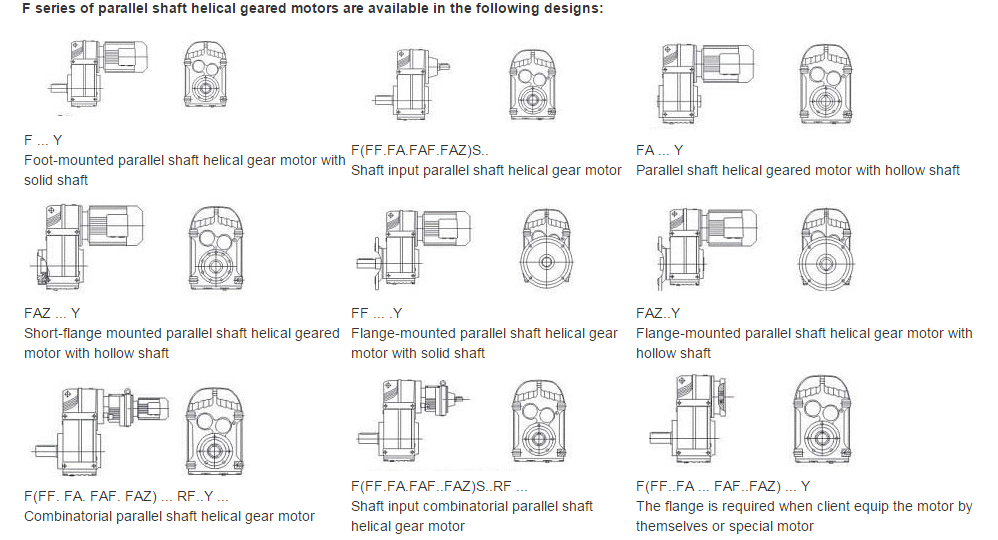

Available Versions
Foot-mounted or flange-mounted
B5 or B14 Flange-mounted
Solid or hollow shaft
Hollow shaft with keyed connection, shrink disk, splined hollow shaft

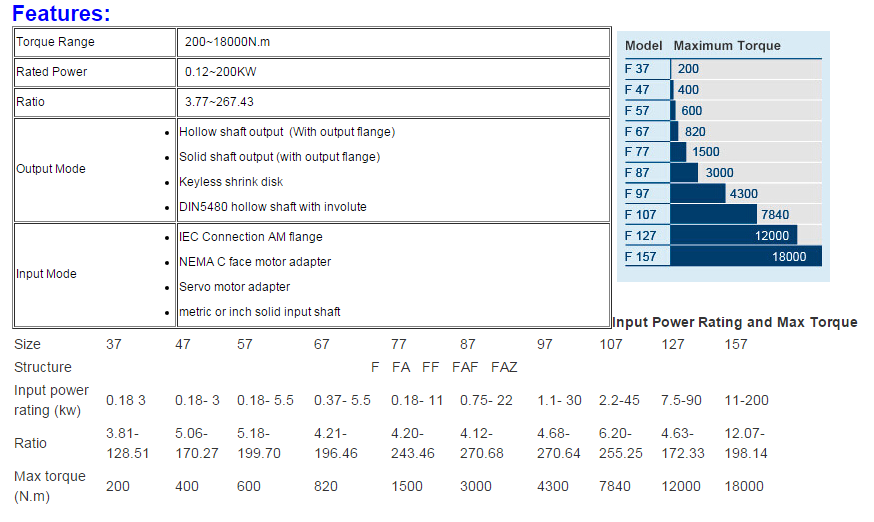

Parameters
Power: 0.18-200KW
Output torque: up to 1800N. M
Output speed: 0.11-373RPM
Mounting position: foot-mounted, flange-mounted, shaft-mounted
Output shaft: solid, hollow, splined hollow shaft
Transmission efficiency: 95%
