| Item Type: | Downlights |
|---|---|
| Light Source: | LED |
| Place of Origin: | China (Mainland) |
| Model Number: | PL-TD-033 |
| Certification: | CCC,CE,CQC,EMC,ETL,FCC,GS,LVD,PSE,RoHS,SAA,UL |
| IP Rating: | IP44 |
| Lamp Body Material: | Aluminum Alloy |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| CRI (Ra>): | 82 |
| Lamp Luminous Efficiency(lm/w): | 100 |
| Lamp Luminous Flux(lm): | 100 |
| Lamp Power(W): | 30 |
| Input Voltage(V): | 85-265 |
| Warranty(Years): | 3 |
| LED Light Source: | smd 5630 |
Quick Details
Specifications

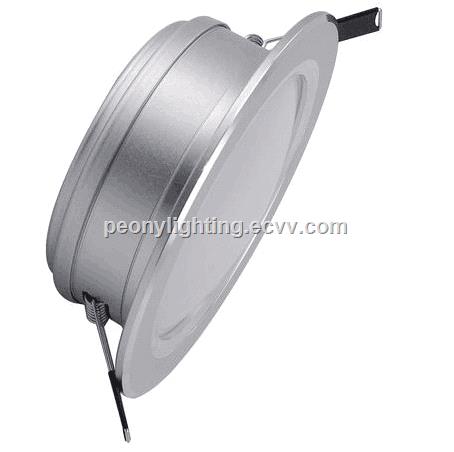

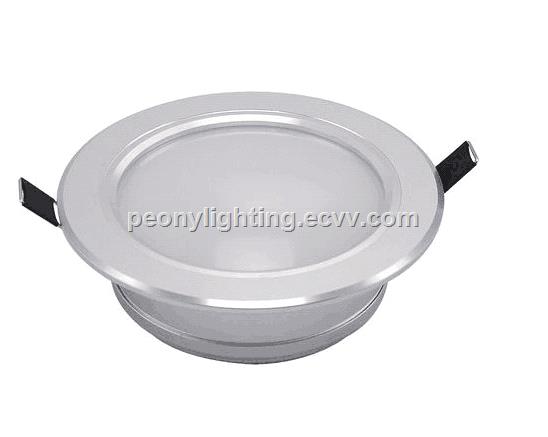

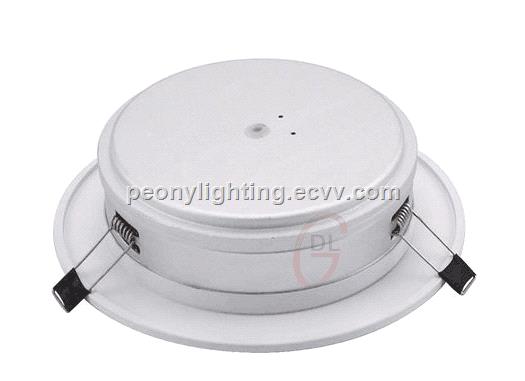

Product Features of led downlight, spotlight downlight,high power led ceilling downlight:
1. High efficacy, Minimal 80lm/W, up to 90lm/W
2. Energy-saving, over 70% compared to incandescent lamps
3. Constant current driver, no strobe, no harmless to eyes and ensure LED lamp to have a long life time
4. Constant light output and even lighting
5. No mercury, environment friendly.
6. No mosquito around the lights compared with tradtional lights
7. No UV or IR radiation, Harmless to human body
8. Detachable power source, convinent for your change
we are specialized in producing led chip ,led driver ,led power supply ,led light ,led bulb ,led spot light ,led down light and led strip lights and outdoor led light of led highbay light,led street light,led flood light and led corn light and led wallwasher and so on ,commerical lighting and indoor ousing led light ,it is good luck to choose us ,u are welcome ,because we are professional and depening on the quality as life.thanks a lot .
Service we supply
1. 3yrs warranty
2. R&D, Lighting Program, OEM, ODM
3. Sourcing service as long as you give us the picture and specificaions
4. Chip available in Epistar, LG,Bridgelux, CREE and so on.
5. All your inquiry and questions will be replied within 12hours.
Model
Power(W)
CCT
Lumen±10%
CRI
Chip
Beam Angle
Material
LAMPSize(mm)
Hole cut(mm)
Voltage
IP grade
PL-TD-3W-033
3W
2700K 3000K
4000k
6000K
270lm
Ra>80
6PCS 5730smd
120°
Aluminum
Φ102*50
Φ70
AC100-240V
50/60Hz
IP44
PL-TD-3W-033S
3W
2700K 3000K
4000k
6000K
270lm
Ra>80
6PCS 5730smd
120°
Aluminum
Φ111*50
Φ85
AC100-240V
50/60Hz
IP44
PL-TD-5W-033
5W
2700K 3000K
4000k
6000K
450lm
Ra>80
10PCS 5730smd
120°
Aluminum
Φ111*50
Φ85
AC100-240V
50/60Hz
IP44
PL-TD-5W-033S
5W
2700K 3000K
4000k
6000K
450lm
Ra>80
10PCS 5730smd
120°
Aluminum
Φ120*50
Φ90
AC100-240V
50/60Hz
IP44
PL-TD-7W-033
7W
2700K 3000K
4000k
6000K
630lm
Ra>80
14PCS 5730smd
120°
Aluminum
Φ120*50
Φ90
AC100-240V
50/60Hz
IP44
PL-TD-7W-033S
7W
2700K 3000K
4000k
6000K
630lm
Ra>80
14PCS 5730smd
120°
Aluminum
Φ147*50
Φ110
AC100-240V
50/60Hz
IP44
PL-TD-9W-033
9W
2700K 3000K
4000k
6000K
810lm
Ra>80
18PCS 5730smd
120°
Aluminum
Φ147*50
Φ110
AC100-240V
50/60Hz
IP44
PL-TD-9W-033S
9W
2700K 3000K
4000k
6000K
810lm
Ra>80
18PCS 5730smd
120°
Aluminum
Φ180*50
Φ145
AC100-240V
50/60Hz
IP44
PL-TD-12W-033
12W
2700K 3000K
4000k
6000K
1080lm
Ra>80
24PCS 5730smd
120°
Aluminum
Φ180*50
Φ145
AC100-240V
50/60Hz
IP44
PL-TD-12W-033S
12W
2700K 3000K
4000k
6000K
1080lm
Ra>80
24PCS 5730smd
120°
Aluminum
Φ192*50
Φ155
AC100-240V
50/60Hz
IP44
PL-TD-15W-033
15W
2700K 3000K
4000k
6000K
1350lm
Ra>80
30PCS 5730smd
120°
Aluminum
Φ192*50
Φ155
AC100-240V
50/60Hz
IP44
PL-TD-18W-033
18W
2700K 3000K
4000k
6000K
1620lm
Ra>80
36PCS 5730smd
120°
Aluminum
Φ234*50
Φ200
AC100-240V
50/60Hz
IP44
