| Item Type: | Downlights |
|---|---|
| Light Source: | LED |
| Brand Name: | Greenough |
| Place of Origin: | China (Mainland) |
| Model Number: | GNH-DL-T-40W-D |
| Certification: | CE,RoHS |
| IP Rating: | IP44 |
| Lamp Body Material: | Aluminum |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| Color Temperature(CCT): | Cool White |
| CRI (Ra>): | 80 |
| Lamp Luminous Efficiency(lm/w): | 75 |
| Lamp Luminous Flux(lm): | 3000LM |
| Lamp Power(W): | 40 |
| Input Voltage(V): | 100-240VAC |
| Warranty(Years): | 3 |
| LED Light Source: | Citizen/Bridgelux/Isolated driver |
| 20W 30W 40W are available: | With Isolated Driver |
Quick Details
Specifications
LED down ceiling light kit is more and more popular, most of customer will choose our LED down light, especial for the driverless Samsung LED down light, our down light are with origial Samsung chips, CREE chips, or Sharp chips. Our top selling LED down light kit are Samsung LED down light kit, Cree LED down light kit, Sharp LED down light kit, Bridgelux LED down light kit
Specifications for New Recessed Citizen/Bridgelux COB LED Commercial Down Light with Special heatsink (Sunflower or Honeycomb Radiator) and Isolated driver in cut hole 152mm 20W 30W 40W*3W 5W 7W 10W 15W are available
*20W 30W 40W are available
*With special model heat sink-Sunflower or Honeycomb
*Citizen/Bridgelux COB LED Chip and Isolated driver, the lights are in cut hole 125mm
*Aluminum Alloy housing by die-casting for good heat dissipation
*Easy installation: use great powerful springs, safe and durable
*PMMA lens diffuser, 15°/24°/40° as options
*Emitting angle is adjustable; No flicker, soft and uniform light
*Long lifetime and high performance
*Comply with CE and Rohs standard.
|
Model |
GNH-DL-T-20W-D |
GNH-DL-T-30W-D |
GNH-DL-T-40W-D |
|
Power |
20W |
30W |
40W |
|
Dimension |
φ138*H70 |
φ138*H80 |
φ138*H100 |
|
Cut hole |
Φ125mm |
Φ125mm |
Φ125mm |
|
LED Source /Driver |
COB/Isolated driver |
COB/Isolated driver |
COB/Isolated driver |
|
Voltage |
AC100-240V |
AC100-240V |
AC100-240V |
|
Color |
White |
White |
White |
|
Color temperature |
3000-6000K |
3000-6000K |
3000-6000K |
|
Luminous flux |
1600Lm |
2200Lm |
3000Lm |
|
CRI |
≥80 |
≥80 |
≥80 |
|
Beam Angel |
12°/24°/40° |
12°/24°/40° |
12°/24°/40° |

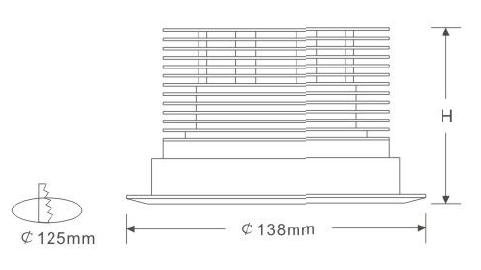

Size for GNH-DL-T-20W-30W-40W-D new style recessed led down light with special model heat sink:

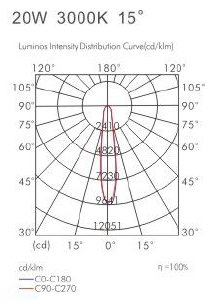

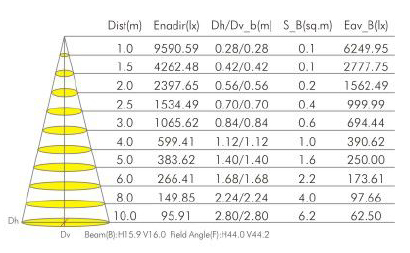

Brightness Contrast for GNH-DL-T-20W-30W-40W-D new style led down light with special model heat sink:
What are the main uses of an LED Down light from Greenough?
LED downlights are often used in kitchen, living room and bathroom areas and are recessed for a clean, contemporary finish, giving an even light without shadow.
Housed directly into the ceiling, most LED downlights are fixed in position however adjustable fittings are available on the market.
