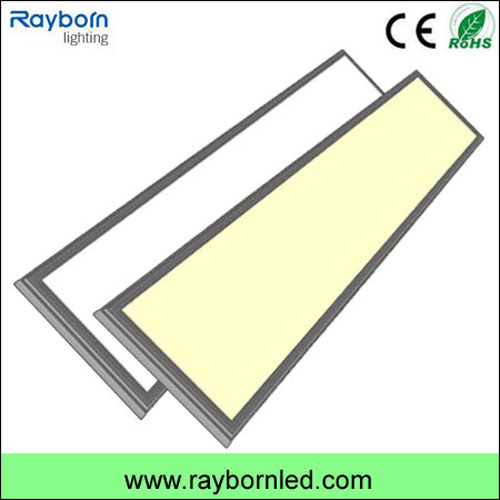

Super Slim High Brightness 1200x300mm Square LED Panel


Item No.: RB-PL-P12030A
Input Voltage: AC 85~265V/ 50-60HZ
LED Power: 36W
LED Quantity: 180PCS SMD2835
Power Factor: >0.95; Power Efficiency: >0.88
LED Luminous Flux Warm White, Nature White, Pure White
LED Panel light Viewing Angle: 120 degree
Luminous Flux: 3260LM(6000K)
Color Rendering Index: Ra 80
IP Grade: IP54
Body Size: 600*600*11.5mm
Material: Aluminium /SPCC/PMMA
Working Life-span: 50000 H
Certificate CE & RoHS &TUV



36W LED Panel Light Features:
1. Energy-efficient, environment-friendly
2. No glare, no noise, no UV
3. Ultra slim and fashionable design
4. Maintenance free, easy installation
5. No maintenance for the life of unit, apart from cleaning
6. Remote-control dimming available
7. Solid-state, high shock/vibration resistant
8. No fluorescent flickering
9. No danger of broken glass
10. Long lifetime, 50, 000+hrs(5+years)

Dimension: 120mm * 300mm	Power: 36W
Input Voltage: AC85-265V	LED Type: 4014 High Lumen
LED quantity: 180pcs  0.2w/pcs 0.2w/pcs	View angle: 120Viewing angle
CCT:3000/4000/5000/6000K	CRI: 80%
Luminous flux:  3600 lm	Power Factor: >0.92
Life time:  >50,000 hrs	Working  Environment:Indoor
Housing Material: Aluminum Alloy+PC
Working Temperature: -20oC ~ +50oC
Storage Temperature: -20oC ~ +60oC

Flat LED Panel Lightin Applications:
1. Commercial and exhibition locations
2. Hotel, conference room
3. Factory, office, house
4. Airport, metro station
5. School, hospital and other public places
6. Place that require energy-efficiency and high color rendering index




LED Office Lighting Competitive Advantage:
1.50% energy saving same watts compare with CFL traditional lights.
2. No glare, no UV, no pollution. Friendly to environment, healthful for man
3. Low luminous decay. 3% luminous decay after 2000hrs
4. Wide range voltage 85-265VAC
5. No need in cooling. It is the good integrated heating dissipation and aesthetic design.
6. Dimmable can be option. Color changing, to be red, green, blue, yellow etc. Or luminance to be more brighter just as you like.
7. Saving energy saving the earth and saving your money


Embedded installation of LED panel light
1. Taken the ceiling and LED panel light turn 45 degrees, and put it above the ceiling, pls do not force squeezing or through the ceiling
2. Please placed panel lamp handled with care, ensure the products shine with the best effect
3. Choose embedded installation LED panel lamp, first consideration that wether the panel light and the size of the ceiling corresponds


Suspension installation of LED panel light
1. Pls put a soft mat on the floor before Installing corner fixing parts, lest scratches or damaged panel
2. Please placed panel lamp handled with care, ensure the products shine with the best effect
3. Lock the screw, pls not use greatly forcibly, lest crush the panel lamp
1. the first open four 5mm holes on the ceiling
2. Make the glue plug put into open good holes
3. Screw through fixed cap, locked in plug hole


FAQ

Q1.What is the main business of Rayborn Lighting?

A: Rayborn focus on LED home lighting products from 2008 till now. Rayborn is the top

Suppliers of LED indoor and outdoor lighting fixtures. Especially focus on LED panel light,LED

Tube light, LED downlight and so on. Outdoor lighting focus on LED floodlight, LED street light,etc.



Q2. What is the warranty of Outdoor LED Lighting?

A: Rayborn outdoor LED Lighting offer 3~5 years warranty depending on different types.



Q3. What is the payment term?

A: for sample order, we can accept T/T, Paypal, West Union, 100% in advance. for bulk

Order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order. L/C is negotiable.



Q4. Can I add my logo on the LED Lighting label?

A: Yes,our LED lighting can print customer's logo on inner and outer carton.



Q5. What kind of certificates Rayborn Got?

A: Rayborn LED light got CE,EMC,LVD,ROHS,FCC,C-tik,UL,SAA Certification.

Any questions or need more information, please do not hesitate to cntact me. Welcome you feedback at any time!
