| Item Type: | High Bay Lights |
|---|---|
| Light Source: | LED |
| Model Number: | GNH-UFO-HBL-100W |
| Brand Name: | Greenough |
| Place of Origin: | China (Mainland) |
| Certification: | CE,RoHS |
| IP Rating: | IP65 |
| Lamp Body Material: | Aluminum |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| Color Temperature(CCT): | Cool White |
| CRI (Ra>): | 75 |
| Lamp Luminous Efficiency(lm/w): | 100 |
| Lamp Luminous Flux(lm): | 10000LM |
| Lamp Power(W): | 100 |
| Input Voltage(V): | 85-265VAC |
| Warranty(Years): | 5 |
| LED Light Source: | COB Chip |
| Base: HOOK or Bracket: | Project Proposal: Free Project Proposal |
Quick Details
Specifications

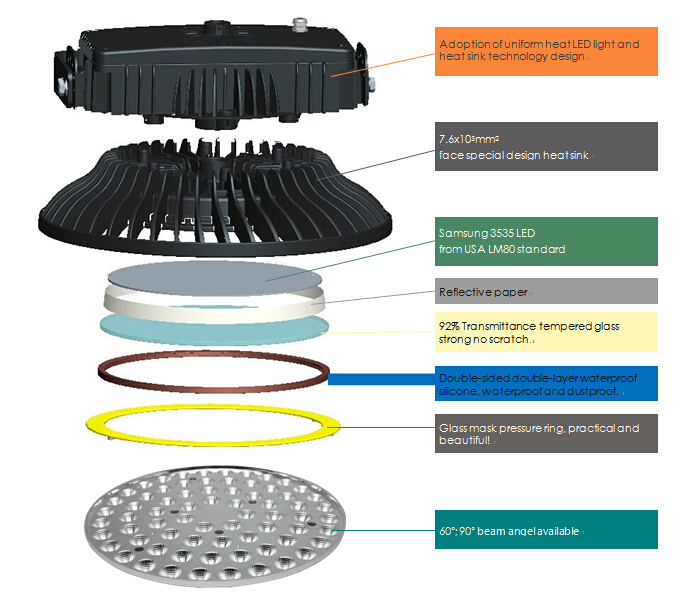

UFO LED high bay, designed for industrial lighting. Adopting the newest LED lighting technology, longer lifespan,
lower maintenance cost, higher efficiency. Unique designed optical light distribution can focus the light to the lighting area,
improving the luminaire efficiency, taking the place of traditional HID lamps. They are with IP 65 protection level.
Specification for UFO led high bay light:
|
Part Number |
GNH-UFO-HBL-100W |
GNH-UFO-HBL-150W |
GNH-UFO-HBL-200W |
GNH-UFO-HBL-240W |
|
Power (W) |
100W |
150W |
200W |
240W |
|
Lumem (lm) |
100lm/w |
100lm/w |
100lm/w |
100lm/w |
|
Input voltage(V) |
AC 85 V ~265V |
AC 85 V ~265V |
AC 85 V ~265V |
AC 85 V ~265V |
|
LED type |
Philip 3030 |
Philip 3030 |
Philip 3030 |
Philip 3030 |
|
Color index (CRI) |
≥80 |
≥80 |
≥80 |
≥80 |
|
Color temperature |
3000-6000k |
3000-6000k |
3000-6000k |
3000-6000k |
|
Beam angle |
110°,120° |
110°,120° |
110°,120° |
110°,120° |
|
Material |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
|
Dimension |
Φ360*L243mm |
Φ360*L243mm |
Φ360*L283mm |
Φ460*L283mm |
|
IP grade |
IP65 |
IP65 |
IP65 |
IP65 |
Wire and installation steps for UFO led high bay light:

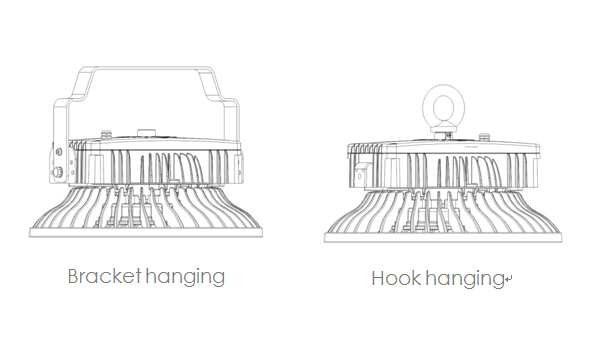

Hook hanging installation steps:
1. Cut off power before operation.
2. Knowing the inside diameter of the luminaires then Choose suitable hook for the luminaires.
3. Fix the hook before installation and make the it can bear over 3 times weight of the lamp
4. Connect the lamp with hook and make it is safe.

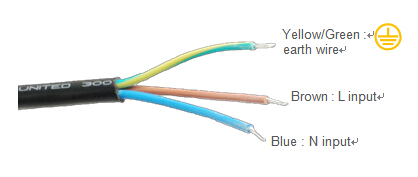

5. Connect the power wire: Brown," L" , connect to LIVE; Blue, " N" , connect to NEUTRAL; Lime-green, connect to EARTH/GROUND
6. Light up the luminaires!
Bracket hanging installation steps:
1. Cut off power before installation.
2. Measure the hole size on the holder, choose suitable screw.
3. Fix the screw at the place where luminaires will be installed and it should can bear over 3 times the weight of the luminaires
4. Screw up the screws at both sides of holder, then connect the
hold hole with screws, tighten it up.
5. Connect the power wire: Brown," L" , connect to LIVE; Blue, " N" , connect to NEUTRAL; Lime-green, connect to EARTH/GROUND
6. Light up the luminaires !
Application for Greenough led high bay light:
LED High Bay Light adopts High quality LED chips source with longer lifespan and low lighting decay LED High Bay Light Application:
Suitable for Warehouse, Workshops, factories, toll stations, gas stations, supermarkets, exhibition halls, gymnasium, etc...and some other places where need industrial lighting.
