| Machine Type: | Abrator |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Material: | Metal / Coil |
| Industry Used: | Cleaning Machine |
| Cleaning Type: | shot blasting |
| Cleaning Process: | projectile |
| Use: | Burnishing,Descaling / Stripping |
| Fuel: | Electric |
| Feature: | Critical Cleaning / Residue Free,Non-Ionic,Non-Toxic,rust removalsurface polishing,cleaning, |
| Model Number: | QG37 series |
| Brand Name: | Qinggong |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Blast chamber: | Replaceable Mn65 steel liner |
| Impeller: | High chromium wear resistant cast iron |
| Shot blast machine type: | Hook type/overhead rail/roller conveyor/pass-through/rotary table |
| Machine key parts: | Omron/Scheider/ABB/NSK |
| Omron/Scheider/ABB/NSK blast wheel: | The best ratio of flow*launch speed of shot |
| Dust collector: | With an exclusive descendent flow system |
| Abrasive seperator: | Equipped with a vibratory sieve |
| Machine installation: | Non-pit |
| Equipment assembly: | European standards . |
Quick Details
Specifications
Specifications:
| Item Model | QG376 | QG376B | QG378C | QG3710 | ||||
| Max.weight of cleaning(kg) | 500 | 600 | 800 | 1000 | ||||
| Max.overall dimension of worpiece(mm) | Φ600*1200 | Φ700*1200 | Φ1000*1600 | Φ1200*1800 | ||||
| Abrasive flow rate(kg/min) | 2*200 | 2*200 | 2*250 | 2*250 | ||||
| Lifting capacity(t/h) | 24 | 24 | 30 | 30 | ||||
| Separating capacity(t/h) | 24 | 24 | 30 | 30 | ||||
| Approx.total power(kg) | 22.5 | 23.5 | 39.65 | 47.5 | ||||
| Approx.Ventilation capacity(m3/h) | 4000 | 4000 | 5000 | 5000 | ||||
| Item Model | QG3720 | QG3730 | QG3750 | QG37100 | ||||
| Max.weight of cleaning(kg) | 2000 | 3000 | 5000 | 10000 | ||||
| Max.overall dimension of worpiece(mm) | Φ1400*2200 | Φ1600*2300 | Φ1800*2500 | Φ3000*3000 | ||||
| Abrasive flow rate(kg/min) | 3*250 | 3*250 | 4*250 | 5*250 | ||||
| Lifting capacity(t/h) | 45 | 45 | 60 | 75 | ||||
| Separating capacity(t/h) | 45 | 45 | 60 | 75 | ||||
| Approx.total power(kg) | 56.2 | 65.45 | 85.45 | 97.65 | ||||
| Approx.Ventilation capacity(m3/h) | 9000 | 11000 | 14000 | 16000 | ||||
Advantage:
a.High quality surface appearance
b.High productivity efficiency
c.Low cost
d.Environmental friendly
e.No pit
f.Compact structure
Introduction:

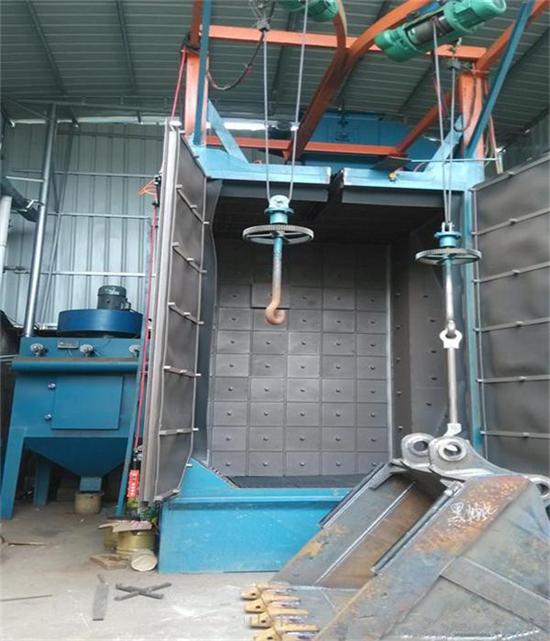

QG37 series hook type shot blast machine is mainly used for surface cleaning and strengthening of steel structural parts,casting,aluminun alloy parts and other spare parts.It is widely used in foundry,forging,mechanical and steel particular,QG378 series features no pit,double hook without rail exchanging,compact structure,and high productivity.
Packaging: pallet and wooden box
Delivery time : within 20 work days after confirmed deposit
