| Machine Type: | Abrator |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Material: | Metal / Coil |
| Industry Used: | cleaning machine |
| Cleaning Type: | shot blasting |
| Cleaning Process: | projectile |
| Use: | Burnishing,Descaling / Stripping |
| Certification: | CE |
| Fuel: | Electric |
| Feature: | Non-Ionic,Non-Toxic,Rust / Corrosion Inhibitor,Sudsing / Foaming,surface cleaningrust remove, |
| Model Number: | QG32 series |
| Brand Name: | Qinggong |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Blast chamber: | Replaceable Mn65 steel liner |
| Impeller: | High chromium wear resistant cast iron |
| Shot blast machine type: | Hook type/overhead rail/roller conveyor/pass-through/rotary table |
| Machine key parts: | Omron/Scheider/ABB/NSK |
| Omron/Scheider/ABB/NSK blast wheel: | The best ratio of flow*launch speed of shot |
| Dust collector: | With an exclusive descendent flow system |
| Abrasive seperator: | Equipped with a vibratory sieve |
| Machine installation: | Non-pit |
| Equipment assembly: | Executive standard: european standards . |
Quick Details
Specifications
Specifications:
| Item Model | QG326C | QG3210 | QGR3210 | ||||||
| Productivity | 0.6-1.2 | 1.5-2.5 | 3.0-5.0 | ||||||
| Feeding amount | 200 | 600 | 800 | ||||||
| Maximum weight of single piece(kg) | 10 | 30 | 30 | ||||||
| Dinameter of disk | 650 | 1000 | 1000 | ||||||
| Effective volume(m3) | 0.15 | 0.3 | 0.4 | ||||||
| Abrasive flow rate(kg/min) | 125 | 250 | 250 | ||||||
| Ventilation capacity(m3/h) | 2200 | 5000 | 6000 | ||||||
| Power consumption(kw) | 12.6 | 24.3 | 32.6 | ||||||
| Out line dimension(mm) | 3681*1650*5800 | 3972*2600*4768 | 3644*2926*5856 | ||||||
Advantage:
a.High quality surface appearance
b.High productivity efficiency
c.Low cost
d.Environmental friendly
e.Can be a single machine or a part of line
Introduction:

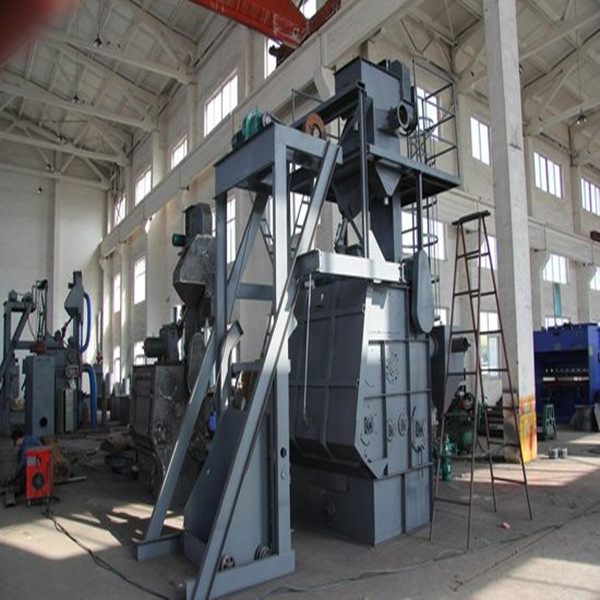

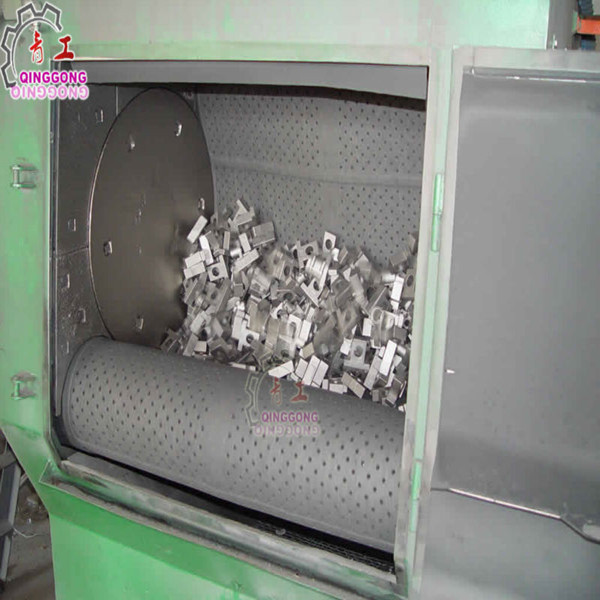

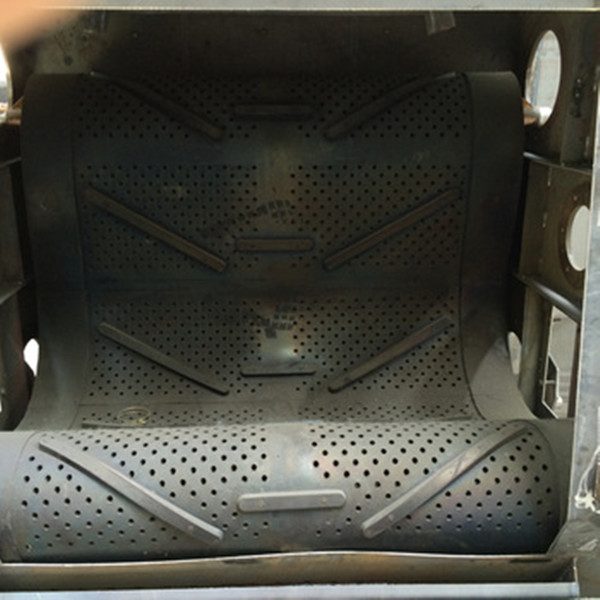

This machine adopts the endless rubber apron to form a special barrel,to make the work pieces tumble continuously during shot blasting process.It is mainly used in forging work pieces and metal work pieces.The machine can be used not only as a single machine ,but also as a part of line.
Packaging: pallet and wooden box
Delivery time : within 30 work days after confirmed deposit
