| Output: | Analog Sensor |
|---|---|
| Theory: | Resistance Sensor |
| Usage: | Pressure Sensor |
| Brand Name: | INNOVATION |
| material: | Alloy Steel |
| Model Number: | IN-S011 |
| Place of Origin: | China (Mainland) |
| Type: | S type load cell |
| Material: | alloy steel Load cell or stainless steel |
| output: | 3mv/v load cell |
| capacity: | 100kg 300kg 750kg 1000kg load cell |
| Application: | Crane scale,test machine, |
Quick Details
Specifications

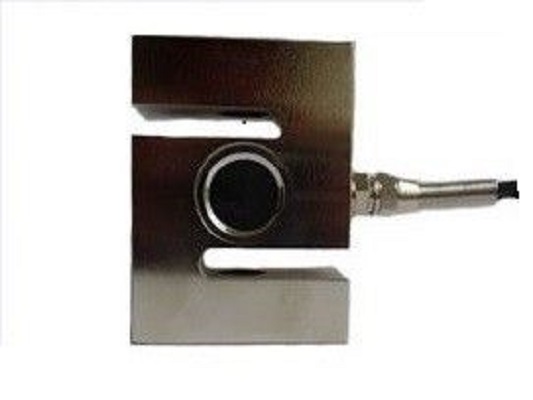

100kg 300kg 750kg 1000kg model INS011 alloy steel stainless steel 3mv S type Load cell
Cable color code :Input: Red(+) Black(-) Output: Green(+) White(-)
Cable color code :Input: Red(+) Black(-) Output: Green(+) White(-)
Load Cell Technical specifications |
|
Load Cell Technical specifications | ||
Rated output(mv/v) |
3mV/V |
Rated capacity |
100--1000 kg | |
Zero balance |
±1.0% FS |
Comprehensive precision |
±0.03%FS | |
Input Risistance |
350±2 |
Nonlinearity |
±0.03%FS | |
Output Risistance |
380±10 |
Repeatability |
±0.02%FS | |
Insulation Risistance |
≥5000MΩ |
Hysteresis |
±0.02%FS | |
Recommendation excitation voltage |
10V(DC) |
Creep(30minutes) |
±0.02%FS | |
Max excitation voltage |
15V(DC) |
Returning to zero |
±0.02%FS | |
Temperature characterisitic |
Physical characteristic | |||
Compensated temperature range |
-10℃-70℃ |
Safe loading range |
120%FS | |
Operating temperature |
-10℃-70℃ |
Limiting load range |
150%FS | |
Temperature effect on zero |
±0.02%FS/10℃ |
Protection rank |
IP65 | |
Temperature effect on output |
±0.02%FS/10℃ |
Cable lenth |
3m | |
