| After-sales Service Provided: | No overseas service provided |
|---|---|
| Warranty: | 1 year |
| Certification: | CE |
| Weight: | 500kg |
| Dimension(L*W*H): | 175*120*200mm |
| Power(W): | 4 |
| Voltage: | 380V |
| Model Number: | AGS-40C |
| Brand Name: | OCEPO |
| Place of Origin: | China (Mainland) |
| Production Capacity: | 10000000000000sets |
| Condition: | New |
| Brand: | ocepo |
| color: | any color |
| use: | construction |
Quick Details
Specifications

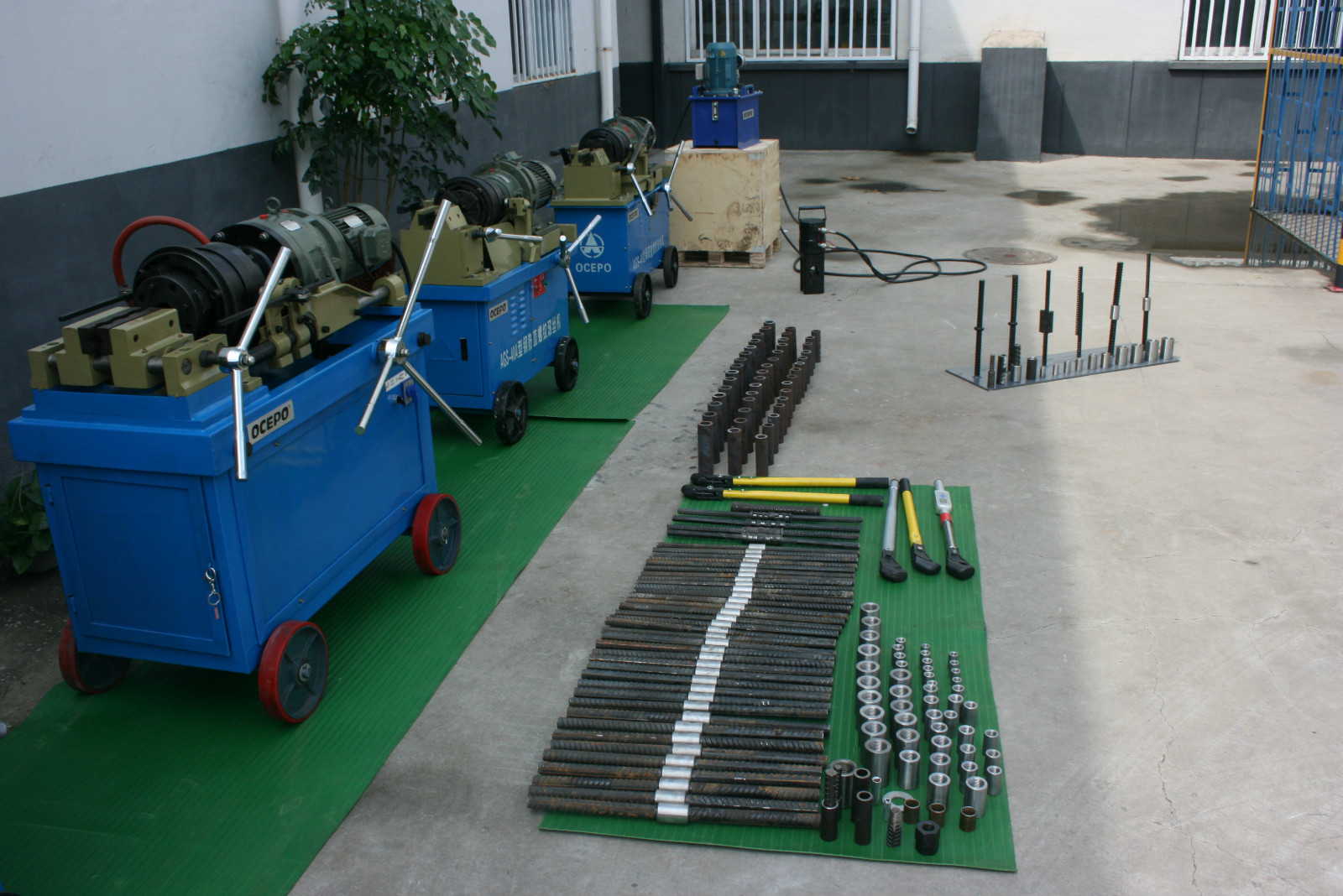

The machine is used to peel ribs and roll threads on rebar end.
1. Roll thread not cut thread, so could protect the highest tensile strength of parent metal. It meets requirements in JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.
2. Easy to operate. Automatic opening-closing mechanism for rib peeling device, need only 30 seconds to finish a threaded end.
3. Peel ribs and roll threads by the same machine, so could save labor and improve productivity.
4. Widely used. Be able to process rebar diameter 16-40mm
1. Roll thread not cut thread, so could protect the highest tensile strength of parent metal. It meets requirements in JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.
2. Easy to operate. Automatic opening-closing mechanism for rib peeling device, need only 30 seconds to finish a threaded end.
3. Peel ribs and roll threads by the same machine, so could save labor and improve productivity.
4. Widely used. Be able to process rebar diameter 16-40mm
5. Environment-friendly, safe, no environment and weather restrictions.
6. Economic, low investment for the equipment
|
Model |
AGS-40C |
||
|
Threading Roller Diameter |
78.2 mm |
70 mm |
59 mm |
|
Thread Pitch |
2.5 mm |
3 mm |
3 mm |
|
Rebar Diameter(mm) |
Φ16-Φ22 |
Φ25-Φ32 |
Φ36-Φ40 |
|
Main Motor Power |
4 kw |
||
|
Working Current |
380V 50HZ |
||
|
Spindle Speed |
75 r/min |
||
|
Max. Thread Length |
Right thread: 120 mm |
||
|
Net Weight |
600 kg |
||
