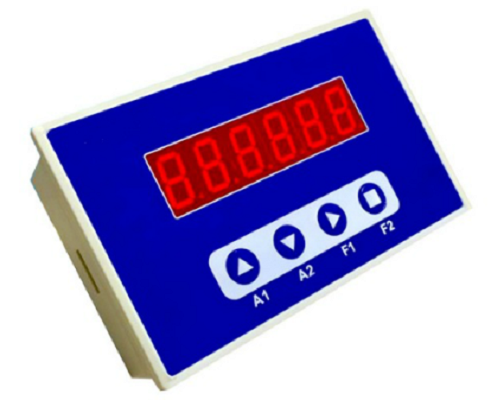

Weighing indicator IN-420PLUS

Interchangeable with

INDICATOR of ATRAX 420 PLUS



FUNCTION:

? Auto zero scale

? Auto zero tracking
? Normal weighing
? Peak
? Counting
? Zero scale
? Tare
? Gross/Net
? RS-232C
? RS-485
? Print interface (PS805 Printer)

 has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles per second and drives up to eight 350Ω or sixteen 700Ω load cells. with a SS304 stainless steel wash down enclosure

Is ideal for the food industry, agricultural industry, and industrial applications and COMPLY with STANDARD of  NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000.

• COMPLY with STANDARD of NTEP III/IIIL, 10 000
• COMPLY with STANDARD of  Measurement Canada III, 10 000; III HD 20 000
• Material: Stainless steel SS304
• IP Rating: IP66
• LED 6-digit display
• Power Supply: AC adaptor, 100-240VAC, 50-60Hz
• Parameter and calibration settings are performed on the front panel
• LABRADOR computer software for parameter and calibration settings
• Units of Measurement: kg, lb
• Improper operation and fault indication
• Two way relay signal output
• Equipped with RS-232 and RS-485 connecting ports
• Print functions with programmable print format
• Built-in clock

• Enclosure Material	Stainless steel SS304
  Units of Measurement	Kg, lb
  Working Humidity	≤90% RH
  Working Temperature	-10°C to 40°C/14°F to 104°F
  Dimensions (mm)	226mm x 71mm x 161mm
  Dimensions (in)	8.9in x 3.7in x 6.34in
  Display Type	LCD
  Display Digits	6 digits
  Digit Height	25.4mm/1in
  Display Dimensions	143mm x 41mm/5.6in x 1.6in
  Power Supply	AC adaptor, 100-240VAC, 50-60Hz
  IP Rating	IP66

Division	1, 2, 5, 10
Tare Range	100% of Cn
Maximum Number of Load Cells	8×350Ω or 16×700Ω
Maximum Power Consumption	6VA
Excitation Voltage	5VDC ± 5%
Fusible Link Fuse (slow blow)	1A
Communications Interface	RS-232C, RS-485
Print Interface	Serial interface
