| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | CE |
| Weight: | 100 |
| Brand Name: | Acore |
| Condition: | New |
| Warranty: | 1 year |
| Dimension(L*W*H): | option |
| Power(W): | 1-10kw |
| Model Number: | PFC |
| Place of Origin: | China (Mainland) |
| Type: | plate press |
Quick Details
Specifications
Application:

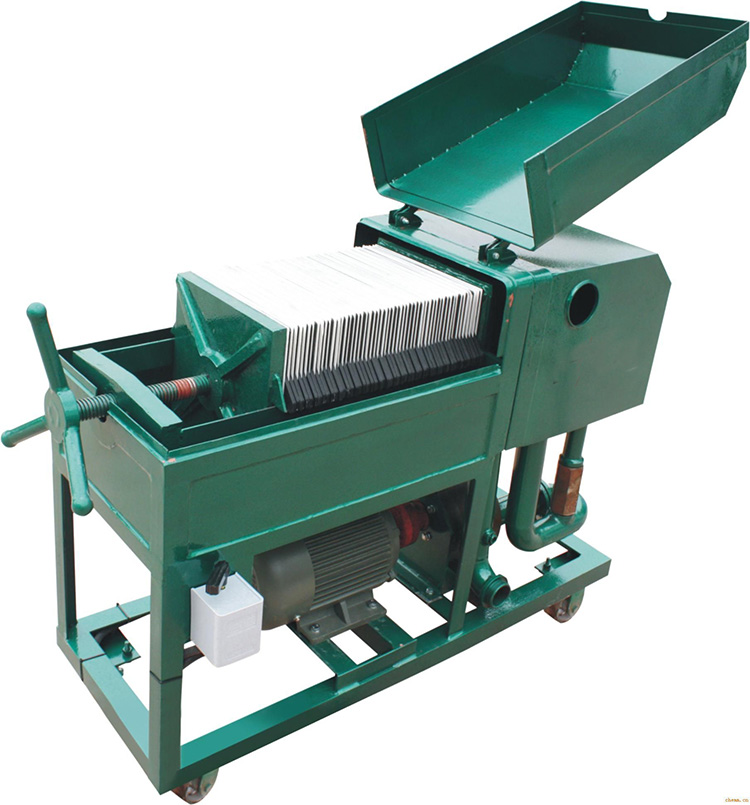

PFC-Series plate pressure oil filter machine is designed for power plants, industrial and mining substations, lubricants warehouse, tractor station, petroleum, chemical, cement, metallurgy etc. It can purify transformer oil, turbine oil, hydraulic oils, gear oils, lubricating oil and remove water, mechanical impurities.PFCPlate pressure oil purifier is consisted of filter bed, plates, oil pump, motor and filtering papers. the filter bed and plates consist of a filter house, between the plates, the papers as filtering media. It also can purify fuel oil, cooking oil by using special materials and motor. PR-series pressure oil filter machine has a simple structure, convenient filter replacement, high filtration precision, easy operation, low cost.
Technical Parameters:
Index name |
Unit |
PFC30 |
PFC50 |
PFC100 |
PFC125 |
PFC150 |
PFC200 |
PFC300 | |
Flow rate |
L/H |
1800 |
3000 |
6000 |
7500 |
9000 |
12000 |
18000 | |
Working pressure |
MPa |
0-0.3 | |||||||
Filtering size |
≥ m 2 |
0.48 |
0.6 |
1.35 |
1.55 |
2 |
2.5 |
3.1 | |
Plate dimension |
mm |
180×180 |
280×280 | ||||||
Pressing way |
Manual | ||||||||
Filter ring quantity |
14 |
18 |
39 |
47 |
24 |
29 |
34 | ||
Filter plate quantity |
15 |
19 |
40 |
48 |
25 |
30 |
35 | ||
Power |
KW |
1.1 |
2.2 |
3 |
5.5 | ||||
Inlet calibre |
1 |
1 1/4 |
2 1/2 | ||||||
Outlet calibre |
3/4 |
1 1/4 |
2 1/2 | ||||||
Dimension |
L |
mm |
800 |
900 1000 |
1100 |
1200 | |||
W |
mm |
300 |
440 | ||||||
H |
mm |
720 |
840 |
1000 | |||||
Filter paper |
mm |
180×180 |
280×280 | ||||||
Weight |
kg |
50 |
55 |
85 |
110 |
150 |
175 |
190 | |
Particles size |
≤ 1-3 μm | ||||||||
