STANDARD DESIGN

BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009

Cabin structure

the internal dimension

7000X4000X2800mm (L×W×H)

the external Dimension

7130X5780X3810mm(L×W×H)

Base

Base design

Full grid; Basement(H):350mm

Carrying Capacity of the grid

900 kg/wheel

Filter area

28m2

Drive-in-ramp

X3; 2000X1030X320mm, diamond Structure

Grid Description

997X756mm, 40X3mm,
Pressed steel grating grille

Plenum height

600mm

Wall panel

Wall Panel

60mm wall Panel:heat-resistant rock wool

Top material

50mm wall Panel:heat-resistant rock wool

Material Edging

1.2mm Galvanized plate bending forming

Door

Entrance door

3200 X 2700 mm (W X H); 2 + 1 structure;
Containing frame, filling heat-resistant EPS

Working door

800×2000 mm (W×H);Frame structure
with safety glass observation window

Lighting

Side lighting

8 sets of Boxes, each 2X58W, 928W total

Ceiling Lighting

8 sets of Boxes, each 4X58W,1856W total

Lighting Description

Protection Grade IP55, CE certified electronic
Ballasts, OSRAM lamp

Brightness

>1500Lux

Filtration system

Pre-filter

G3 grade Pre-filter plate filter

Ceiling filter

F5 grade Filter cotton, Model SP-600G

Bottom paint Mist-collecting

G2 grade fiberglass Paint-resistance filters

Exhaust filter

Fiberglass Paint-resistance filters

Inlet outlet system

Fan

Direct-type Turbine fan

Fan power and Motor

11KW,970 rpm, 380 V, 50 Hz,Siemens motor

Parameter Inlet

35000 m3/h, 650pa

Empty loaded

+/- 0.32m/s

Noise

<78 db

Heating system

Heat exchanger Material

Stainless Steel 1Gr18Ni9Ti(SUS304)

Heat power

315KW

Temperature Capability

20° C (from -10°C to 10°C under painting state)

the Max Working Temp.

80°C

Heating time

3-5 minutes (from 20°C to 60°C under baking state)

Model diesel Burner

RL34-2

Control system

Features

1. Frequency Power mode
2. Fast drying water-based paint

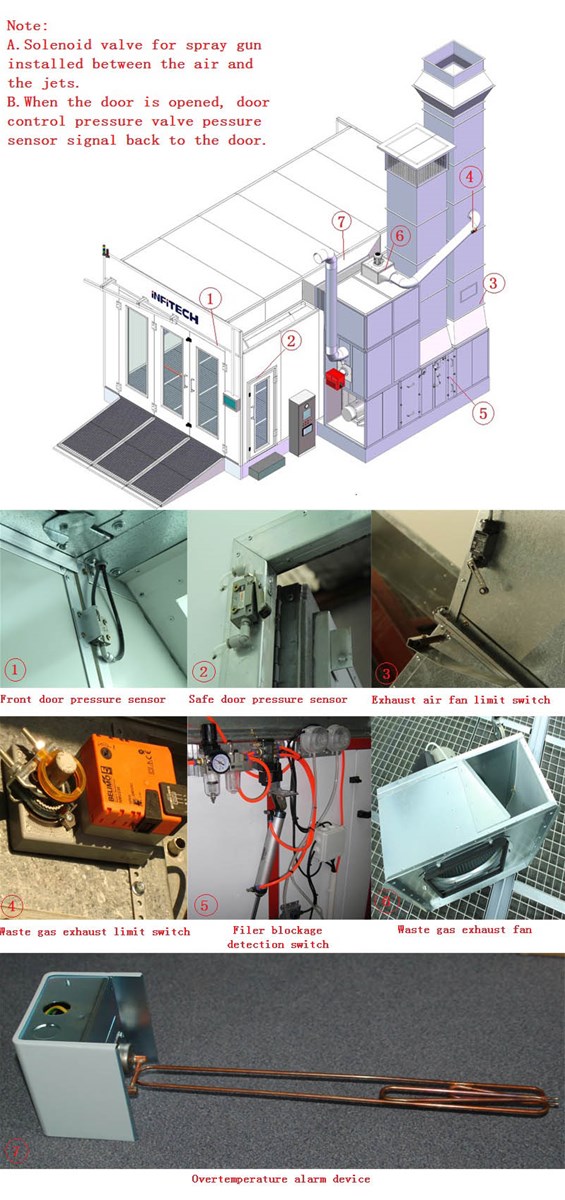

3. Filter monitoring
4. Visual man-machine exchange interface
5. Programmable Intelligent Control
6. Self-diagnosis fault

Pipeline

Straight:4pcs; Rain hat:1pc; Reducers:1pc

Special item

Rated power: 26KW
