| Place of Origin: | China (Mainland) |
|---|---|
| Type: | Electric |
| Use: | Standard Battery |
| Model Number: | XSG1683750 |
| Brand Name: | XinsuGlobal |
| Product name: | 16.8v 4a charger |
| Output Type: | DC single with cable |
| Output: | 16.8V, 4A |
| LED indicator: | Red-charging, Green-finished |
| Charge Mode: | Three-stage mode CC~CV |
| Usage: | For 14.8V li-ion battery |
| Color: | Black |
| Dimensions: | 116mm*52mm*34mm |
| Warranty: | 3 Years |
| Certificates: | UL cUL FCC PSE PSB CE GS LVD SAA RCM C-tick CCC |
Quick Details
Specifications

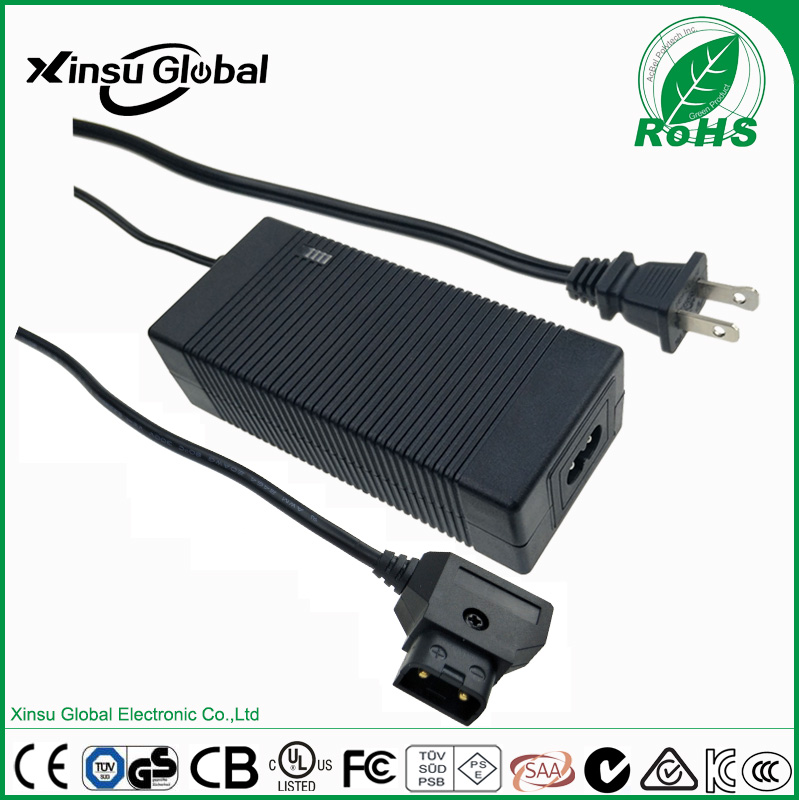

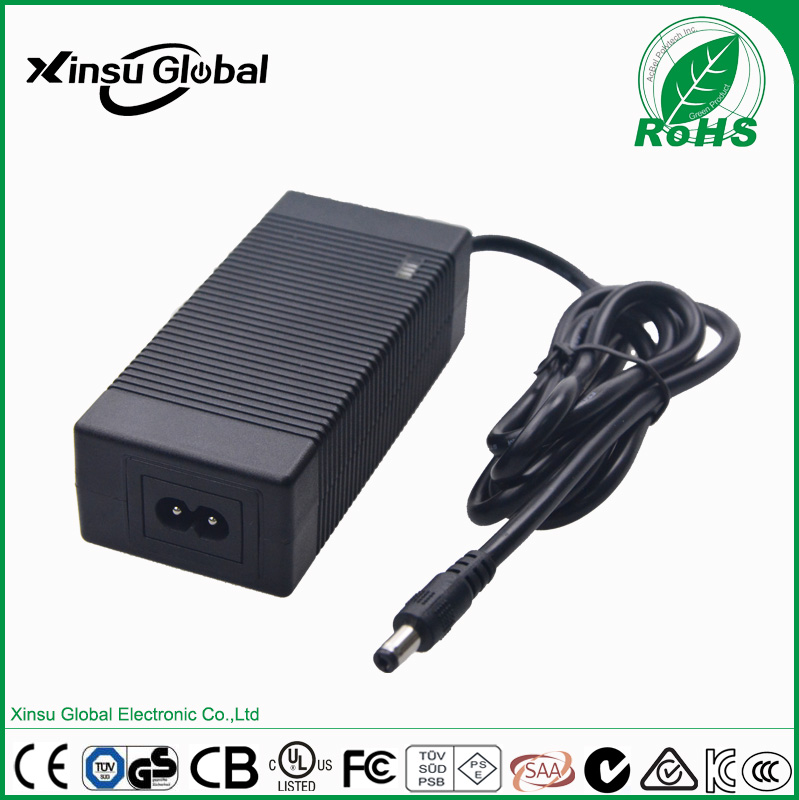

CC~CV mode 16.8v 4a li-ion battery charger for UAV Drone battery Input 100-240VAC, 50/60HZ Input inlet IEC-320-C6, IEC-320-C8, IEC-320-C14 Output 16.8VDC, 4A Output plug Customized Efficiency ≥87% No Load Power Consumption ≤0.5W Protection Polarity protection, OVP, OCP, SCP Charge Mode CC~CV LED Charging status: Red/Charging;Green/Finished HIPOT 3KVAC,5mA,60s MTBF 50,000HRS Operating Temperature -20℃~ +45℃ Storage Temperature -30℃~ +70℃ Dimension 116mm*52mm*34mm NetWeight 0.25KG/PC Package White Box,50pcs/CTN MOQ 200pcs Lead Time Sample:5days,Mass production:15-20days Safety Standards UL60950-1, CSA C22.2, IEC60950-1, as/NZS60950, GB4943, EN60950, Certificates UL,cUL,FCC,PSE,CCC,CE,CB,TUV/GS,LVD,EMC,KC,RCM,SAA,C-Tick,PSB Energy Consumption DOE:VI, Erp, Nrcan, MEPS Environmental Protection RoHS, REACH Markets Worldwide
Product features:
EN55022, EN61000, EN60335, EN61558, J60950
Product recommendation:
MODEL |
INPUT |
OUTPUT | ||
Vac |
W |
Vdc |
mA | |
XSG1680300zz |
100～240 |
5 |
16.8 |
300 |
XSG1680400zz |
100～240 |
6.7 |
16.8 |
400 |
XSG1680500zz |
100～240 |
8.4 |
16.8 |
500 |
XSG1680600zz |
100～240 |
10.1 |
16.8 |
600 |
XSG1680700zz |
100～240 |
11.8 |
16.8 |
700 |
XSG1680800zz |
100～240 |
13.4 |
16.8 |
800 |
XSG1680900zz |
100～240 |
15.1 |
16.8 |
900 |
XSG1681000zz |
100～240 |
16.8 |
16.8 |
1000 |
XSG1681250zz |
100～240 |
20.2 |
16.8 |
1200 |
XSG1681500zz |
100～240 |
25.2 |
16.8 |
1500 |
XSG1681800zz |
100～240 |
30.2 |
16.8 |
1800 |
XSG1682000zz |
100～240 |
33.6 |
16.8 |
2000 |
XSG1682500zz |
100～240 |
42.0 |
16.8 |
2500 |
XSG1683000zz |
100～240 |
50.4 |
16.8 |
3000 |
XSG1683500zz |
100～240 |
58.8 |
16.8 |
3500 |
XSG1683750zz |
100～240 |
63.0 |
16.8 |
3750 |
Variable " xxx" = 036-588, can be 036-588 to denote different output voltage,(3.6V~58.8V).
Variable " yyyy" = 0100-4000,can be 0100-4000 to denote different output current,(100mA~4000mA).
Class II Variable " zz" = Sales markets,like EU for Europe, US for USA, CN for China, JP for Japan,
Blank or WW for worldwide etc;
