| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 2 years |
| Weight: | 260kg |
| Brand Name: | TYE |
| Condition: | New |
| Certification: | CE |
| Dimensions: | 1100 x 1350 x 1400mm |
| Application: | for engraving and cutting many materials,such as,wood,plastic,etc. |
| Milling Cutter Diameter: | 3.175mm,6mm,8mm,10mm |
| Feeding Height: | 150mm |
| Main Axle Rotational Speed: | 24000rpm or 18000rpm |
| Engraving Speed: | 8000mm/min |
| Rated Power: | 1.9KW |
| Model Number: | TYE-6090 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

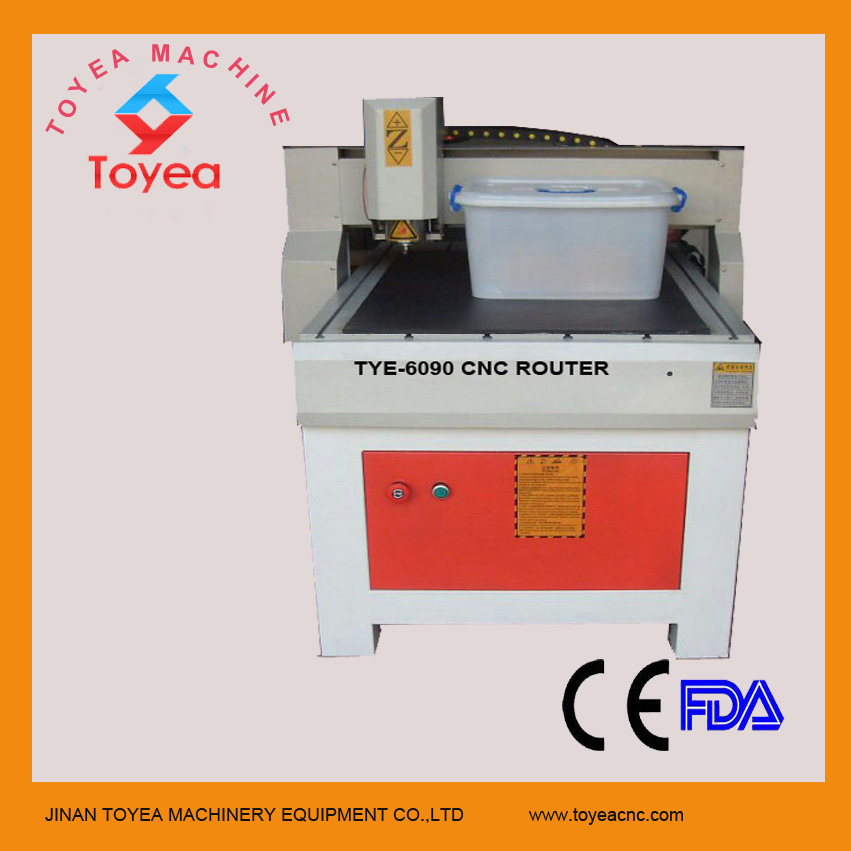

600 X 900mm CNC engraving machine for wood/plastic/metal TYE-6090
Features:
1, Machine body is solid, no deform, with good rigidity, high precision, reliable performance and durable.
2, Adopt imported high-precision ballscrew, run smoothly, ensure high precision of machine.
3, Adopt famous domestic brands water cooling spindle, small noise, Good cutting, ensures batch processing for a long time.
4 overall good structural design, ensures machine have long life time.
5, high performance subdivision driver applications to ensure high speed, high precision.
6, Excellent mechanical and electrical design, various electric parts is well chosen, keep the failure rate to a minimum.
Parameters:
| Machine model | TYE-6090 |
| Body structure | the whole cast aluminum |
| Working area | 600* 900*1 5 0mm |
| Spindle power | 1.5KW water cooling or bigger |
| Spindle rotating | 24000r pm |
| Max travel speed | 8000m / min |
| Max engraving speed | 6000m/min |
| Driving motor | Stepper motor |
| Voltage | AC220V/50HZ or 110V/60HZ |
| Working accuracy | 0.0 1 mm |
| Reposition accuracy | 0.0 3 mm |
| Driving mode | XYZ axis ball screw |
| Running command | G code |
| Controlling system | Ncstudio software ( DSP,Mach 3 optional) |
| Machine size | 1150X 1350X 1400 mm |
