| Type: | Fencing, Trellis & Gates |
|---|---|
| Feature: | Easily Assembled,Waterproof |
| Frame Finishing: | PVC Coated |
| Pressure Treated Wood Type: | Heat Treated |
| Frame Material: | Metal |
| Metal Type: | Steel |
| Model Number: | PF-01 |
| Brand Name: | Runtan |
| Place of Origin: | China (Mainland) |
| Product Name: | Palisade fence |
| Material: | Galvanized iron plate |
| Palisade Fence Surface treatment: | Galvanized / polyester powder coated |
| Palisade Fence Pale head/top type: | triple/single point, round , square etc |
| Palisade Fence Rail /steel angle size: | Angel steel 50x50x4mm |
| Palisade Fence Post: | RSJ 100x55 |
| Palisade Fence Fitting: | M8 M12 shear off bolts |
| Palisade Fence Color: | Black ,blue ,green ,white ,red etc |
| Panel Size: | 2.75m(width),1.5m-3.6m high |
| Certificate: | ISO 9001,CE,SGS certificate |
Quick Details
Specifications
UK BS1722 Standard Hot Dip Galvanized / Powder Coated Steel Palisade Fence And Fence Gate

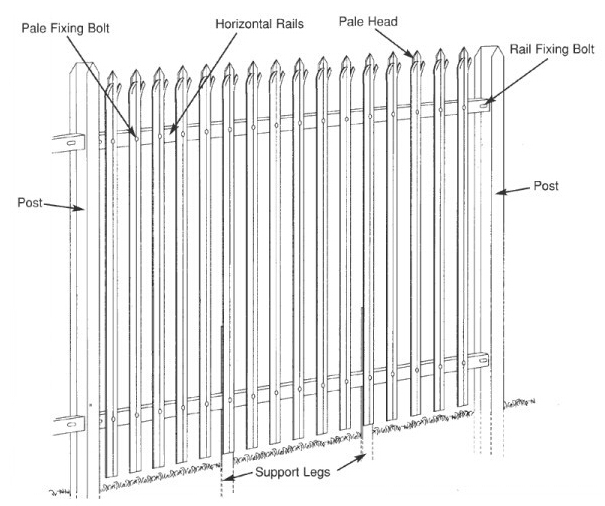

Palisade Fence Drawing
1. Palisade Fence Overview
Palisade fencing is one of the most populat types of security fencing in use today , it is especially popular for schools and industrial sites because its high damage resistance , and the fact that is so difficult to climb .
Available in 'W' section for higher security applications and 'D' section for medium to low security applications. Can be supplied with galvanised finish or galvanised and powder coated green or black and a range of other colours on request

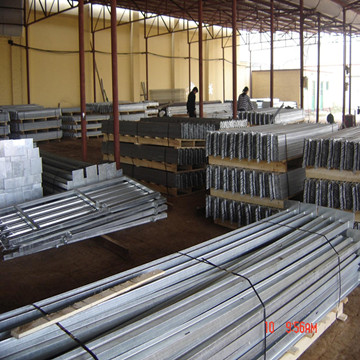

2. Palisade Fence Manufacture
- With a commitment to continuous improvement in our safety and quality standards,Anping Runtan leads the industry.
- With 5 Auto- Weaving Lines and 8 Auto - Cutting Machine ,Daily Output :2000m
- We process palisade fence according to UK BS1722 standard strictly
- Paramount to all of our product designs is safety
- We are ISO 9001:2008 certified
Palisade Fence Drawing
Palisade Fence Specification
|
Product Name |
Palisade fence |
|
Type |
" W" " D " |
|
Material |
Q235 steel plate |
|
Surface treatment |
1)Hot dipped galvanized 2)Electric galvanized+polyester powder coated PS :galvanized zinc thickness :300-450g/m2 |
|
Pale head/top type |
<1>Triple pointed <2> Single pointed <3>Round <4>Square <5>Round and notched |
|
Pale thickness |
1) W type :2-3mm 2)D type :2.5-3.5mm |
|
Pale width |
1)W type :68-72mm 2) D type :60-65mm |
|
Pale spacing |
80mm, 90mm, 100mm etc |
|
Pale No. |
17 PCS Standard |
|
Pale fixing bolt |
M8 bolt |
|
Rail fixing bolt |
M12 bolt |
|
Rail /steel angle size |
50x50x4mm , 50x50x5mm, 50x50x6mm |
|
Fitting |
M8 ,M12 screw and nuts ,connect fishplate |
|
Post |
1)IPE 100X50 2)IPE 120X74 3) SHS 80 4) SHS 60 |
|
Fence Color |
1)Black RAL 9005 2)Green RAL 6005 3) Blue RAL 5010 4)White RAL 9016 5) Red RAL 3020 |
|
Height |
1.5m 1.8m 2m 3m 3.6m etc |
|
Width |
2.75m-3m |
|
Certificate |
ISO 9001,CE,SGS Certificate |

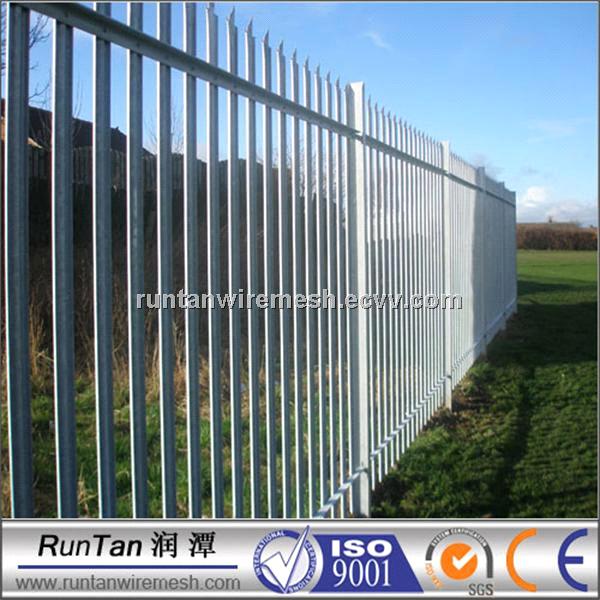

Hot Dip Galvanized Palisade Fence
- Hot Dip Galvanised to BS EN ISO 1461:2009
- Hot Dip Galvanized Zinc coated :300-450g/m2 ,life time is more than 20 years
- Posts are generally 102 x 44 or 100x55 RSJ
- Rails are available in four sizes, 40 x 40, 45 x 45, 50 x 50 and 65 x 50
- 2mm, 3mm, 3.5mm thick 'D' section
- 2mm, 2.5mm thick 'W' section are the standard.

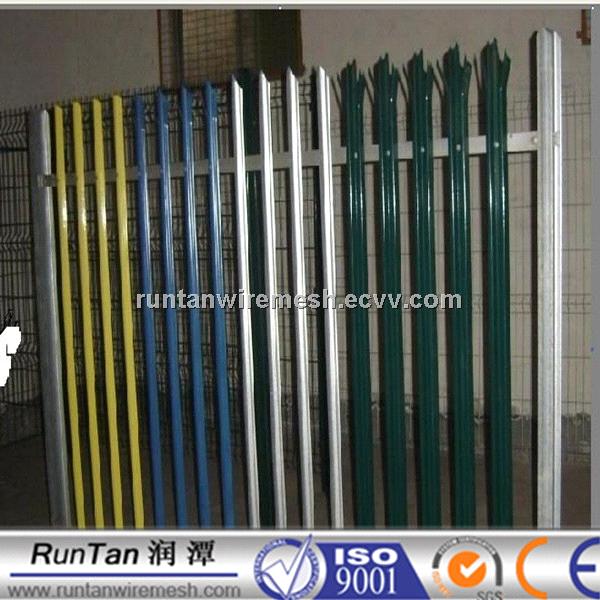

Powder Coated Palisade Fence
- Polyester powder-coated in virtually any colour to order.
- Black RAL 9005 Green RAL 6005 Blue RAL 5010 White RAL 9016 Red RAL 3020
Palisade Fence Gate
Single Leaf, Double Leaf and Sliding Gates are all available made to measure.
Palisade Fence Fittings
- A fish plate passes through a slot in the post and secures the horizontal rail captive in its position.
- High security palisade fencing pales are connected to the horizontals to form the panel and are held securely together by utilising vandal resistant security fasteners.
- To fix the pales to the rails two types of fixings are available.
- Rivets and collars (M6 and M8) for which a fencing rivet gun is required or M8 bolts with permanency fixings, designed to snap off during erection for a secure fixing.
Palisade Fence Application
- Utilities
- Airports
- Perimeter -Medium/High Security
- Retails
- Industrial Units

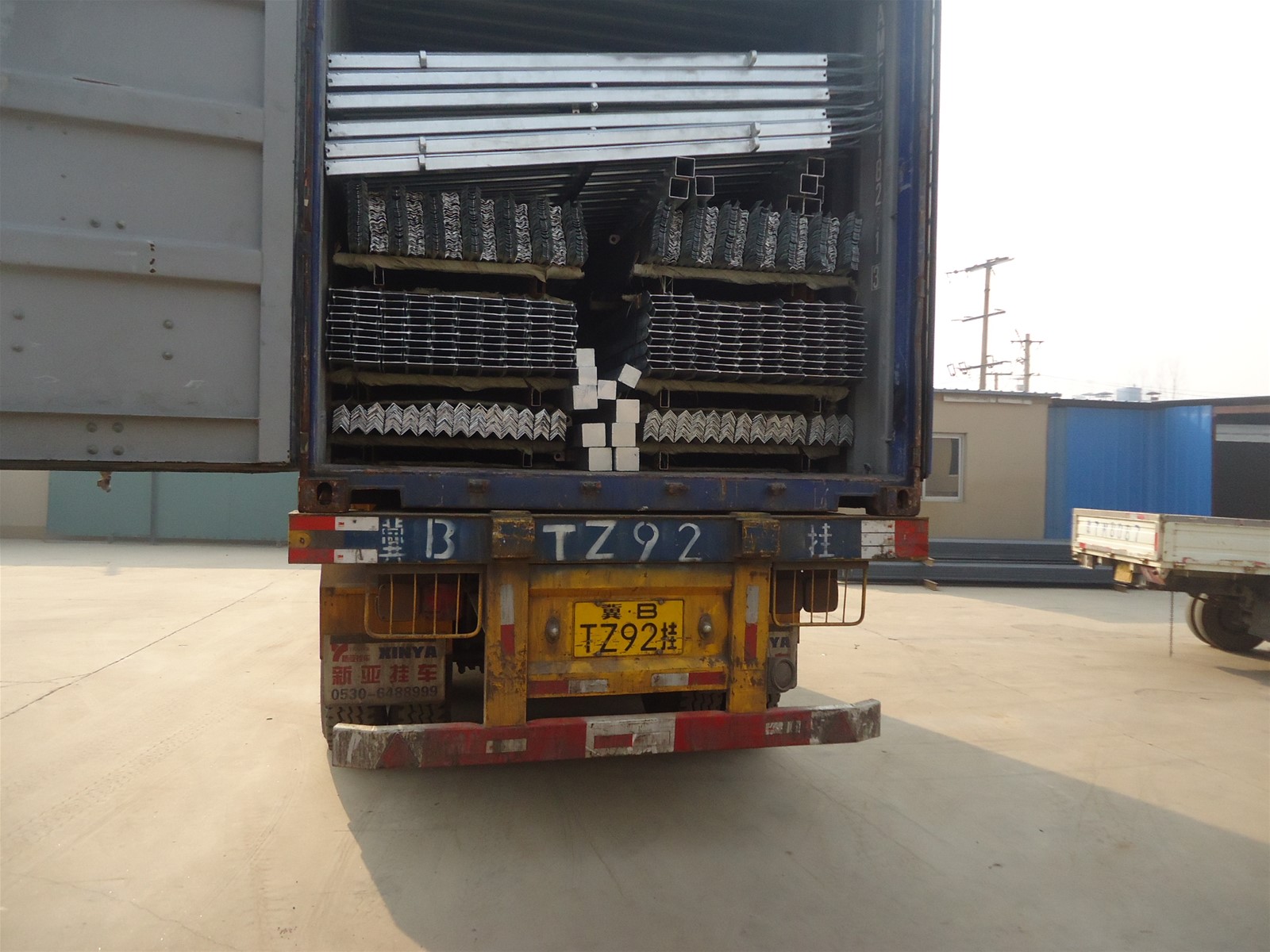

Palisade Fence Packing
Our palisade fence standard packing
The fence pale and fence rail,post parts fixed by steel belt in pallet , then wrap with plastic film outside to prevent moist , the fence fitting/accessories in woven pocket ,then in bags to prevent crush , at last in 20ft /40ft container
