Quick Details

Brand Name: Runtan
Model Number: SS-02
Technique: Woven
Wire Diameter: 0.02-1.2mm
Weave Style: Plain Weave
Application: Filters
Type: Weave Wire Mesh
Material: Stainless Steel Wire
Place of Origin: China (Mainland)
material: Stainless Steel Wire
stainless steel wire mesh type: wire cloth
Weave Style: plain weave,twill weave and dutch weave
stainless steel wire mesh wire diameter: 0.02-1.2mm
stainless steel wire mesh width: 0.5-6m
roll length: 15m-100m
Technique: woven
Application: Filters, filter and sieving industries
Feature: acid-resisting,alkali-resisting
Certificates: CE/ISO9001:2008

Specifications

Stainless Steel Wire Mesh

Technical Note:

1.width : from 30CM-5M standard width 1m or 48"
2.length : from 15M-100M standard width 30m or 100'

3.Material of stainless steel wire mesh : AISI 304, 304L, 316 or 316L

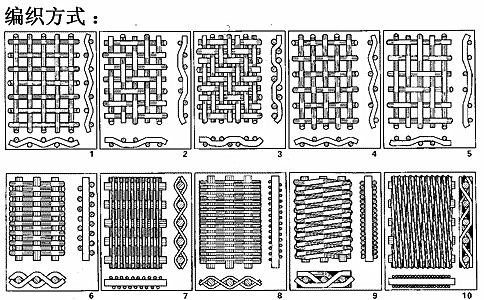

4.Typical Weaving Patterns: Plain weave, twill weave, Dutch weave.
AISI302304304L316316L stainless steel wire meshS S wire mesh



5.General Application:

Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc

 AISI302304304L316316L stainless steel wire meshS S wire mesh

6.Specification:


gauge

wire quantity (C/254mm)

wire diameter(mm)

weaving method

weights (kg/m2)

warp wire
weft wire
warp wire
weft wire
p28
7.1
40
0.710
0.630




















plain
5.26
p33
8.4
75
0.500
0.355




2.99
p40
10.2
75
3.11
p45
11.4
75
3.19
p50
12.7
75
0.450
3.11
p55
14
75
3.18
p60
15.2
100
0.400
0.280
2.57
p74
18.8
110
0.355

0.250

2.34
p80
20.3
110
2.39
p90
22.9
120
0.315
0.224
2.14
p100
25.4
140
0.280

0.200
1.90
p110
27.9
150
0.180

1.82
p120
30.5
150
0.250
1.74
p140
35.6
200
0.244
0.140
1.43
p160
40.6
220
0.180
0.125
1.21
p180
45.7
250
0.160
0.112
1.08
p200
50.8
280
0.140


0.100

0.95
p220
55.9
280
0.97
p240
61
300
0.090

0.93
p260
66
300
0.125
0.89
p280
71.1
350
0.112
0.080
0.78

gauge

wire quantity (C/254mm)

wire diameter(mm)

weaving method

weights (kg/m2)

warp wire
weft wire
warp wire
weft wire
x320
81.3
780
0.100
0.071

twill
1.17
x360
91.4
780
1.21
x400 I
101.6
900
0.063
1.13
x400 II
101.6
780
0.071
1.24
x500
127
1100
0.071
0.050
0.85
x520
132
1100

0.86
x630 I
160
1500
0.063

0.036
0.76
x630 II
160
1400
0.040

0.72
x685
174
1400
0.78
x795
202
1800
0.050
0.032
0.57
x850
216
1900

0.045
0.030
0.52
x1000
254
2000
0.040
0.028
0.50
x1125
285.8
2300
0.036
0.025
0.47
x1250
317.5
2300
0.44
Note: Approximate cloth weight per square meter is calculated in accordance with stainless steel wire cloth.
