| Connection: | Desktop |
|---|---|
| Model Number: | XSG2402500 |
| Brand Name: | XinsuGlobal |
| Place of Origin: | China (Mainland) |
| Product name: | 24v 2.5a switching power adapter |
| Output Voltage: | 24V |
| Output Current: | 2.5A |
| Charge Mode: | Constant Voltage |
| Energy Effiency: | Level VI |
| Color: | Black |
| Dimensions: | 116*52*34mm |
| Certificates: | UL cUL FCC PSE CE GS LVD SAA RCM C-tick CCC |
| Warranty: | 3 Years |
| Service: | OEM ODM |
Quick Details
Specifications

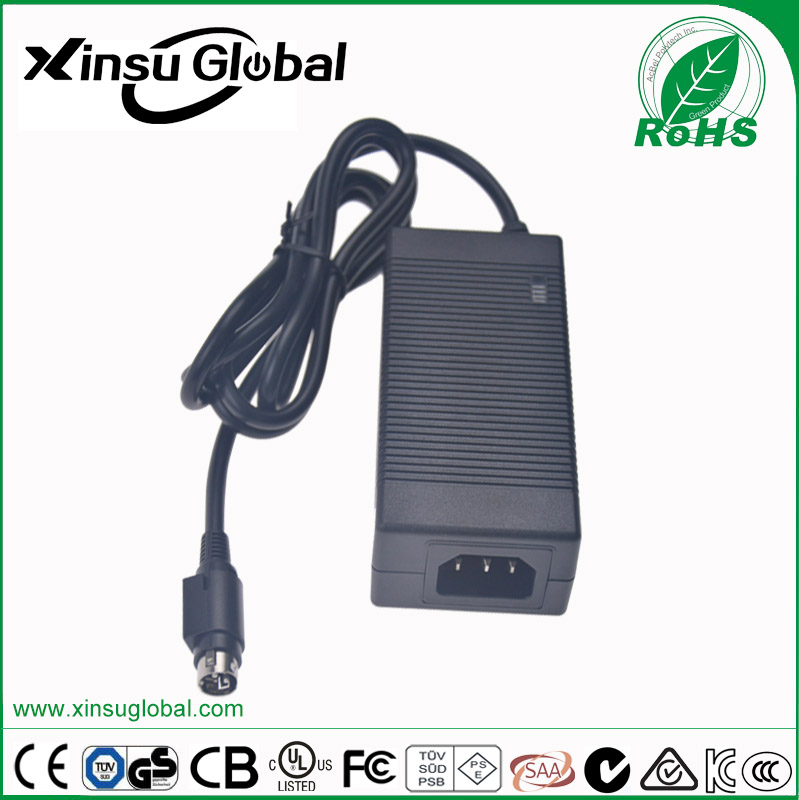

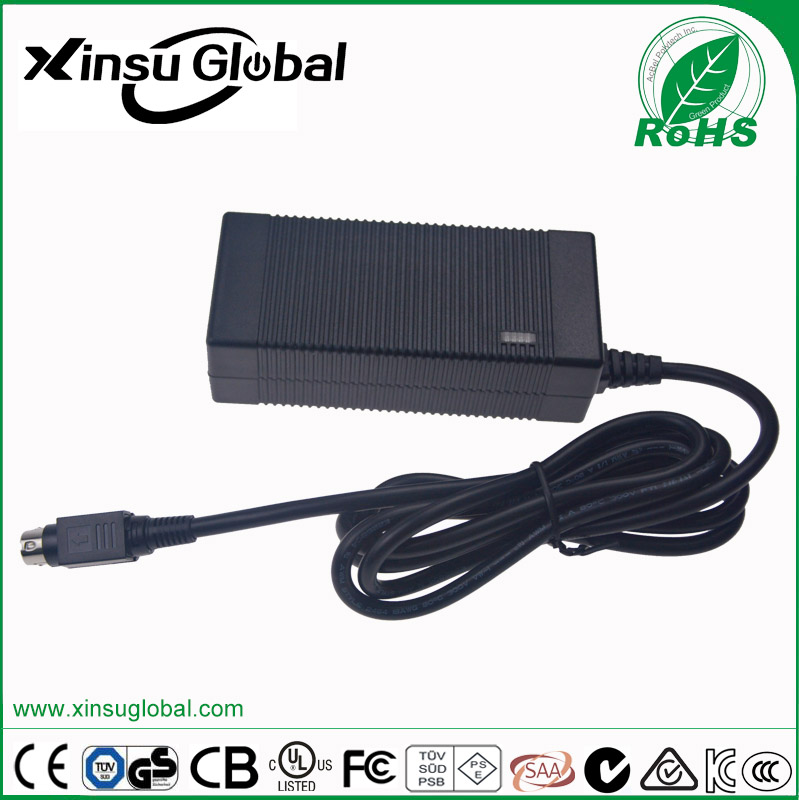

DOE VI approval AC DC 24V 2.5A power adapter for printer
Product Features:
Input |
100-240VAC,50/60HZ |
Output |
24Vdc,2.5A |
Output Connector |
Customized |
Efficiency |
≥88% |
No Load Power Consumption |
≤0.21W |
Protection Characteristic |
OVP;OCP;SCP;Hiccup protection,automatic recovery |
HIPOT |
3KVAC,5mA,60s |
MTBF |
50,000HRS |
Operating Temperature |
-20℃~ +45℃ |
Storage Temperature |
-30℃~ +70℃ |
Dimension |
116mm*52mm*34mm |
Net Weight |
0.25KG/PC |
Package |
White Box,50pcs/CTN |
MOQ |
200pcs |
Lead Time |
Sample:5days,Mass production:15-20days |
Safety Standards |
UL/J/EN/IEC60950,CSAC22.2,as/NZS60950, |
Certifications |
UL,cUL,FCC,PSE,CCC,CE,CB,TUV/GS,SAA,C-Tick |
Energy Consumption |
DOE:Ⅵ;Erp;Nrcan;MEPS |
Environmental Protection |
RoHS,REACH |
Applications |
Monitor, LED, Camera, Laptop, Electric tools,Digital products.Etc |
Series Params:
Model |
Input |
Frequence |
Output |
AC Interface | ||
VAC |
HZ |
Vdc |
Amp |
Watt Max | ||
XSGxxxyyyyzz |
100~240 |
50/60 |
3.6~5.0 |
0.1~7.0 |
35.0 |
IEC-320-C14 IEC-320-C8 |
XSGxxxyyyyzz |
100~240 |
50/60 |
5.1~9.0 |
0.1~6.5 |
58.5 | |
XSGxxxyyyyzz |
100~240 |
50/60 |
10.0~12.0 |
0.1~6.0 |
60.0 | |
XSGxxxyyyyzz |
100~240 |
50/60 |
12.1~12.6 |
0.1~0.5 |
63.0 | |
XSGxxxyyyyzz |
100~240 |
50/60 |
12.8~15.0 |
0.1~4.5 |
65.0 | |
XSGxxxyyyyzz |
100~240 |
50/60 |
16.0~20.0 |
0.1~3.75 |
65.0 | |
XSGxxxyyyyzz |
100~240 |
50/60 |
21.0~30.0 |
0.1~3.0 |
65.0 | |
XSGxxxyyyyzz |
100~240 |
50/60 |
31.0~58.8 |
0.1~2.0 |
65.0 | |
"XSG" stands for Xinsu Global Electronic Co.,Limited
Variable " xxx" = 036-588, can be 036-588 to denote different output voltage,(3.6V~58.8V).
Variable " yyyy" = 0100-7000,can be 0100-7000 to denote different output current,(100mA~7000mA).
Class II Variable " zz" = Sales markets,like EU for Europe, US for USA, CN for China, JP for Japan,
Blank or WW for worldwide etc;
