| Connection: | Plug In |
|---|---|
| Model Number: | XSG2401000 |
| Brand Name: | XinsuGlobal |
| Place of Origin: | China (Mainland) |
| Product Name: | 24v 1a ac dc power adapter |
| Output Type: | DC single with cable |
| Output: | 24V, 1A |
| Charge Mode: | Constant Voltage |
| Color: | Black or White |
| Warranty: | 3 years |
| Efficiency: | Level VI |
| Certificates: | UL cUL FCC PSE CE GS LVD SAA RCM C-tick CCC |
| Dimensions: | 71mm*46mm*30.5mm |
| Service: | OEM ODM |
Quick Details
Specifications

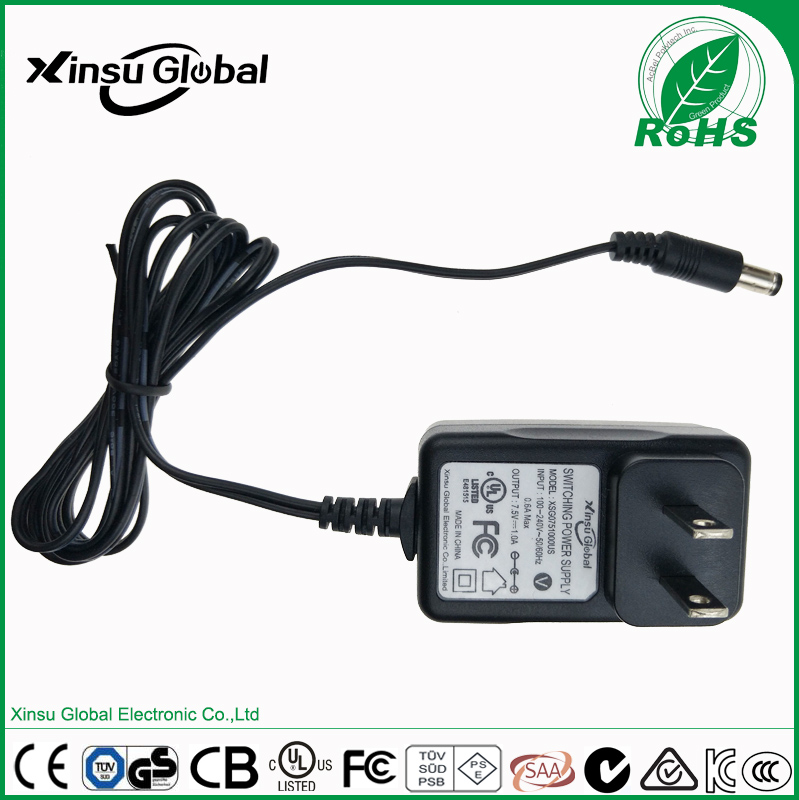

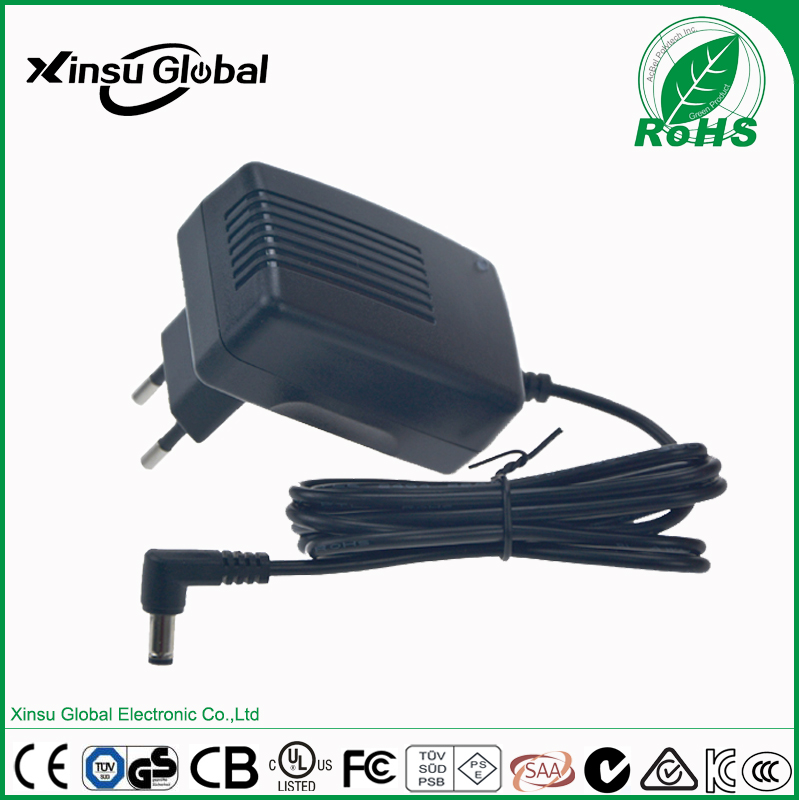

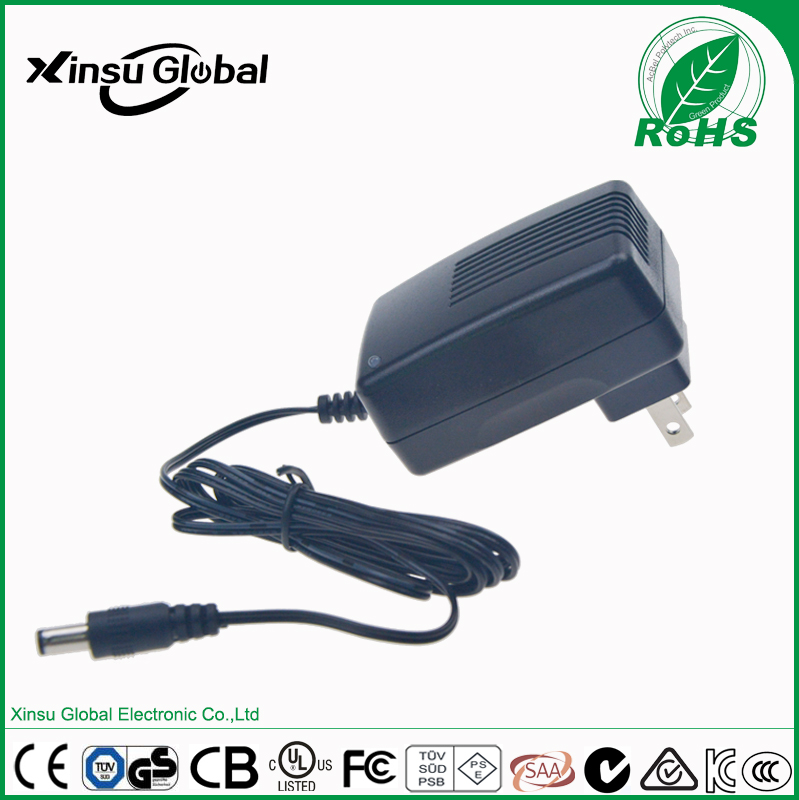

UL cUL FCC approval US plug 24w 24v 1a AC DC power adapter
Product Features:
Input |
100-240VAC,50/60HZ |
Output |
24Vdc,1A |
Output Connector |
Customized |
Efficiency |
≥86.2% |
No Load Power Consumption |
≤0.1W |
Protection Characteristic |
OVP;OCP;SCP;Hiccup protection,automatic recovery |
HIPOT |
3KVAC,5mA,60s |
MTBF |
50,000HRS |
Operating Temperature |
-20℃~ +45℃ |
Storage Temperature |
-30℃~ +70℃ |

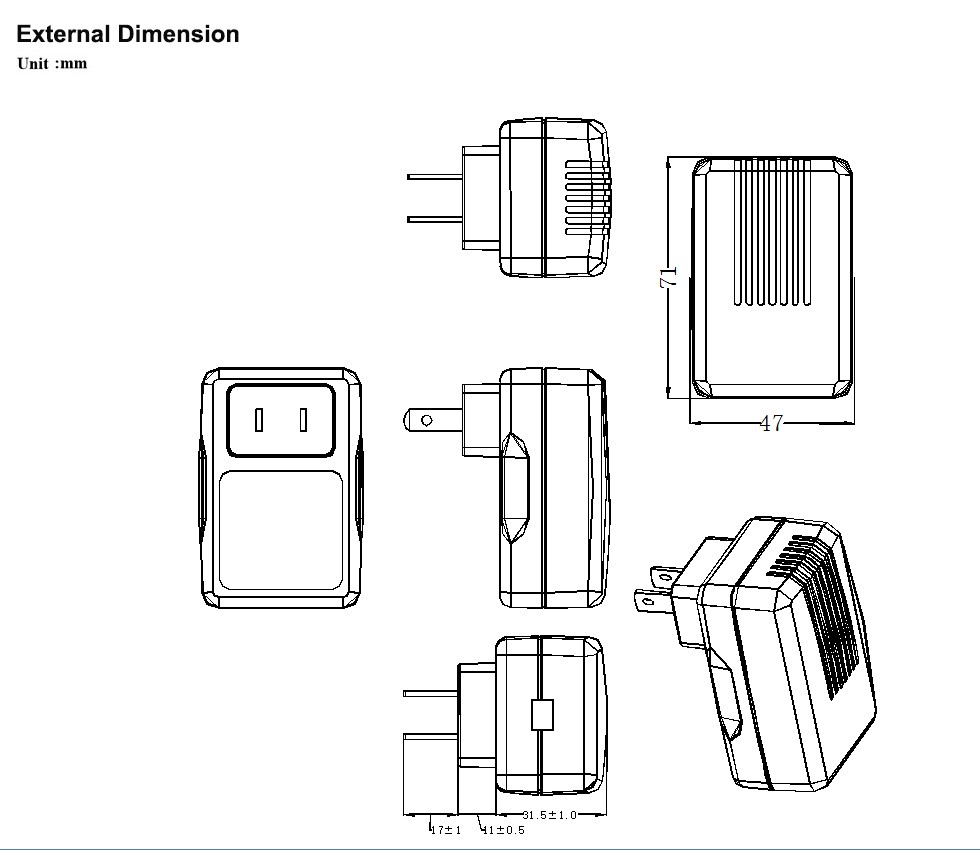

Dimension |
71mm*46mm*30.5mm |
Net Weight |
0.15KG/PC |
Package |
White Box,100pcs/CTN/15KG |
MOQ |
500pcs |
Lead Time |
Sample:5days,Mass production:15-20days |
Safety Standards |
UL/J/EN/IEC60950,CSAC22.2,as/NZS60950, |
Certifications |
UL,cUL,FCC,PSE,CCC,CE,CB,TUV/GS,SAA,C-Tick |
Energy Consumption |
DOE:Ⅵ;Erp;Nrcan;MEPS |
Environmental Protection |
RoHS,REACH |
Applications |
Monitor, Router, CCVT, STB, Audio, Optical transceiver, Game Player, Digital Camera, Display, Humidifier.Etc |
Series Params:
Model |
Input |
Frequence |
Output |
Plug type | ||
Vac |
HZ |
Vdc |
Amp |
Watt Max | ||
XSGxxxyyyyzz |
100~240 |
50/60 |
3.6~48 |
0.3~4.0 |
24 |
Direct Plug-in |
"XSG" stands for Xinsu Global Electronic Co.,Limited
Variable " xxx" = 036-480, can be 036-480 to denote different output voltage,(3.6V~48.0V).
Variable " yyyy" = 0300-4000,can be 0300-4000 to denote different output current,(300mA~4000mA).
Class II Variable " zz" = Sales markets,like EU for Europe, US for USA, CN for China, JP for Japan,
Blank or WW for worldwide etc;
