| Connection: | Plug In |
|---|---|
| Model Number: | XSG1501000 |
| Brand Name: | XinsuGlobal |
| Place of Origin: | China (Mainland) |
| Product Name: | 15v 1a ac to dc power adapter |
| Output Type: | DC single with cable |
| Output: | 15V, 1A |
| Charge Mode: | Constant Voltage |
| Colour: | Black or White |
| Warranty: | 2 Years |
| Efficiency: | Level VI |
| Certificates: | UL cUL FCC PSE CE GS LVD SAA RCM C-tick CCC |
| Dimensions: | 65mm*41mm*27mm |
| Service: | OEM ODM |
Quick Details
Specifications

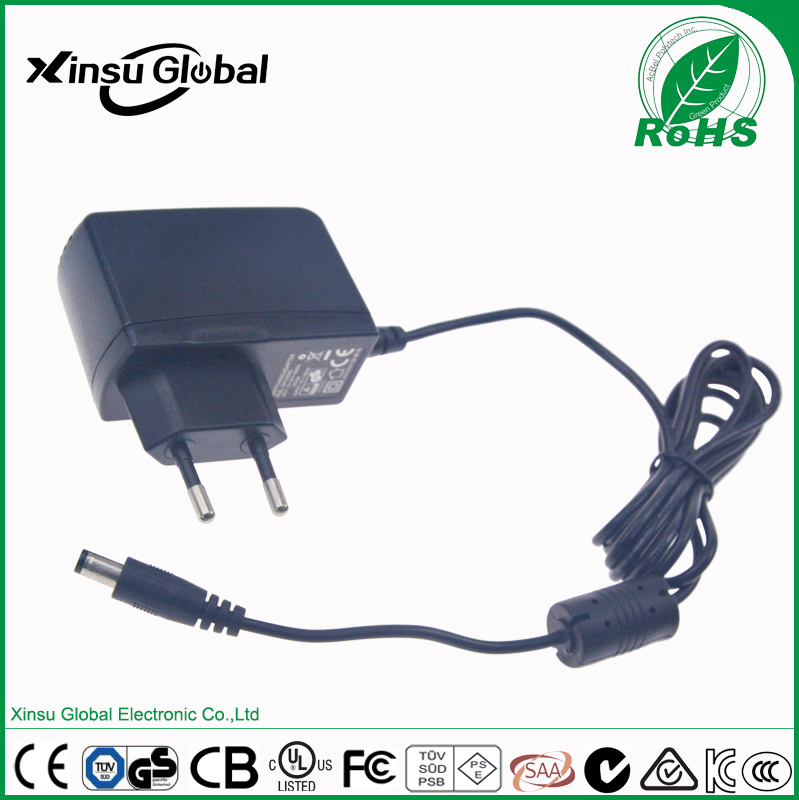

CE ROHS listed wall mount type EU plug 15v 1a AC DC adapter
Product Features:
Input |
100-240VAC,50/60HZ |
Output |
15Vdc, 1A |
Output Connector |
Customized |
Efficiency |
≥84.13% |
No Load Power Consumption |
≤0.1W |
Protection Characteristic |
OVP;OCP;SCP;Hiccup protection,automatic recovery |
HIPOT |
3KVAC,5mA,60s |
MTBF |
50,000HRS |
Operating Temperature |
-20℃~ +45℃ |
Storage Temperature |
-30℃~ +70℃ |
Dimension |
65mm*41mm*27mm |
Net Weight |
0.15KG/PC |
Package |
White Box,100pcs/CTN/15KG |
MOQ |
500pcs |
Lead Time |
Sample:5days,Mass production:15-20days |
Safety Standards |
UL/J/EN/IEC60950,CSAC22.2,as/NZS60950, |
Certifications |
UL,cUL,FCC,PSE,CCC,CE,CB,TUV/GS,SAA,C-Tick |
Energy Consumption |
DOE:Ⅵ;Erp;Nrcan;MEPS |
Environmental Protection |
RoHS,REACH |
Applications |
Car jump starter, Monitor, Router, Game Player, STB, Interchanger, Automobile starting power.Etc |
Series Params:
Model |
Input |
Frequence |
Output |
Plug Type |
Plug | ||
Vac |
HZ |
Vdc |
Amp Max |
Watt Max | |||
XSGxxxyyyyzz |
100~240 |
50/60 |
3~5 |
3 |
15 |
Direct Plug-in |
CN plug, EU plug US plug UK plug JP plug AU plug KR plug |
XSGxxxyyyyzz |
100~240 |
50/60 |
5.1~6 |
2.5 |
15 | ||
XSGxxxyyyyzz |
100~240 |
50/60 |
6.1~9 |
2 |
15 | ||
XSGxxxyyyyzz |
100~240 |
50/60 |
9.1~10 |
1.5 |
15 | ||
XSGxxxyyyyzz |
100~240 |
50/60 |
10.1~12 |
1.25 |
15 | ||
XSGxxxyyyyzz |
100~240 |
50/60 |
12.1~15 |
1 |
15 | ||
"XSG" stands for Xinsu Global Electronic Co.,Limited
Variable " xxx" = 030-150, can be 030-150 to denote different output voltage,(3.0V~15.0V).
Variable " yyyy" = 0100-3000,can be 0100-3000 to denote different output current,(100mA~3000mA).
Class II Variable " zz" = Sales markets,like EU for Europe, US for USA, CN for China, JP for Japan,
Blank or WW for worldwide etc;
