| Connection: | Plug In |
|---|---|
| Model Number: | XSG1800500 |
| Brand Name: | XinsuGlobal |
| Place of Origin: | China (Mainland) |
| Product Name: | 18v 0.5a ac dc adaptor with US UK EU AU plugs |
| Output Type: | DC single with cable |
| Output: | 18V, 500mA |
| Charge Mode: | Constant Voltage |
| Color: | Black |
| Warranty: | 3 years |
| Efficiency: | Level VI |
| Certificates: | UL cUL FCC PSE PSB CE GS LVD SAA RCM C-tick CCC |
| Dimensions: | 61.5mm*39mm*32mm |
| Service: | OEM ODM |
Quick Details
Specifications

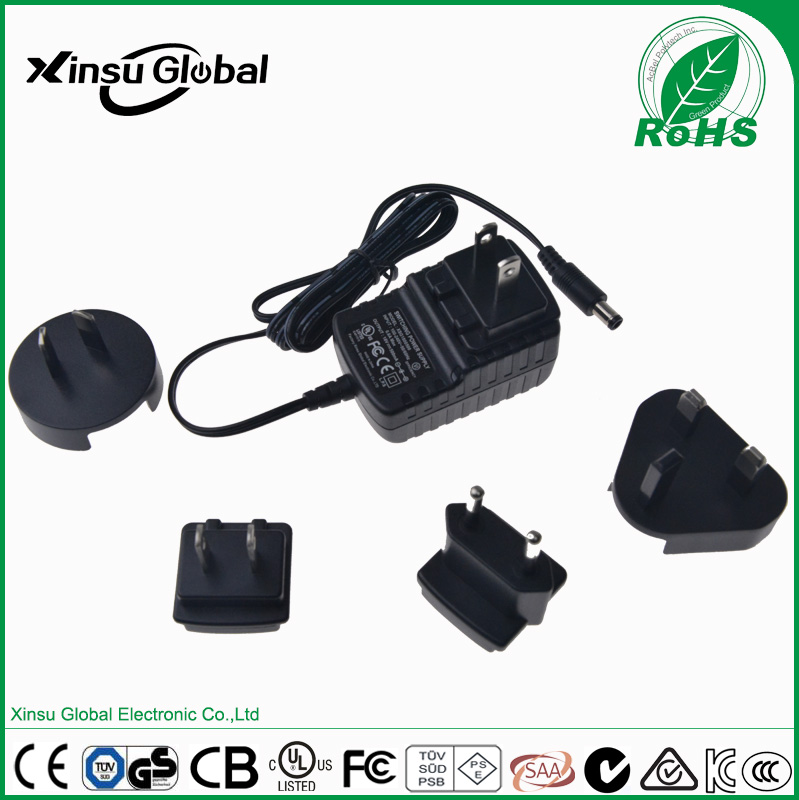

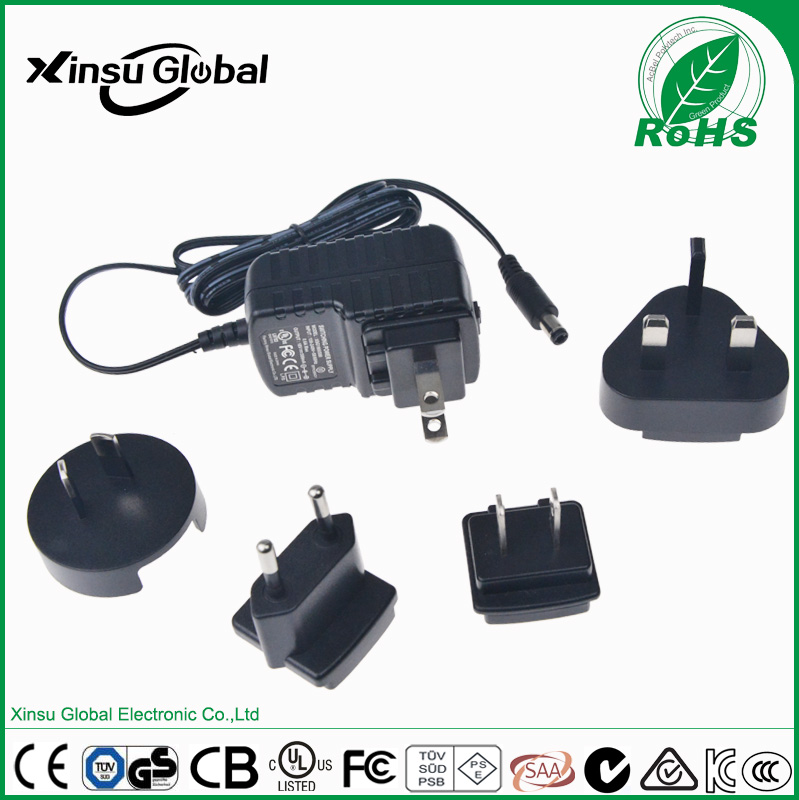

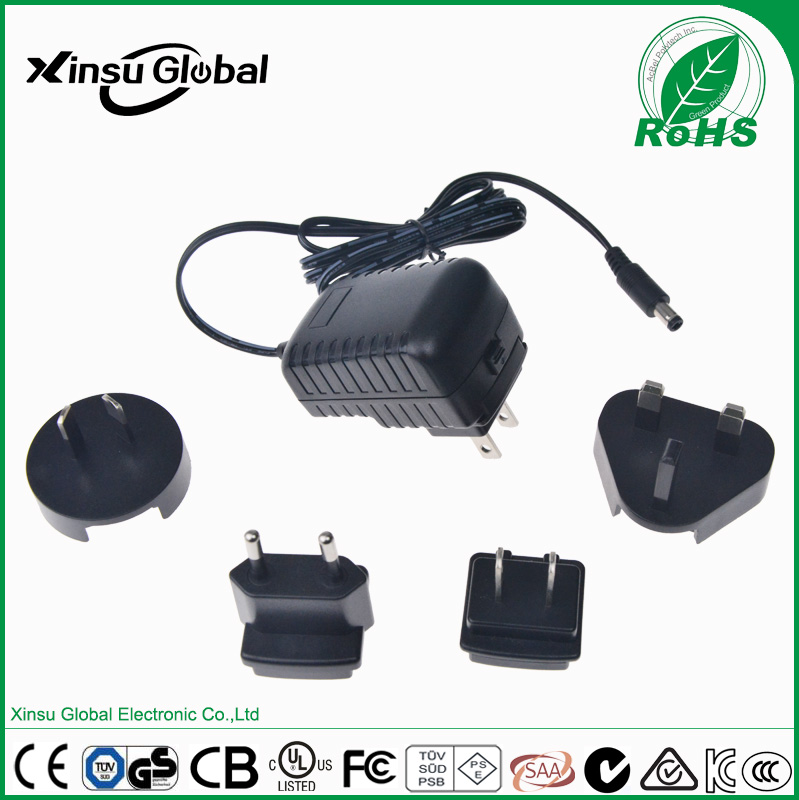

DOE Level VI certified ac to dc 18v 0.5a interchangeable plug power adapter
Product Features:
|
Input |
100-240VAC,50/60HZ |
|
Output |
18Vdc, 0.5A |
|
Output Connector |
Customized |
|
Efficiency |
≥81.34% |
|
No Load Power Consumption |
≤0.1W |
|
Protection Characteristic |
OVP, OCP, SCP, Hiccup protection, automatic recovery |
|
HIPOT |
3KVAC, 5mA, 60s |
|
MTBF |
50,000HRS |
|
Operating Temperature |
-20℃~ +45℃ |
|
Storage Temperature |
-30℃~ +70℃ |
|
Dimension |
61.5mm*39mm*32mm |
|
Net Weight |
0.15KG/PC |
|
Package |
White Box, 100pcs/CTN/15KG |
|
MOQ |
500pcs |
|
Lead Time |
Sample:5days, Mass production:15-20days |
|
Safety Standards |
UL/J/EN/IEC60950, CSAC22.2, AS/NZS60950, |
|
Certifications |
UL, cUL, FCC, PSE, PSB, CCC, CE, CB, TUV/GS, SAA, C-Tick, RCM |
|
Energy Consumption |
DOE:VI; Erp; Nrcan; MEPS |
|
Environmental Protection |
RoHS, REACH |
|
Market |
Worldwide |
Series Params:
|
Model |
Input |
Frequence |
Output |
Plug Type |
Plug |
||
|
Vac |
HZ |
Vdc |
Amp Max |
Watt Max |
|||
|
XSGxxxyyyyzz |
100~240 |
50/60 |
3~5 |
3 |
15 |
Direct Plug-in |
CN plug, EU plug, US plug, UK plug, JP plug, AU plug, KR plug |
|
XSGxxxyyyyzz |
100~240 |
50/60 |
5.1~6 |
2.5 |
15 |
||
|
XSGxxxyyyyzz |
100~240 |
50/60 |
6.1~9 |
2 |
15 |
||
|
XSGxxxyyyyzz |
100~240 |
50/60 |
9.1~10 |
1.5 |
15 |
||
|
XSGxxxyyyyzz |
100~240 |
50/60 |
10.1~12 |
1.25 |
15 |
||
|
XSGxxxyyyyzz |
100~240 |
50/60 |
12.1~15 |
1 |
15 |
||
"XSG" stands for Xinsu Global Electronic Co.,Limited
Variable " xxx" = 030-150, can be 030-150 to denote different output voltage,(3.0V~15.0V).
Variable " yyyy" = 0100-3000,can be 0100-3000 to denote different output current,(100mA~3000mA).
Class II Variable " zz" = Sales markets,Like EU for Europe, US for USA, CN for China, JP for Japan,
Blank Or WW for worldwide etc;
