| Brand Name: | HT |
|---|---|
| Model Number: | he16032302 |
| Technique: | Woven |
| Wire Diameter: | BWG 8-24 |
| Weave Style: | Plain Weave |
| Application: | Woven Wire Mesh |
| Type: | Weave Wire Mesh |
| Material: | PVC Coated Steel Wire |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

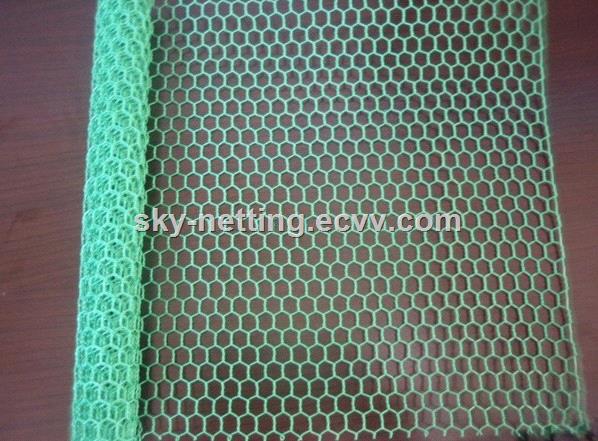

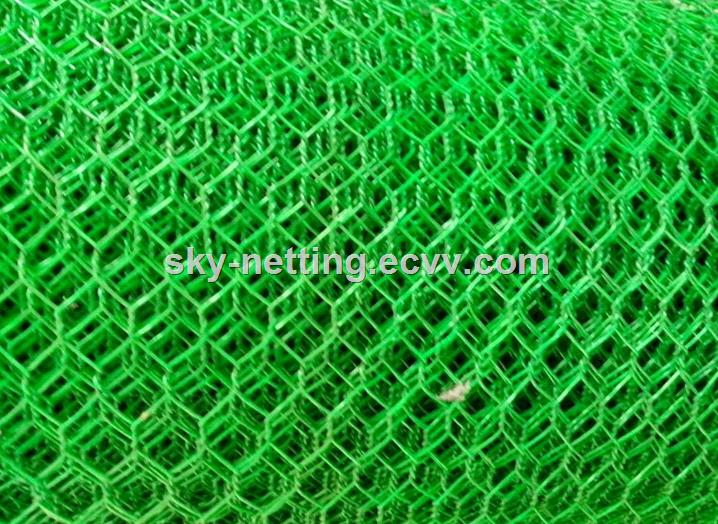

PVC Coated Hexagonal Wire Mesh / Wire Netting/Chicken Net
Quick Detail:
- Electro Galvanized before Weaving
- Electro Galvanized After Weaving
- Hot Dipped Galvanized before Weaving
- Hot Dipped Galvanized after Weaving
- PVC Coated Before or After Weaving
- Stainless Steel Wire
- Galvanized Drawn Iron Wire
Description:

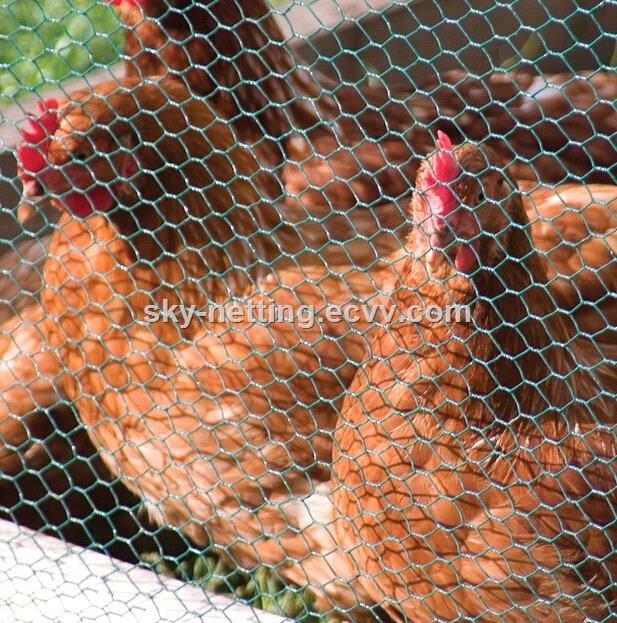

The Chicken wire poultry netting is also called hexagonal wire netting. The product is often used for the poultry and livestock protection.
Materials: galvanized wire, stainless steel wire or brass wire.
Stainless steel chicken wire can be used as poultry or small animals housing, or used in agriculture, walkways, wooden bridges.
As to the materials, chicken wire mesh can be divided into four types: galvanized chicken wire, stainless steel wire netting, PVC chicken wire and brass chicken fence.
PVC coated chicken wire is used in the garden or agriculture. The core wire is galvanized wire which has two types of electro wire and hot dipped wire. The protective PVC coating makes the chicken wire last many years longer than an uncoated chicken wire. The color has green,black and yellow. Custom colors are available by request.
Galvanized chicken wire is mainly used in the garden for bird protection. The 13mm hole is mainly used to make fruit cages and sculpture. 25-50mm hole is for poultry enclosure, garden borders and bird protection. 31mm-50mm hole is for the rabbit cage.
The features: surface smooth, good anti-corrosion and anti-oxidation. Stainless steel wire netting size: 50 metre x 900 mm roll, Hexagonal holes 25mm, 20 gauge or 22 gauge.
Specification:
Chicken Wire
|
Mesh |
Min. Gal.v.G/() |
Width |
Wire Gauge(Diameter) BWG |
||
|
Inch |
mm |
Tolerance (mm) |
SQ.M |
|
|
|
3/8" |
10mm |
±1.0 |
0.7mm-145 |
2'-1M |
27,26,25,24,23 |
|
1/2" |
13mm |
±1.5 |
0.7mm-95 |
2'-2M |
25,24,23,22,21 |
|
5/8" |
16mm |
±2.0 |
0.7mm-70 |
2'-2M |
27,26,25,24,23,22 |
|
3/4" |
20mm |
±3.0 |
0.7mm-55 |
2'-2M |
25,24,23,22,21,20,19 |
|
1" |
25mm |
±3.0 |
0.9m-55 |
1'-2M |
25,24,23,22,21,20,19,18 |
|
1-1/4" |
31mm |
±4.0 |
0.9mm-40 |
1'-2M |
23,22,21,20,19,18 |
|
1-1/2" |
40mm |
±5.0 |
1.0mm-45 |
1'-2M |
23,22,21,20,19,18 |
|
2" |
50mm |
±6.0 |
1.2mm-40 |
1'-2M |
23,22,21,20,19,18 |
|
2-1/2" |
65mm |
±7.0 |
1.0mm-30 |
1'-2M |
21,20,19,18 |
|
3" |
75mm |
±8.0 |
1.4mm-30 |
2'-2M |
20,19,18,17 |
|
4" |
100mm |
±8.0 |
1.6mm-30 |
2'-2M |
19,18,17,16 |
|
Note:1.)The above tolerance comply with standard EN 10223-2:1997. for your reference. |
|||||
Any size could be customized ! Welcome to our factory !
