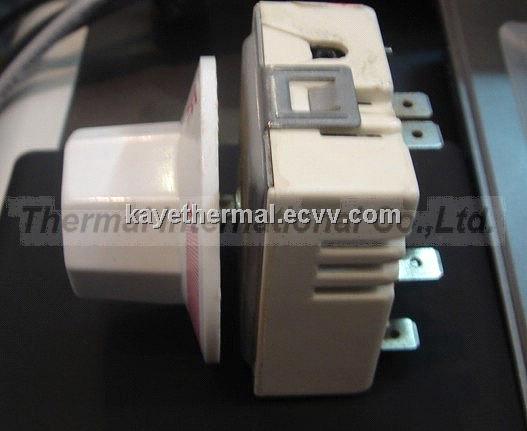

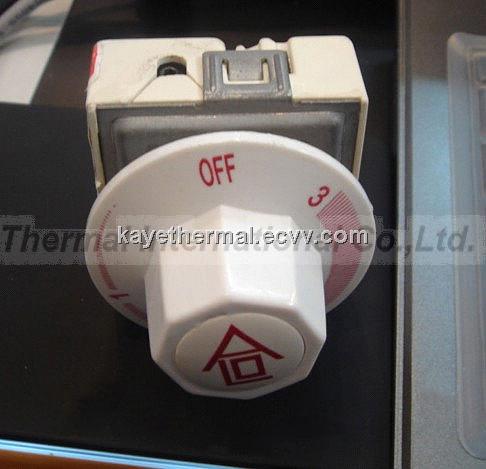

High Quality Energy Regulator Switch

Advantages:

• Energy regulator is used in the cooking appliance, which designed to have the lowest terminal height, in the smallest physical package and still it provides a fully featured control
• This benefits the customer by providing design flexibility and material savings
• An energy regulator is not a thermostat, it cannot measure temperature, it also be called Infinites and simmerstats

• Main features:
  • Insulation resistance: ≥ 100MΩ
  • Electric intensity: AC 2000V/Min
  • Life span: ≥10000 times
  • Housing dimensions: 50 x 42 x 39 mm (shaft not included)
  • Housing material: high temperature resistant PPS
  • Terminals: 6.3 x 0.8 quick connect
  • Adjustment: dia. 6 mm with 4.8 flat shaft, length 11.4 mm (UK style models with 4.75 mm dia. Shaft available on request, MOQ apply)
• Angulation:
  • Mechanical: 360°, with two pole off position at 0°
  • Electrical: Min position at 75°angular, max position at 285° angular. (Other angulation with max at 208.5° available on request, MOQ apply)
  • Mounting: Center ? BSPP bush with centering studs
  • 2 M4, 28mm distance screws mounting bracket available on request (MOQ apply)
  • Rating: 12A 230V resistive, SPDT+ on off pilot contact. Other contact configuration (SPST, SPDT without pilot, double circuit and more are available on request, MOQ apply)
  • Max ambient temperature: 125°C/257°F
  • Approval: CE
