| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO9001 |
| Power(W): | 14500 |
| Opening Stroke: | 180MM |
| Clamping Force: | 55T |
| Injection Rate: | 80CM3/SE C |
| Injection Weight: | 67-108G |
| Automatic: | Yes |
| Plastic Type: | Thermoplastic |
| Place of Origin: | China (Mainland) |
| Model Number: | JTT-550 2V3R |
| Brand Name: | JINTONG |
| Style: | Vertical |
| Type: | Preform Injection |
| Condition: | New |
Quick Details
Specifications

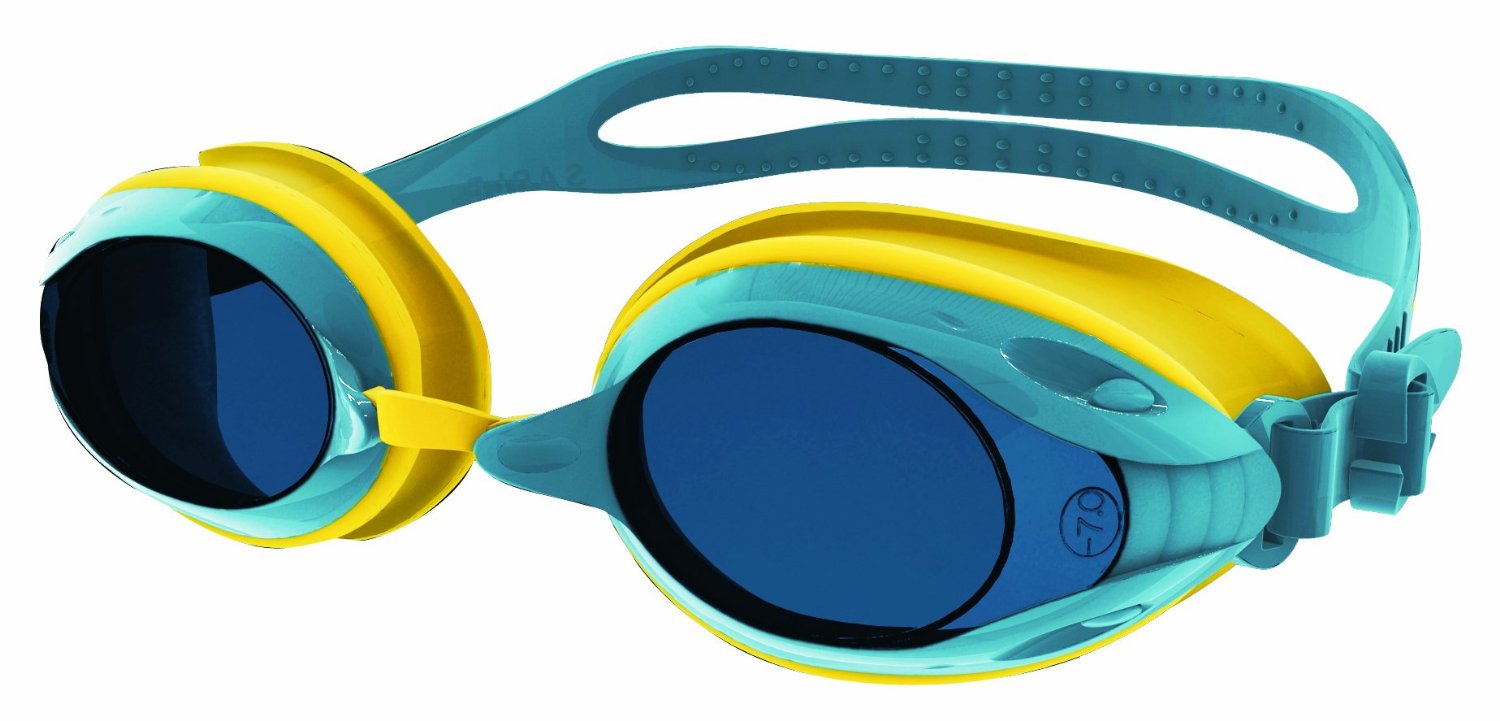

One clamping mold with two injection system(horizontal and vertical system), which make two-color or two-material products
Two injection systems can work individually, which do injection one by one or at same time
with rotary table, easy to pick out or insert goods
| UNIT | MODEL | ||||||||||||||
| A(250) | B(250K) | C(400) | D(600) | E(800) | |||||||||||
| Screw diameter | mm | ?18 | ?22 | ?25 | ?28 | ?32 | ?28 | ?32 | ?36 | ?32 | ?36 | ?42 | ?36 | ?42 | ?48 |
| Max injectionpressure | Kg/cm2 | 2333 | 1562 | 1971 | 1571 | 1203 | 2000 | 1531 | 1210 | 2051 | 1710 | 1190 | 2074 | 1523 | 1161 |
| Theoretical shot volume | cm3 | 25.4 | 38 | 49 | 61 | 80 | 74 | 97 | 122 | 113 | 142 | 194 | 162 | 221 | 289 |
| Max shot weight | G(oz) | 23(0.8) | 34(1.2) | 45(1.6) | 56(2.0) | 74(2.6) | 68(2.4) | 89(3.1) | 113(4) | 104(3.7) | 133(4.7) | 179(6.3) | 150(5.3) | 203(7.1) | 266(9.4) |
| Injection rate | Cm3/sec | 25 | 37 | 44 | 55 | 72 | 42 | 55 | 70 | 63 | 80 | 109 | 88 | 120 | 157 |
| Barrel heating power | kw | 2.5 | 2.5 | 3.6 | 5.55 | 7 | |||||||||
| Motor drive power | HP(kw) | 5.5(4) | 7.5(5.5) | 7.5(5.5) | 10(7.5) | 15(11) | |||||||||
| UNIT | JTT-550 2V3R | JTT-850 2V3R | JTT-1200 2V3R | JTT-1600 2V3R | |||||||||||
| Project | ? | ∥ | ? | ∥ | ? | ∥ | ? | ∥ | |||||||
| NO. | A+B | A+B | B+C | C+C | C+D | D+D | D+E | E+E | |||||||
| Clamping force | ton | 55 | 85 | 120 | 160 | ||||||||||
| Top platen size | mm | 460*380 | 540*940 | 650*1060 | 660*1160 | ||||||||||
| Rotary table diameter | mm | ?940 | ?980 | ?980 | ?1170 | ||||||||||
| Insert mold size | mm | 200*360(300*200) | 260*420(300*200) | 300*400(350*250) | 350*450(500*300) | ||||||||||
| Min mold thickness | mm | 100/200 | 150/250 | 200/300 | 200/300 | ||||||||||
| Opening stroke | mm | 180 | 200 | 250 | 270 | ||||||||||
| Open daylight | mm | 280/380 | 350/450 | 450/550 | 470/570 | ||||||||||
| Ejector force | ton | 1.3 | 1.3 | 2 | 2.7 | ||||||||||
| Ejector stroke | mm | 35 | 35 | 45 | 65 | ||||||||||
| Hydraulic system pressure | Kg/cm2 | 140 | 140 | 140 | 140 | ||||||||||
| Oil tank volume | L | 300 | 400 | 600 | 800 | ||||||||||
| Electric power | kw | 9.5/11 | 11 | 13/15 | 18.5/22 | ||||||||||
| Total power | kw | 14.5/16 | 17/18 | 22/26 | 31/36 | ||||||||||
| Machine dimension | mm | 2.1*1.4*2.5 | 2.0*1.5*2.5 | 2.5*1.7*3.0 | 2.8*1.9*3.2 | ||||||||||
| Machine weight | ton | 2.5 | 4 | 5 | 6 | ||||||||||
