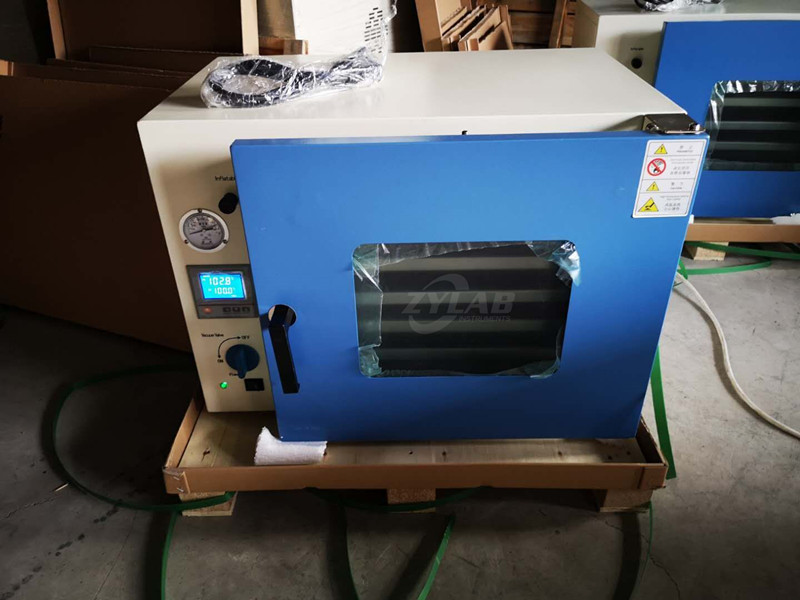

Best Selling!! DZF-6050 1.9cu ft Vacuum Oven with 5 Shelves

 Introduction:

 this Vacuum Oven is specially designed for drying material which is thermo-sensitive, decompounded and oxidative easily.

It also can be filed with inert gas and dry some ingredient complex materials quickly.

Has been widely used in scientific research, medication, electronics, chemical industry fields, Plant extracts,etc

Main Features of Vacuum Oven:

1.Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

2.3" (7.6 cm) glass wool insulation prevents heat loss from working chamber.

3. Silicone door gasket and positive latch door maintain seal at all vacuum levels.

4. Polycarbonate safety shield protects door glass.

5. Microcomputer precision controller controls temperature with +/- 1°C accuracy and built-in over temperature protection.

6. with timing function.

7. Maximum Heating Rate: 4~6 C/min

8. Operating temperature range from room temperature to 250°C Max.(RT ~ 200°C for continuous;200°C ~ 250°C for <4hrs).

9. Easy-to-clean #304 stainless steel chamber interior.

10. 2-5 shelves were included for immediate use.

11. Vacuum and air lines constructed with corrosion-resistant cooper tubing for optimum chamber cleanliness and long term performance.

Main Specification of  Vacuum Oven:

Model       Parameter	DZF-6020	DZF-6050	DZF-6090	DZF-6210		DZF-6250
Studio Size H*W*H(mm)	300*300*275	415*370*345	450*450*450	560*590*640		700*600*600
Capacity	25L(0.9cu ft)	50L(1.9cu ft)	90L	210L		250L
Chamber interior material	Easy-to-clean #304 stainless steel
Overall Dimension(mm)	585*450*455	700*520*525	760*760*650	870*750*840		1010*760*800
Standard Shelf	1pc	2pcs(can addition order)		3pcs
Temperature Range	RT+10~250℃	RT+10~250℃
Temperature Accuracy	±0.1℃
Vacuum Level	<133pa
Voltage	220V/50HZ(110V/60HZ optional)				380V 50HZ
Power	500W	1400W	2000W	2200W		4000W
