| Classification: | Laboratory Heating Equipments |
|---|---|
| Brand Name: | ZYLAB |
| Classification: | CE |
| name: | Mini Muffle Furnace |
| Working temperature: | RT-1100.C |
| heating rate: | 0-20.C/min |
| Place of Origin: | China (Mainland) |
| Model Number: | M1200-10IC |
Quick Details
Specifications

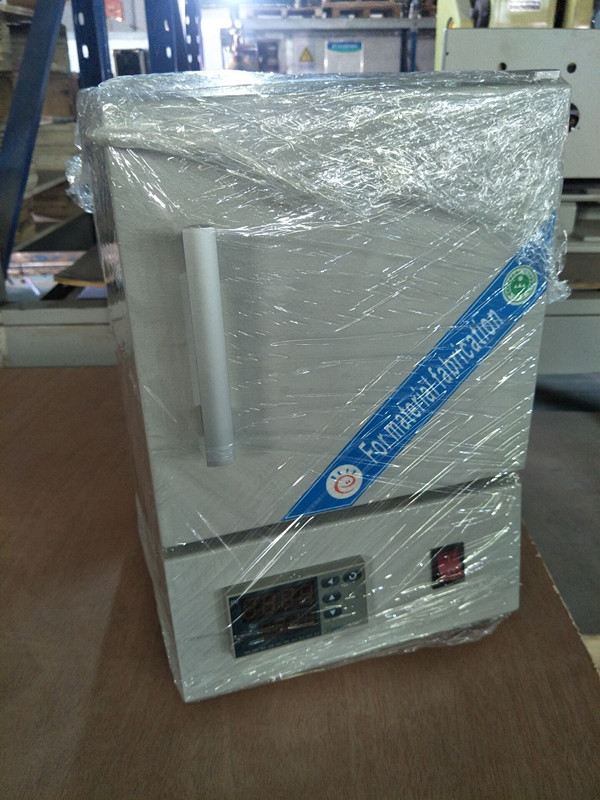

Hot Sale!! 1200 Degree C Mini Muffle Furnace
Introduction:
this Mini Muffle Furnace use top quality resistance wire, to ensure excellent heating and long using life. Quality features like the dual shell housing, its compact, lightweight design. It is the ideal electric furnace for material research labs and dental labs to prepare small size samples with maximum energy saving.
Main Features of Mini Muffle Furnace:
1.Max. Temperature 1200C, working temperature RT-1200C(1200C<3hours).
2. 51 segments programmable and auto control.
3. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
4 by using special lining import from Japan and top quality resistance wire, protected against chemical contamination at the best.
5. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
6. Low power consumable, exquisite structure and light weight, it is the ideal electric furnace for labs and production in factory.
Technical Data of Mini Muffle Furnace:
Chamber size (Working space) |
100100100(mm) (also can customized according to requirement) |
Max Working Temperature |
1200°C (<3 hours) |
Continue Working Temperature |
Rt ~ 1100°C |
Furnace Structure |
1430 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); |
Furnace Lining |
Special lining import from Japan, will not pollute the product |
Heat Element |
Top quality resistance wire |
Heating Rate |
0~30℃/min(suggest 10℃/min) Max. Heating Rate:30℃/min, only need 30 minutes up to 1000℃ |
Temperature Control |
PID automatic control and auto-tune function. |
Thermal Couple |
K type |
Temperature Accuracy |
±1℃ |
Rated Power |
1KW |
Working Voltage |
AC 110/208V-240V, 50/60 Hz (according to requirement) |
Dimension |
260(L)*400(H)*280(D)(mm) |
Quantity / Gross Weight |
1set / 20kgs |
Warranty |
12 months |
Certification |
CE, ISO |
