| Place of Origin: | China (Mainland) |
|---|---|
| Type: | Electric |
| Use: | Standard Battery |
| Model Number: | XSG2942000 |
| Brand Name: | XinsuGlobal |
| Product name: | li-ion battery charger 29.4v |
| Output Type: | DC single with cable |
| Output: | 29.4V, 2A |
| LED indicator: | Red-charging, Green-finished |
| Charge Mode: | Three-stage, mode CC~CV |
| Usage: | for 25.9v lithium battery pack |
| Color: | Black |
| Dimensions: | 116mm*52mm*34mm |
| Warranty: | 3 Years |
| Certificates: | UL cUL FCC PSE CE GS LVD SAA RCM C-tick CCC |
Quick Details
Specifications

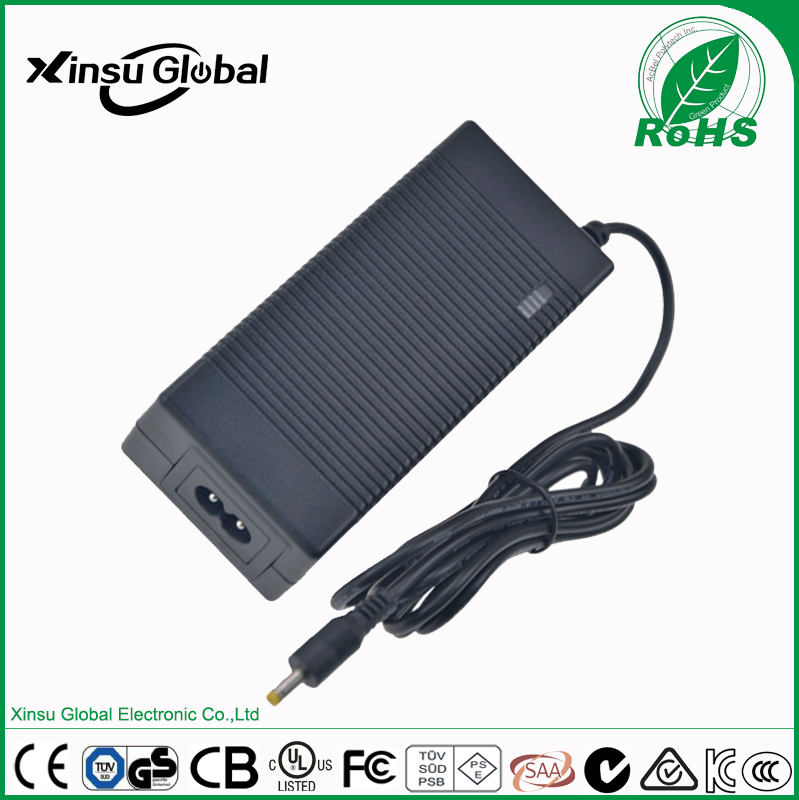

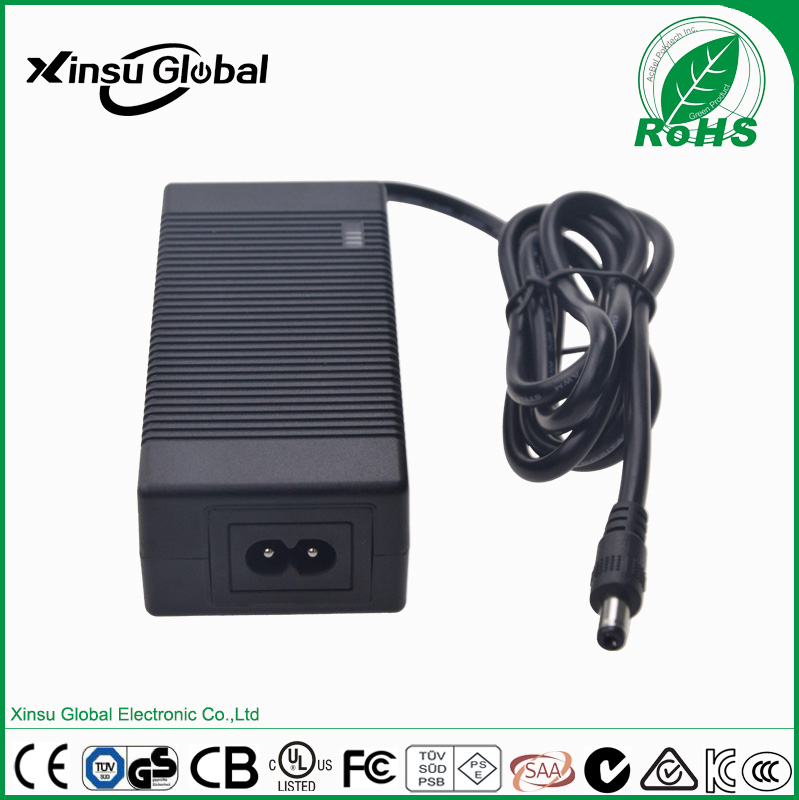

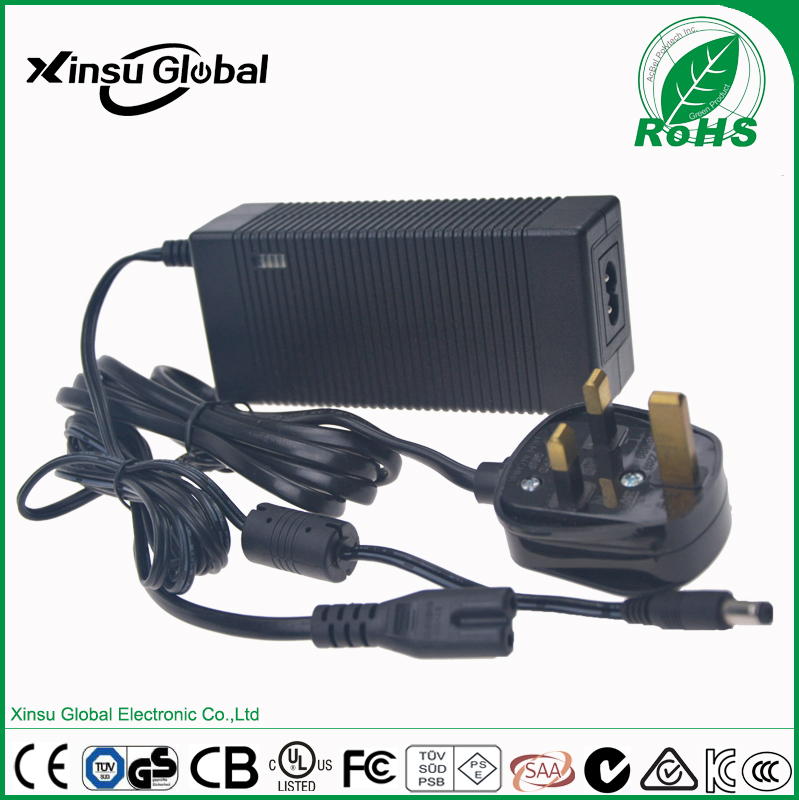

UL GS CE PSE PSB CCC C-tick 7 cell lithium ion battery charger 29.4v 2a
Product Features:
|
Input |
100-240VAC, 50/60HZ |
|
Input inlet |
IEC-320-C6, IEC-320-C8, IEC-320-C14 |
|
Output |
29.4VDC, 2A |
|
Output plug |
Customized |
|
Efficiency |
≥87% |
|
No Load Power Consumption |
≤0.5W |
|
Protection |
Polarity protection; OVP; OCP; SCP |
|
Charge Mode |
CC~CV |
|
LED |
Charging status : Red/Charging; Green/Finished |
|
HIPOT |
3KVAC,5mA,60s |
|
MTBF |
50,000HRS |
|
Operating |
Temperature -20℃~ +45℃ |
|
Storage |
Temperature -30℃~ +70℃ |
|
Dimension |
116mm*52mm*34mm |
|
Net Weight |
0.25KG/PC |
|
Package |
White Box,50pcs/CTN |
|
MOQ |
200pcs |
|
Lead Time |
Sample:5days,Mass production:15-20days |
|
Safety Standards |
UL60950-1, CSA C22.2, IEC60950-1, AS/NZS60950, GB4943,EN60950, |
|
Certificates |
UL, cUL, FCC, PSE, CCC, CE,CB, TUV/GS, LVD, EMC, RCM, SAA, C-Tick, PSB |
|
Energy Consumption |
DOE:VI; Erp; Nrcan; MEPS |
|
Environmental |
Protection: RoHS, REACH |
|
Markets |
Worldwide |
Product Recommendation:
MODEL
INPUT
OUTPUT
Vac
W
Vdc
mA
XSG2940300zz
100～240
8.8
29.4
300
XSG2940400zz
100～240
11.8
29.4
400
XSG2940500zz
100～240
14.7
29.4
500
XSG2940600zz
100～240
17.6
29.4
600
XSG2940700zz
100～240
20.6
29.4
700
XSG2940800zz
100～240
23.5
29.4
800
XSG2940900zz
100～240
26.5
29.4
900
XSG2941000zz
100～240
29.4
29.4
1000
XSG2941250zz
100～240
36.8
29.4
1250
XSG29415000zz
100～240
44.1
29.4
1500
XSG2942000zz
100～240
58.8
29.4
2000
XSG2942200zz
100～240
64.7
29.4
2200
"XSG" stands for Xinsu Global Electronic Co.,Limited
Variable " xxx" = 036-588, can be 036-588 to denote different output voltage,(3.6V~58.8V).
Variable " yyyy" = 0300-7000,can be 0300-7000 to denote different output current,(300mA~7000mA).
Class II Variable " zz" = Sales markets,Like EU for Europe, US for USA, CN for China, JP for Japan,
Blank Or WW for worldwide etc;
To get more products, please visit XinsuGlobal
