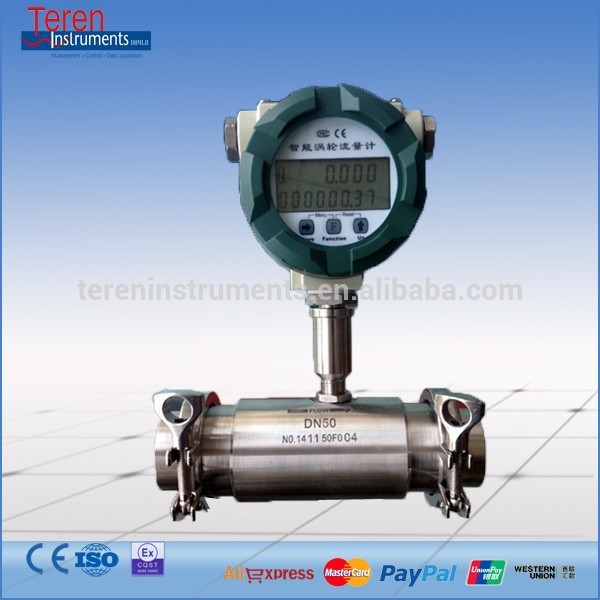

| Model Number: | TR-TFM |
|---|---|
| Brand Name: | Teren |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Features:
- High accuracy, usually reach ±1%R,±5%R, or even reach ±0.2%R for high-precision type
- Good repeatable and repeatability, can reach 0.05%-0.2% in short term, if regular calibration or online calibration can get an extremely high accuracy, so it is preferred in trade
- Pulse signal output, suitable for total flow measurement and computer connection, no zero drift, strong anti-jamming capability
- High frequency signal (3-4kHz), strong signal resolution
- Suitable for high pressure measurement. the interface of the instrument doesn't have to be opened, so it can be made to a high pressure instrument easily
- It can be customer-tailored according to different sensors, for example, low-temperature type, two-way type, underground type, sand special type, etc
Technical data:
Diameter and connection |
25,40,50,80,100,150,200,250,300 Use Flange connection |
25,40 could be able to use thread connection | |
Accuracy grade |
±1.5%R;±1%R;±0.5%R |
Range ratio |
1:10;1:20;1:30 |
Material |
Body:304L or cast aluminum;Impeller:corrosion protection ABS or high quality Aluminum alloy;converter:cast aluminum |
Medium temperature(℃) |
-30℃~+80℃ |
Environment condition |
Media temp:-30℃~+80,relative humidity5%~90%,atmospheric pressure 86~106Kpa |
Signal output |
Three wire series pulse frequency output,low level≤0.8V High level≥8V,RS485 |
Power supply |
+12VDC ,+24VDC(optional) |
Signal transmission line |
STVPV3×0.3 |
Transmission distance |
≤1000m |
Signal line connector |
Internal thread M20×1.5 |
Explosion-proof grade |
ExdIIBT6 |
Protection grade |
IP65 |
