| Max. Power: | 10W |
|---|---|
| Number of Cells: | 18 |
| Size: | 350mm x 300mm x 18mm |
| Material: | Polycrystalline Silicon |
| Brand Name: | WSL Solar |
| Model Number: | WSL-C012 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

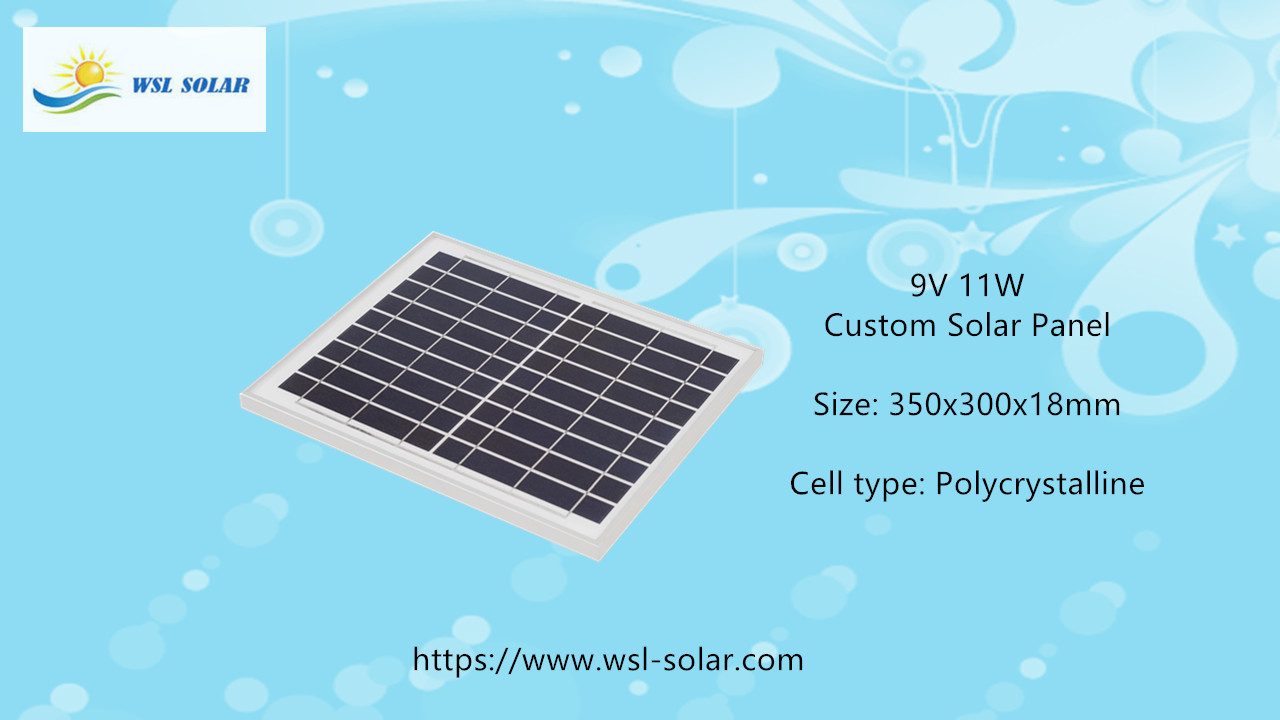

10W Solar Panel | 9V Solar Panel
Specifications
Item no.: WSL-C012
Dimensions: 350mm x 300mm x 18mm
Type of solar cell: High efficiency multi-crystalline solar cell
Quantities of solar cell: 18 pieces
Peak power: 10 watt
Power tolerance: ±3%
Rated voltage: 9 V
Rated current: 1.11 A
Open-circuit voltage: 10.8 V
Short-circuit current: 1.21 A
Product warranty: 5 years
Front sheet: Tempered 3.2mm glass
Back sheet: TPT
Storage temperature: -20°C ~ 65°C
Operating temperature: -40°C ~ 85°C
Test conditions: 1000watt/m2, 1.5AM, 25°C
WSL Solar has been a quality and professional manufacturer of customized solar panels
and solar solution provider in China since 2006.
Specifications
Item no.: WSL-C012
Dimensions: 350mm x 300mm x 18mm
Type of solar cell: High efficiency multi-crystalline solar cell
Quantities of solar cell: 18 pieces
Peak power: 10 watt
Power tolerance: ±3%
Rated voltage: 9 V
Rated current: 1.11 A
Open-circuit voltage: 10.8 V
Short-circuit current: 1.21 A
Product warranty: 5 years
Front sheet: Tempered 3.2mm glass
Back sheet: TPT
Storage temperature: -20°C ~ 65°C
Operating temperature: -40°C ~ 85°C
Test conditions: 1000watt/m2, 1.5AM, 25°C
WSL Solar has been a quality and professional manufacturer of customized solar panels
and solar solution provider in China since 2006.
