| Model Number: | N2016-SA2 |
|---|---|
| Brand Name: | MiyeaEYE |
| Place of Origin: | China (Mainland) |
| Preview capability: | 16ch 1080P |
| Video output: | 1ch VGA,1ch HDMI,1ch BNC |
| USB port: | 2 port,USB2.0 |
Quick Details
Specifications

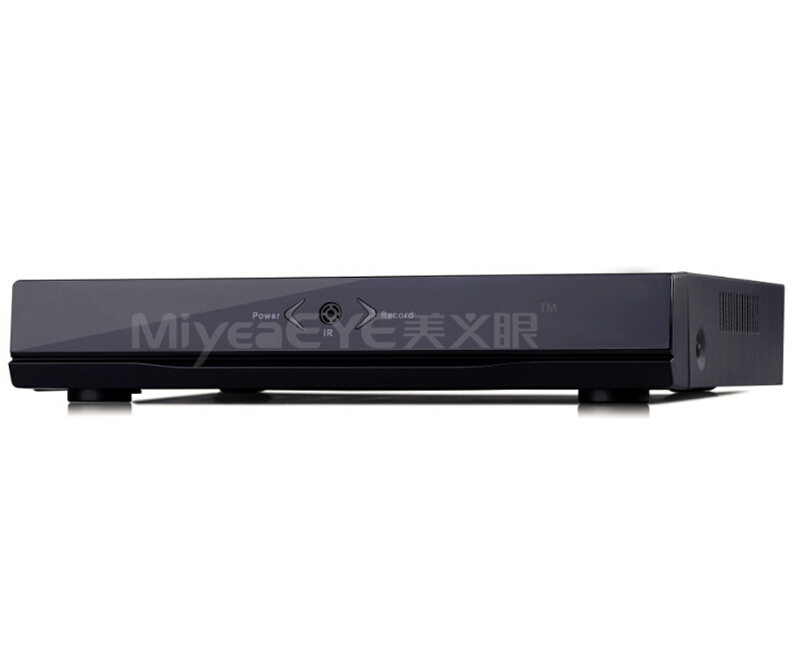

H.264 1080P 16CH Network DVR
Specifications:
1.4/8/16/24ch 1080P
2.HDMI /VGA output
3.support 2HDD(Max. 3TB HDD)
4.P2P cloud function
5.support ip camera
Dimension(310*45*200MM),support connecting protocal onvif 2.0 IP cameras
Features:
|
Model |
N2016-SA2 |
|
|
Compression |
Preview capability |
16ch 1080P |
|
|
Compression frame rate |
5/10/15/20/25/Fps |
|
Monitoring |
VGA Resolution |
1024×768,1280×1024,1920×1080 |
|
|
Video output |
1ch VGA,1ch HDMI,1ch BNC |
|
Peripherals |
USB Repair |
support |
|
|
USB port |
2 port,USB2.0 |
|
|
Audio output |
support |
|
|
Control equipment |
mouse,remote control,front panel |
|
|
Remote control |
Support to turnon/ off |
|
Storage |
SATA |
Support 2 HDD ( biggest is 3TB/ HDD) |
|
|
USB(Backup) |
Support Usb/Mobile hard disk,FAT32 format |
|
|
File Format |
Journal:*.txt,picture:*.bmp, video:*.MP4 |
|
|
Log quantity |
2000 |
|
Play back |
Search prime mode |
Channel number / Video Type / Date (alone or in combination queries) |
|
|
Playback mode |
4ch 1080P/4ch 960P/4ch 720P |
|
Security |
Number of users |
64 local user/64 wan user (user name : admin,password : blank ) |
|
|
Authorization control |
Access control |
|
Network |
Ethernet |
RJ-45 interface,10M/100M/1000M |
|
|
MAC display |
support |
|
|
Protocol Support |
TCP/IP,DHCP,UDP,SMTP,NTP |
|
|
Client Monitoring |

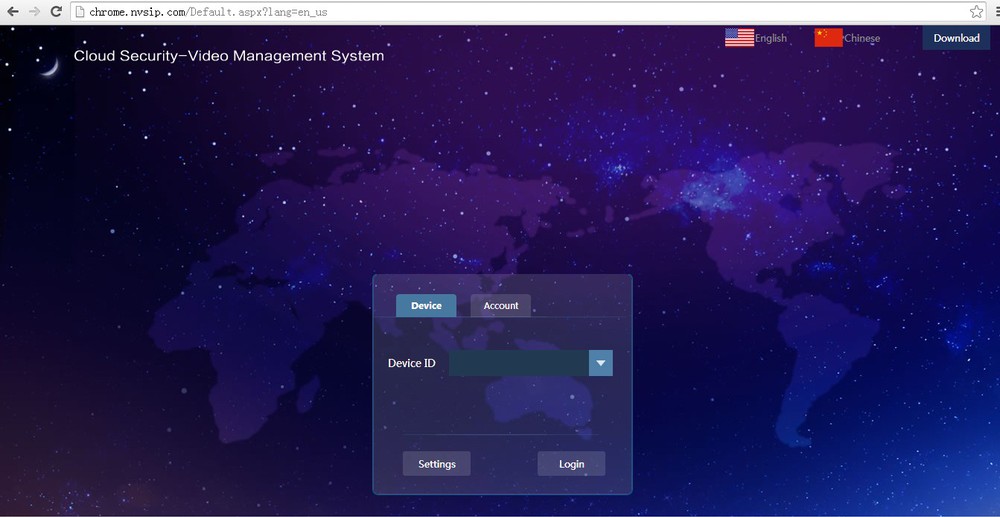

CMS,WebCC |
|
|
input |
Alarm box |
|
|
output |
Alarm box |
|
|
Video loss alarm |
support |
|
Alarm/cloud |
Warning shots |
support |
|
|
Notification method |
Buzzer / alarm equipment / Client / email alarm |
|
|
The number of message recipients |
4 |
|
|
PTZ Preset |
128 |
