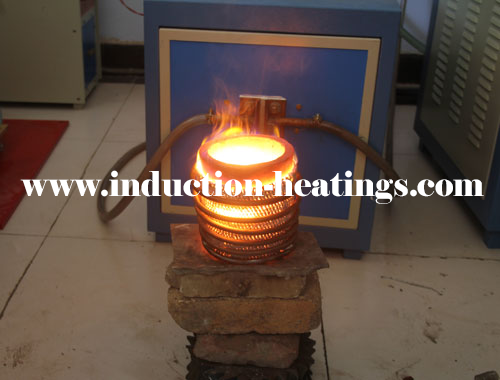

Features of cutting pick hardening high frequency induction hardening machine:
1. Compared with controllable silicon frequency machine, our induction hardening machine is of small size, easy maintenances, and can save power by approximately 15 - 20%.
2. When heating a whole piece of material, the length of induction coil can be made from 500mm - 1m, when heating multiple pieces, better penetrating results can be guaranteed.
3. Good reliability, IGBT is a self turn-off transistor that ensures inversion with success and takes protection instantly; IGBT used from Infineon- world-renowned manufacturer
4. Greater thermal efficiency - heat is generated in the part itself and does not need to be heated in a large chamber.
5. The automatically frequency tracking technology enables power factor to remaining high level throughout heating process.

Application of cutting pick hardening high frequency induction hardening machine:
1. Hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear
2. Electric tools, such as gear and axes.
3. Quench for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear.
4. Quench for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
5. Heat treatment of parts surface. Such as gears, shafts, spline shaft, camshaft, hand tools, electric power tool, pipes, etc.
6. Hardware molds, such as small-size mold, mold accessory and inner hole of mold.

Parameters of cutting pick hardening high frequency induction hardening machine:

Model	WH-VI-80KW	Input Power	80KW
Input Voltage	342V-430V	Input Current	130A
Cooling Water Flow (host)	28L/min(0.3mpa)	Cooling Water Flow (transformer)	20L/min(0.3mpa)
Oscillation Frequency	15-35KHZ	Cooling Water Pressure	0.1-0.3Mpa
Host Size	650×520×1100mm	Transformer Size	500×800×580mm
Host Weight	80±5%kg	Transformer Weight	77±5%kg
Temperature Protection	50℃	Efficiency	100%
