| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Certification: | CE |
| Weight: | 1300kg |
| Dimension(L*W*H): | 3.1*2.2*1.7m |
| Power(W): | 3.2kw |
| Voltage: | 220v |
| Brand Name: | DLTECH |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| effective working area: | 1300*2500*300mm |
| driver motor: | YAKO stepper motor |
| drive mode: | XY rack and pinion,Z ball screw |
| inverter: | yes |
| machine table: | vacuumt table and T slot combined |
| vacuum pump: | air cooled |
| auto tool sensor: | yes |
| control system: | mach3(optional) |
| valtage: | 220v/380v |
| color: | blue and white(optional) |
Quick Details
Specifications
01 this machine has been tested for 76 hours in continuous working
02 300mm z axis clearance make it more widely used
03 YAKO stepper motor and driver,high stabilidity
04 mach3 system with handwheel
|

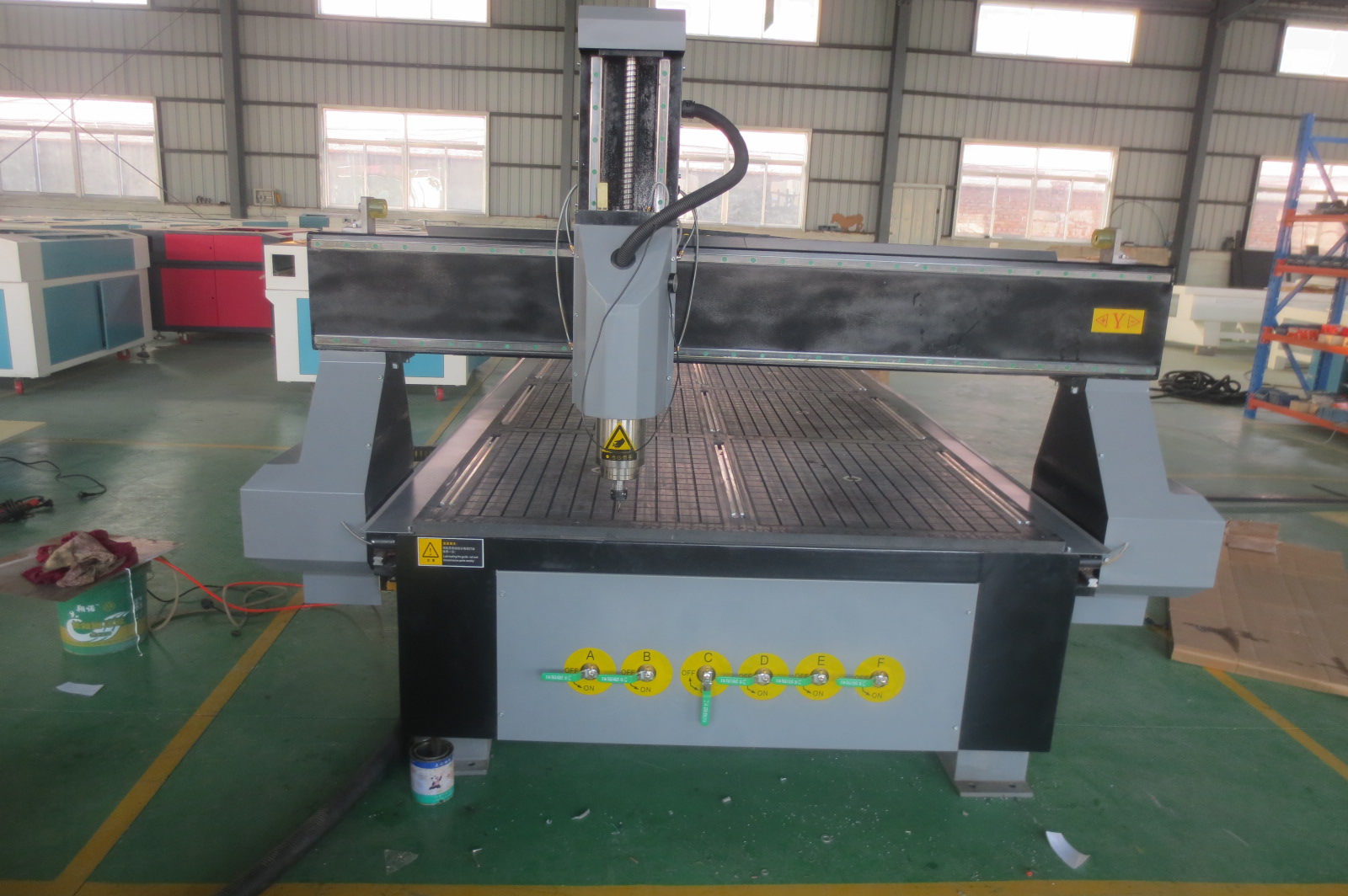

Model |
DL1325 |
|
Working area |
1300*2500*300mm |
|
spindle |
3.0 kw |
|
Limit switch |
Yes |
|
Invert |
Fuling invert |
|
Control system |
Mach3,4 aixs card with handwheel |
|
XY axis |
Imported Taiwan HIWIN helical rack and pinion |
|
Z axis |
Ball screw drive |
|
Drive motor |
YK86HB118-06A |
|
Driver |
YAKO2811MA |
|
Working table |
Vacuum table and T-slot combined |
|
Driving model |
XY rack and pinion drive,Z ball screw drive |
|
Vacuum pump |
Two sets 2.2kw air pump |
|
Hand oiler |
Yes |
|
Max cutting speed |
20m/min |
|
Max engraving speed |
35m/min |
|
Voltage |
AC220V/50Hz,single phase |
|
Machine body |
Heavy duty machine bed (three legs design) |
|
Package dimension |
3.89*2.26*1.51m |
|
Net weight/Gross weight |
1300kg/1500kg |
|
warranty |
12 months |
