| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 18 months |
| Certification: | CE |
| Weight: | 1500kg |
| Power(W): | 9.0kw air cooled |
| Voltage: | 220v/380v |
| Brand Name: | DLTECH |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| effective working area: | 1300*2500*200mm |
| rotary axis: | yes |
| control system: | SYNTEC 6MB |
| spindle: | 9.0kw air cooled |
| machine table: | vacuum with T-slot combined |
| drive motors: | YAKASWA |
| inverter: | delata |
| machine bed: | heavy duty design |
| color: | optional |
| voltage: | 220v/380v |
Quick Details
Specifications

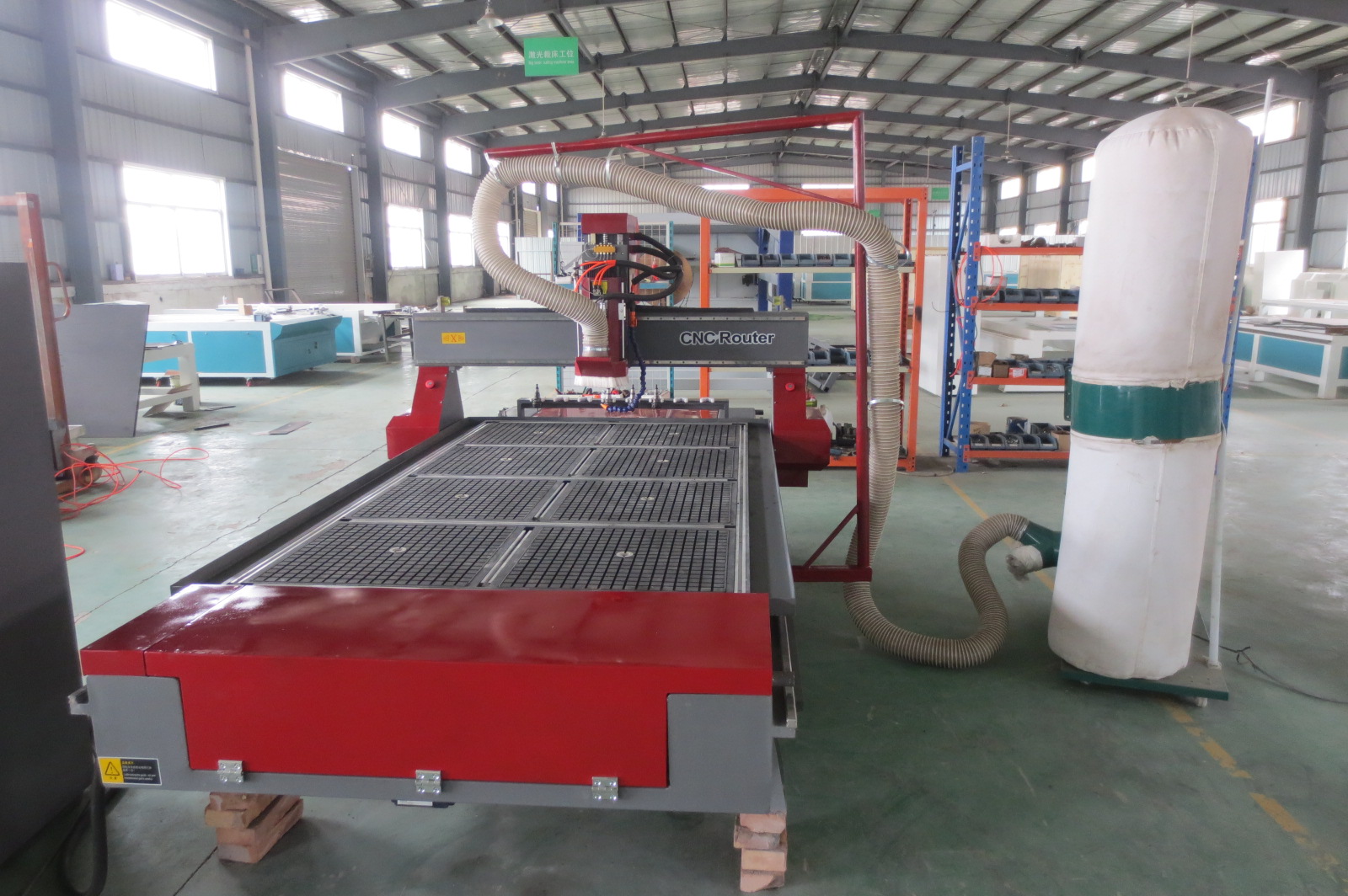

High quality ATC cnc wood router with competitive price
1. Air cooling spindle----9 KW HQD air cooling spindle.Our domestic Well-known brands ,long working life,low noise,strong cutting ability to ensure the long time working.Compared to HSD,this brand lower price,but also good to use.
2.NK260 control system----Easy operation. Support offline operation,more table.(Optional :Syntec control system)
3. Taiwan delta servo motor----High-performance drive motor to ensure that the machines high speed and accuracy.(Optional: Japan Yaskawa servo motor)
4. HIWIN linear rail 25# from Taiwan ----Smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.
5. Vacuum & T-slot combined worktable----Can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF boardon it for protection.
6. Helical rack transmission----Ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.
7. Carrousel Tool Magazine(ATC 1325 cnc router)---- With 8 tool holders and 8 tool forks,can save working time and will work so convenient. Can also choice the 6 or 10 tool holders and forks.
|
Model |
5'x12' ATC cnc router |
|
X,Y,Z working area |
1600*3700*300mm |
|
Drive motors |
Delta servo motor(imported from Taiwan) |
|
spindle |
5.5kw water cooled ATC spindle |
|
Inverter |
Delta (imported from Taiwan) |
|
Control system |
NCSTUDIO control system |
|
Machine table |
Table surface-bakelite combined Aluminum T -slot extrusion, vacuum table |
|
X, Y, Z Travelling Potioning Accuracy |
±0.02/300mm |
|
X, Y, Z Travelling Repositioning Accuracy |
±0.02mm |
|
Frame |
Big thickened Steel Square Tubes, thickness up to 8mm |
|
X, Y structure |
Rack and pinion drive, Hiwin square rail linear bearing 20mm |
|
Z axis structure |
Germany imported ballscrew and Hiwin square linear rail 20mm |
|
Max Rapid Travel Rate |
32,000mm/min |
|
Max working speed |
20,000mm/min |
|
Working voltage |
AC380V, 60Hz/50hz, 3 phase |
|
Command languages |
G code |
|
Limit stop |
Hard limit stop ,electronic limit stop |
|
Cutter diameter |
3.175-12.7mm |
|
Automatic tool change time |
8 seconds |
|
Vacuum pump |
15kw |
|
Cw5000 water chiller |
Yes |
|
Dust collector |
Two bags |
|
Package size |
2.2*4.5*1.9m |
|
package |
In one wooden case |
|
Gross weight |
2000kg |
|
Net weight |
1800kg |
