| Brand Name: | lensen |
|---|---|
| Wavelength: | 433 |
| Data Rate: | 9600bps |
| warranty: | 1 year |
| Connector: | serial |
| Model Number: | LS-U100 |
| Place of Origin: | China (Mainland) |
| Working Frequency: | 433, 450, 470, 868, 915 or ISM others |
| Type: | Other |
| power output: | 100mW |
| Freuquency: | 433MHz |
| Control Distance: | 1KM LOS |
Quick Details
Specifications
Parameter:
●Power output: 5V DC
●RF power: 100mW
●Air baud rate: 1,200/2,400/4,800/9,600/19,200bps choose one
●Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps programmable
●Frequency band: 433, 450, 470, 868, 915 or ISM others
●Interface: RS-232/RS-485/TTL
●Communication mode: half-duplex
●Channel: 8(default), 16/32(customized)
●Receive current: <40mA(TTL connect)
●Receive sensitivity: -123dBm @ 1,200bps); -118dBm @ 9,600bps)
●Transmitting current: <100mA
●RF line-of-sight range: 600m (BER=10-5@9600bps);
1,000m (BER=10-5 @ 1,200bps)
●Size: 47 x 26 x 10mm (without antenna port)
Application:

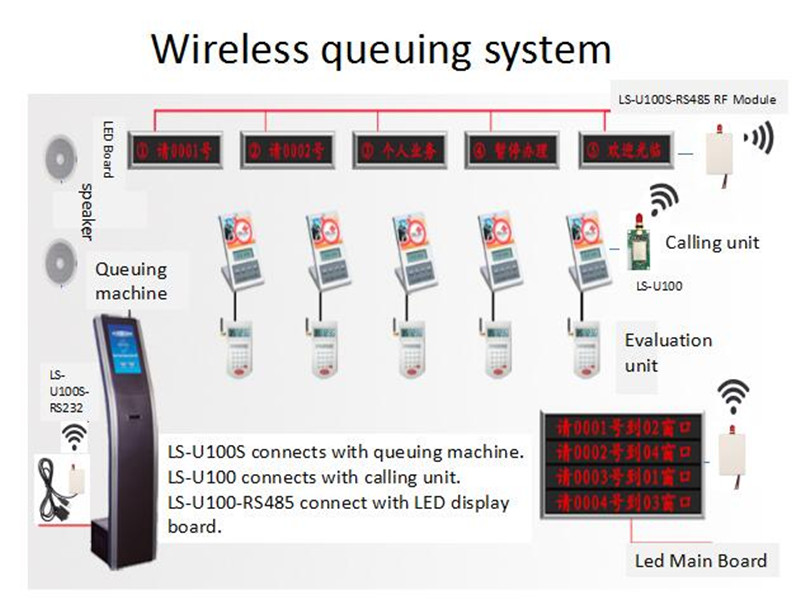

Queuing machine wireless control
LED display/ LED sign
Factory automation
Handhold device
Irrigation system
RS485 to wireless
Robotics control
Home automation
Pin Definition (9 pin)
Pin No. |
Signal Name |
Function |
Level |
Connection with terminal |
Remarks |
1 |
GND |
Grounding of power supply |
|
Ground |
|
2 |
VCC |
Power supply DC |
+3V ~5.5V |
|
|
3 |
RxD/TTL |
Data receiving |
TTL |
TxD |
|
4 |
TxD/TTL |
Data transmitting |
TTL |
RxD |
|
5 |
SGND |
Signal |
|
|
|
6 |
A (TXD) |
A of RS-485 (TxD of RS-232) |
|
A(RxD) |
|
7 |
B (RXD) |
B of RS-485 (RxD of RS-232) |
|
B(TxD) | |
8 |
SLEEP |
Sleep control |
TTL |
Sleep signal |
Low level valid |
9 |
TEST |
Factory testing |
|
|
|
