| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | one year |
| Certification: | CE |
| Weight: | 1100KG |
| Dimension(L*W*H): | 3.1*2.08*1.8M |
| Power(W): | 4.5KW |
| Voltage: | 380V,single phase |
| Model Number: | DL2030 |
| Brand Name: | DLtech |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| Working area: | 2000*3000*200mm |
| spindle: | 4.5KW air cooling spindle |
| guide rail: | HIWIN linear square guide rail for XYZ axes |
| transmission: | XY-gear and rack,Z-ball screw |
| Driving system: | Leadshine Stepper motor 450B and driver 860 |
| Control system: | Mach3 |
| Lathe bed: | Square tube welding lathe bed |
| Inverter: | 5.5kw Fuling Inverter |
| Software: | Type3 Software |
Quick Details
Specifications

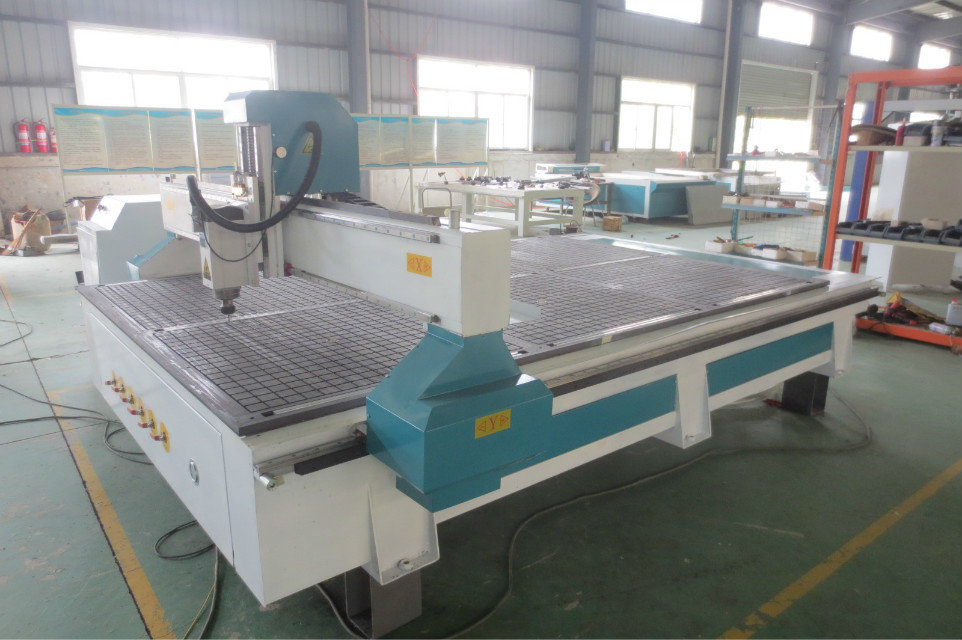

Jinan hot sale and promotion price DL2030 wood carving cnc router china cnc router
Machine feature of china cnc router
1. 1325 cnc router wood body is seamless steel structure, good stability.

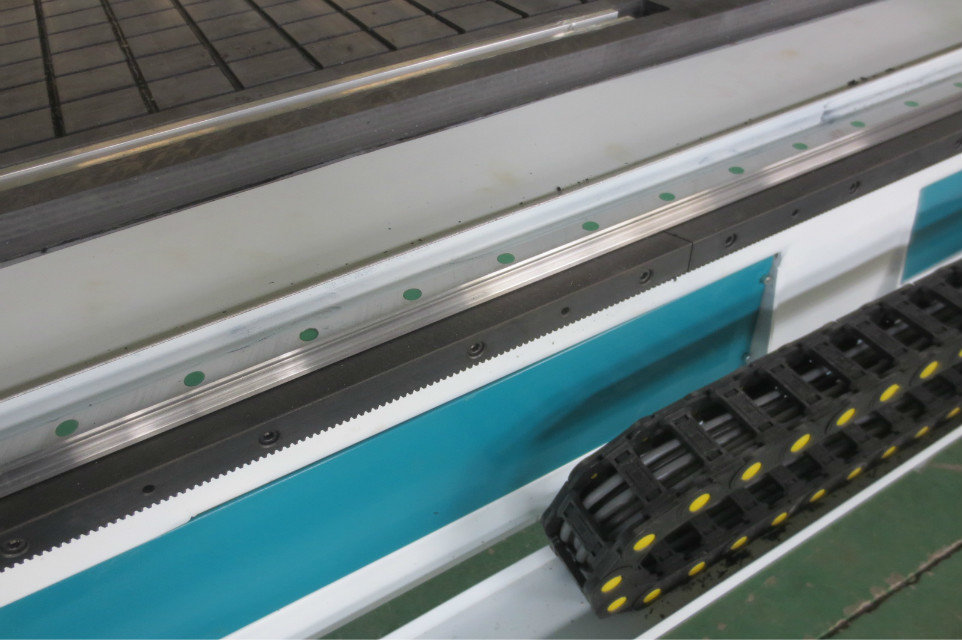

2. 1325 cnc router adopts Taiwan HIWIN high precision linear square guide rail,Z axis adopts Germany and Taiwan ball screw,with high precision.X and Y axes adopt rack and pinion transmission, fast working, high efficiency
3.Good software compatibility, such as: Type 3 / Artcam / Castmate / Wentai, etc.
4.Re-carving function: keep work continues after break point and power failure.
5.china cnc engraving machine 1325 cnc router wood has perfect oil-inject system makes maintenance much easier.
6. Along with the machine, some?spare parts, work fixtures and tools will be packed into the tool box.
Application of china cnc router
1. Applicable for wood furniture ,wooden crafts processing industry, suitable for large panel cutting,large relief carving products and large carpentry engraving.
2. Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
3. Applicable material: solid wood panel, artificial board,Acrylics,PVC,MDF,Glass Plexiglass, plastic .etc non-metal panels.

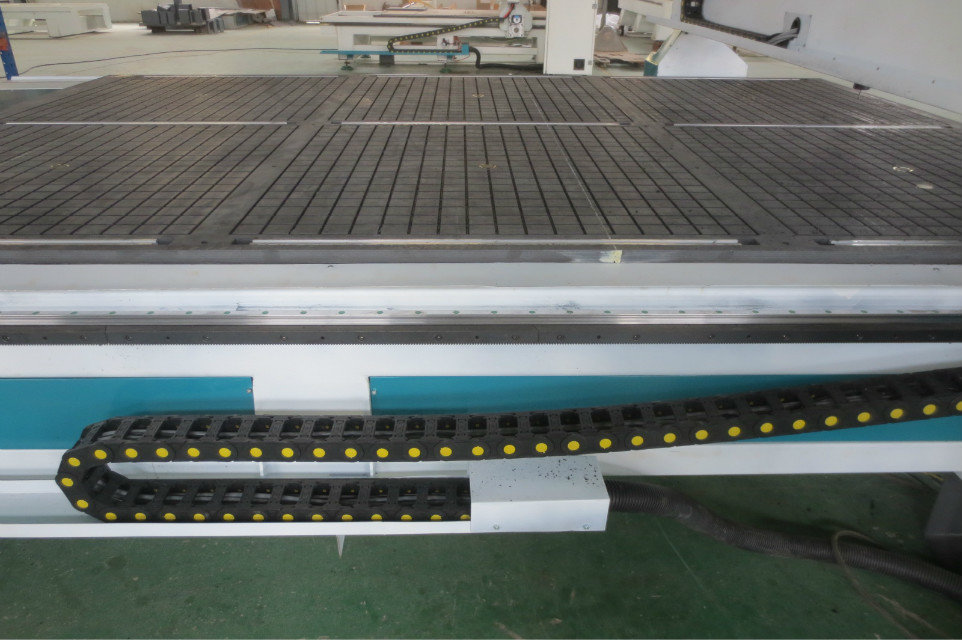

Some parts of china cnc router
Technical Data of china cnc router
|
Effective working area |
2000(X)mm*3000(Y)mm*300(Z)mm |
|
Max. thickness of the materials |
≤300mm(the distance between Z-axis and the bottom of the working station) |
|
Materials |
T bed |
|
Worktable |
Vacuum adsorption mesa+ T slot |
|
Cooling system |
Air cooling |
|
Guide rail |
Linear round guide rail (or square) |
|
Transmission |
Gear and Rack for XY axes Ball screw for Z-axis |
|
Driving mode |
Leadshine Stepper motor 450B and 860 driver |
|

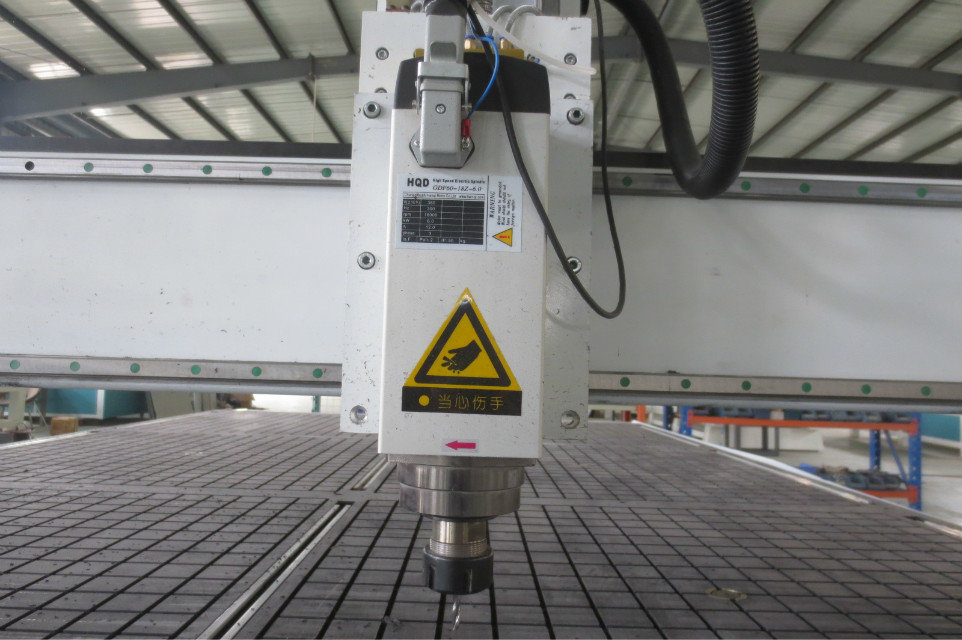

Spindle motor |
HQD 4.5kw air cooling spindle (or higher) |
|
Spindle speed |
0-24000rpm/min |
|
Vacuum pump |
Boshan vacuum pump 5.5KW |
|
Empty traveling speed |
0-25000mm/min |
|
Engraving speed |
0-10000mm/min |
|
Resetting accuracy |
0.05mm |
|
Control system |
DSP controller with handle |
|
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
|
Software environment |
Windows 2000/ XP/WIN 7 |
|
Packing size |
3890*2260*1830mm |
|
Gross weight |
1600kg |
