| Application: | Laser Cutting |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Model Number: | 1390 |
| Brand Name: | donglian |
| Place of Origin: | China (Mainland) |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Control Software: | laser cut 6.1 |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Thickness: | 2mm metal |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Metal,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Laser Type: | CO2 |
| Condition: | New |
| motor: | china best chuangwei stepper motor |
| driver: | leadshine |
| laser tube: | co2 laser tube |
| laser power: | 80w |
| air pump: | standard parts |
| water pump: | standard parts |
| fan/exhaust: | standard parts |
| control system: | letrol lasercut6.1 |
| machine color: | optional |
| water chiller: | optional |
Quick Details
Specifications

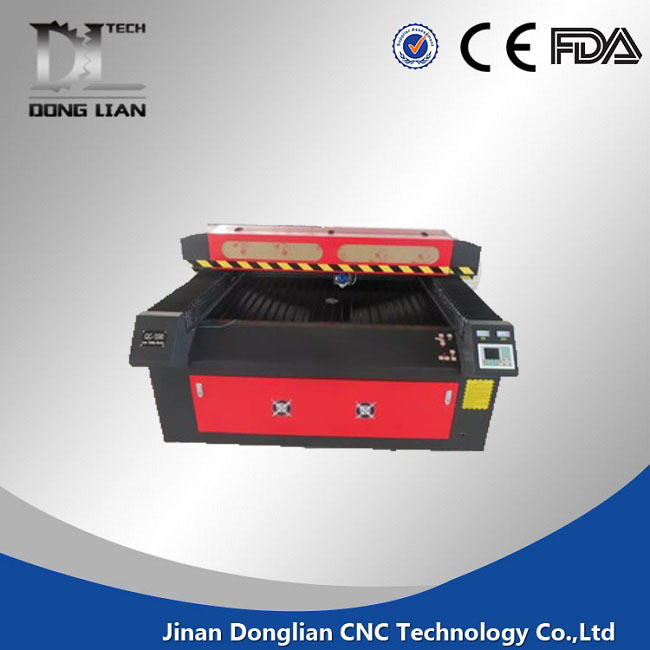

co2 cnc laser cutting machine for metal and nometal plastic advertisement
|
Model |
1390 metal and nometal laser cutting machine |
|
Engraving and Cutting Area |
1300*900mm |
|
Tube type |
130w Co2 laser tube (150w optional) |
|
Laser wave |
10.6um |
|
Cooling |
Pure water |
|
Engraving Speed |
0-10,000mm/min |
|
Cutting Speed |
0-5,000mm/min |
|
Reposition Accuracy |
±0.01mm |
|
Minimum Character Size |
English:1mm ; Arabic numbers:1mm |
|
Resolution |
4,000 dpi |
|
File output mode |
2.0 USB interface |
|
Machine Power |
<2,000W |
|
Support Format and Compatible Software
|
PLT,DST,DXF,DWG.CDR, AI, CorelDraw, AutoCAD, Photoshop
|
|
Working Environment Temperature |
0-45°C |
|
Drive system |
Leashine Stepper motor and drivers |
|
Control system and control software |
DSP offline control system,Laser cutter 6.1 |
|
Exhaust smoke system |
Big exhaust fan |
|
Working Voltage |
AC220V,50HZ/60HZ |
|
Warranty time |
1 year for machine ( 300 days for laser tube) |
|
Package |
standard plywood wooded case |
|
Packing size |
2050*1650*1250mm |
|
Delivery time |
5-8 working days after received the deposit |
Applicable Industry:
1.Engraving beautiful patterns and words such as wood,bamboo.ivory,bone,leather,marble,shell.
2.Mainly used in large plastic character cutting,color plate engraving and cutting,sign engraving,
crystal engraving,trophy engraving,authorzation engraving etc.
3.Leather clothing processing industry:can engraving and cutting complex patterns on genuine synthetic leather,woolens,clothing ,furnishing,glove,handbag,model and Aircraft Model,etc.
4.Model industry:production of construction sand table model and Aiacraft Model,etc.ABC plate cutting,MLB cutting.
5.Packing industry:Engraving and printing rubber plate,plastic plate,duble board,die cut paper,etc.
Applicable Material:
Cloth,leather,fur,acrylic,plexiglass,wooden board,plastic,rubber,bamboo, metal( stainless steel)
