| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | one year |
| Certification: | CE |
| Weight: | 400KG |
| Dimension(L*W*H): | 1.55*1.45*1.8M |
| Power(W): | 2.2KW |
| Voltage: | 220V,50-60HZ,single PH |
| Model Number: | DL6090 |
| Brand Name: | DLTECH |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| Working area: | 600*900*200mm |
| Spindle: | 2.2KW water coolig spindle |
| Worktable: | Aluminum profile mesa+PVC covered |
| Guide rail: | HIWIN linear square guide rail 20mm |
| Transmission: | XY-gear and rack,Z-ball screw |
| Lathe bed: | Square tube welding lathe bed |
| Inverter: | 2.2KW Rituo |
| Driving system: | Stepper motor 450B and Leadshine stepper driver MA860H |
| Control system: | Mach3 control system |
| Color: | Blue |
Quick Details
Specifications
Jinan Factory Professional Advertising mini cnc 6090 router Mini Desktop CNC Router

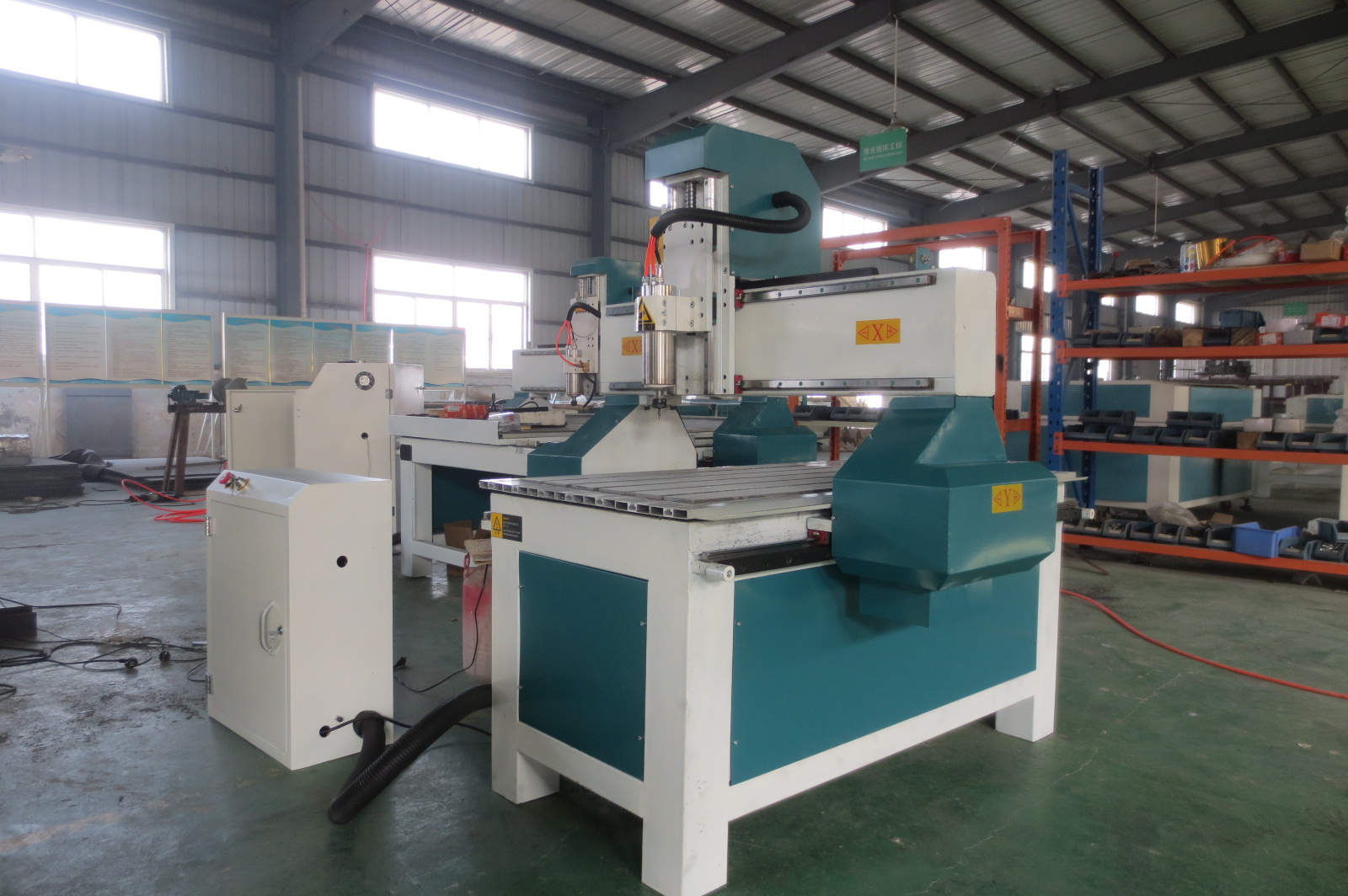

Machine pictures
Feature of mini desktop cnc router
1. Whole cast-iron structure, steady structure, high rigidity,precision 0.01mm.
2.Three axis all use Germany ball screw and Taiwan linear orbits, also installed with Japan bevel math bearing for ball screw to make sure the accuracy and reposition precision.
3.Adopt table movement to keep stable.
4.Adopt high-speed water cooling variable frequency motor, big torque, strong cutting, high-frequency , long life, can be long time continuous working
5.Adopts high-end configuration, cast iron structure, Germany ball screw, and use table
movement to keep machine stable.
6.This model is desktop, we can also make it big with frame which can stand in workshop.
Machine pictures
Mini desktop cnc router Performance parameters
|
Model |
QC-6090 |
|
X,Y-axis working area |
600*900mm |
|
Z-axis working area |
100mm |
|
Table size |
750*1200mm |
|
X,Y, Z structure |
X, Y, Z ball screw |
|
Guide Rail |
Linear round guide rail |
|
Max Speed |
20m/min |
|
Max. Working Speed |
6-8m/min |
|
Reposition precision |
0.005mm |
|
Working delicacy |
0.05mm |
|
Work holding |
T slot with clamp |
|
Operation system |
DSP/Ncstudio system optional |
|
Spindle Power |
1.5kw (2.2KW/3.2KW/3.7KW optional) |
|
Power (not including spindle) |
1500W |
|
Spindle rotating Speed |
0-24000rpm/min |
|
Cooling way |
water cooling/air cooling |
|
Working Voltage |
220V/50Hz/single phase |
|
Command Code |
G code,U00,mmg |
|
Drive Motors |
Stepper motor 450A and Leadshine stepper driver 542 |
|
Surroundings for software |
Windows98/2000/XP |
Mini desktop cnc router machine sample pictures show:

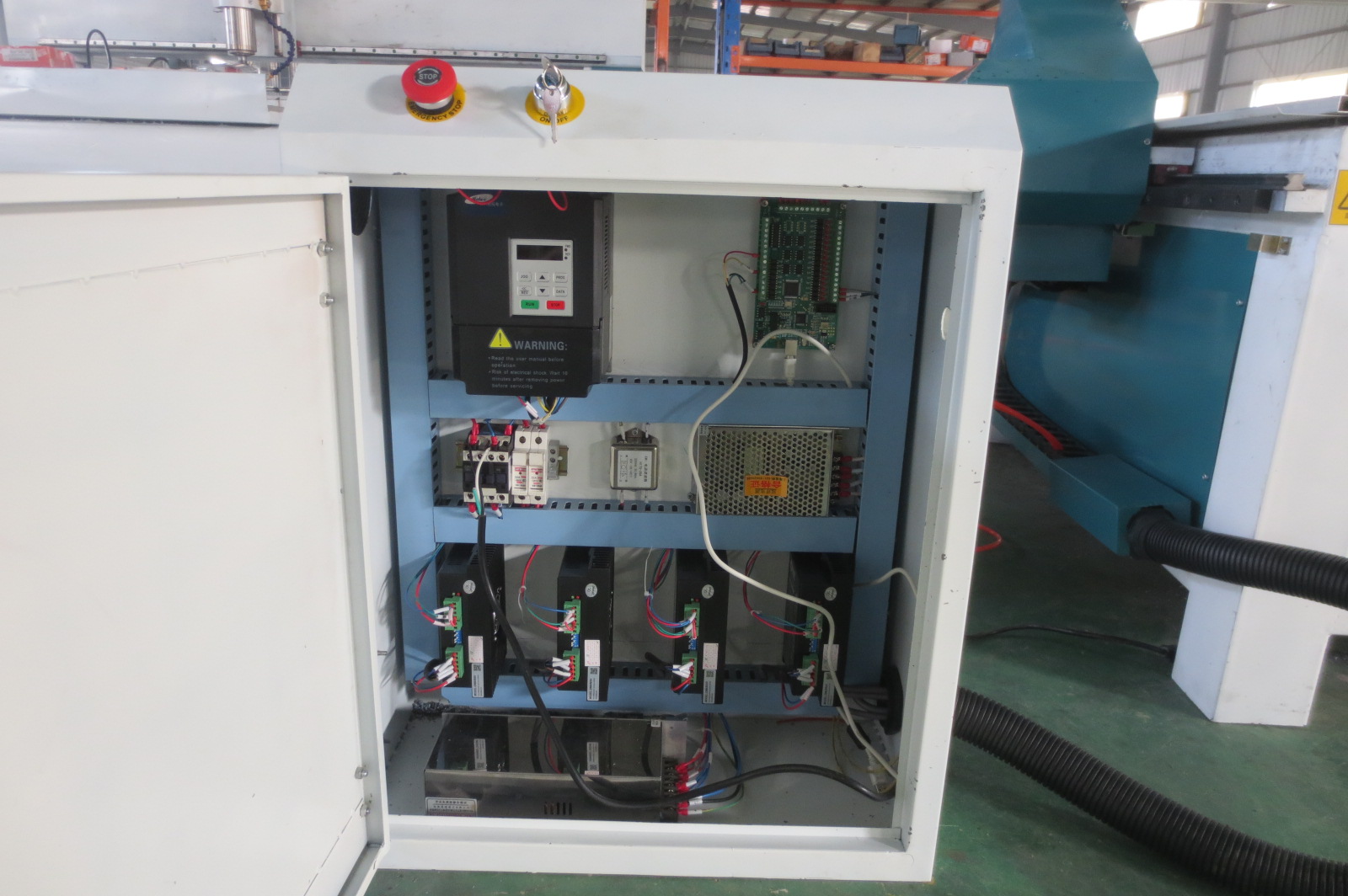

Machine main parts:
Please let us know the follow information when enquiring:
1. Which material do you need to cut ?
2. What is the size and thickness of the material?
3. What is your business industry ?
We will suggest you the suitable model and specification.
(1). The engineers of the original factory are available to do all kinds of
the original factory are available to do all kinds of oversea machinery service. In some countries, we have oversea agents doing after-sale service in time and professionally.
(2). we also offer 24 hours heart to heart service on-line or mobile.
(3).Your technologists could attend the training in our factory and on-line which be free of change
(4).The warranty of CNC machine is 24 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.
(5). We offer you best agent price and distribute price for our further cooperation .
(6). we can offer special custom-made according to your request.
Paking and shipping:
Outside Package:Standard export wooden cases
Inner package:strech film
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
