| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | one year |
| Certification: | CE |
| Weight: | 1300KG |
| Dimension(L*W*H): | 3.1*2.08*1.8M |
| Power(W): | 4.5KW |
| Voltage: | 380V,50-60HZ,3PH |
| Model Number: | DL1224 |
| Brand Name: | DLTECH |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| Working area: | 1200*2400*200mm |
| Spindle: | 3.2KW water coolig spindle*2 |
| Worktable: | Aluminum worktable+water sink |
| Guide rail: | HIWIN linear square guide rail 20mm |
| Transmission: | XY-gear and rack,Z-ball screw |
| Lathe bed: | Square tube welding lathe bed |
| Inverter: | 5.5KW Fuling |
| Driving system: | Stepper motor 450B and Leadshine stepper driver MA860H |
| Water channel: | Stainless steel |
| Control system: | NC-Studio |
Quick Details
Specifications
QC1224 with water sink machine engraving on metal metal cnc router cnc router metal cutting machine

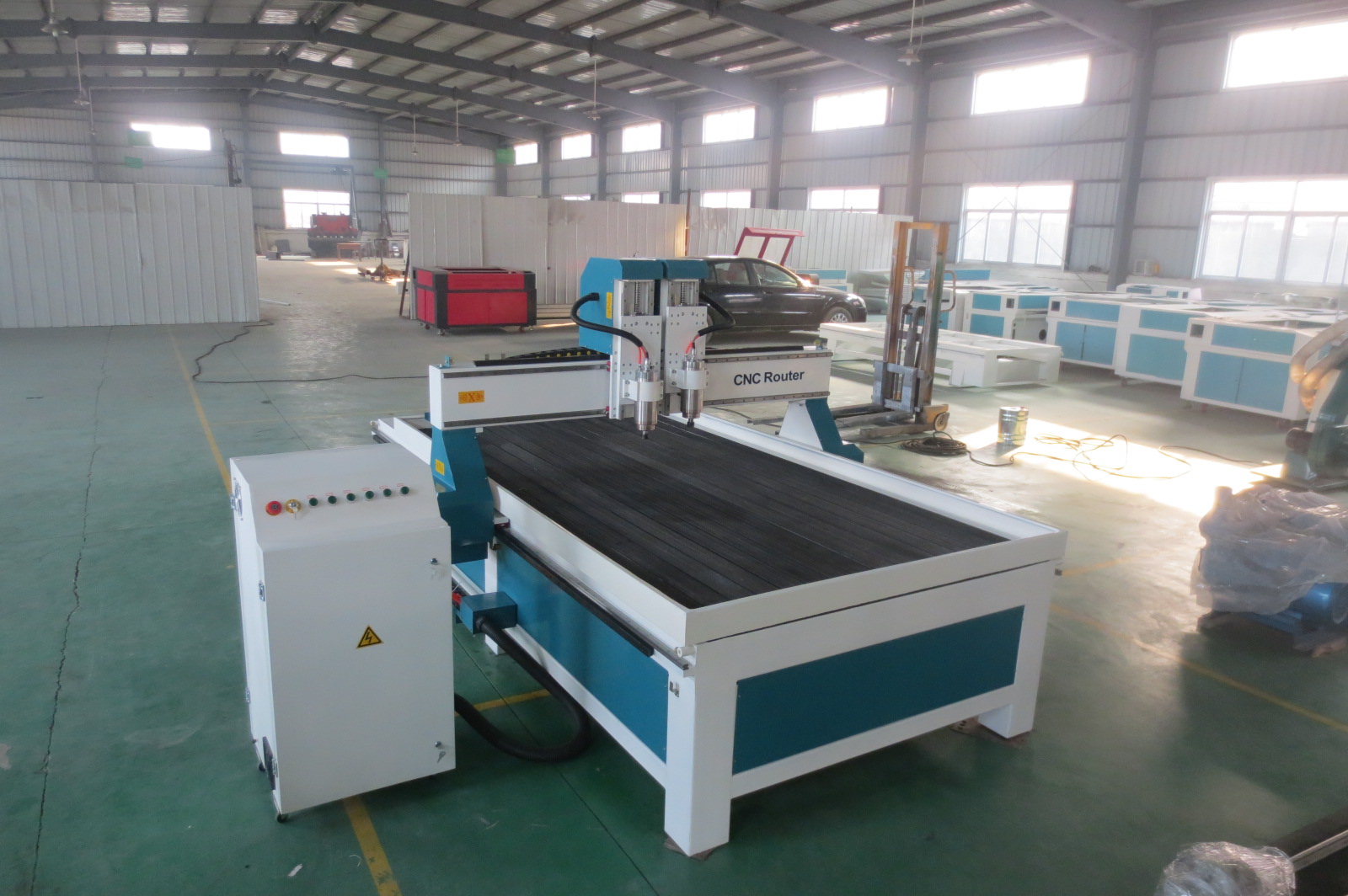

No.1 Machine pictures
No.2 Features:
1. Whole machine is welded with thick square seamless steel structure; the stability is excellent, not easy to be deformed.
2. Three axes adopt high precision square orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts ball screw,with high precision and long life time.
3. High power spindles have constant power, low noises and super strong cutting force, which improve working efficiency greatly.
1) Heavy duty frame:
2) Water cooling spindle (standard one, air cooling spindle is optional one):
3) Control box and clear circuit

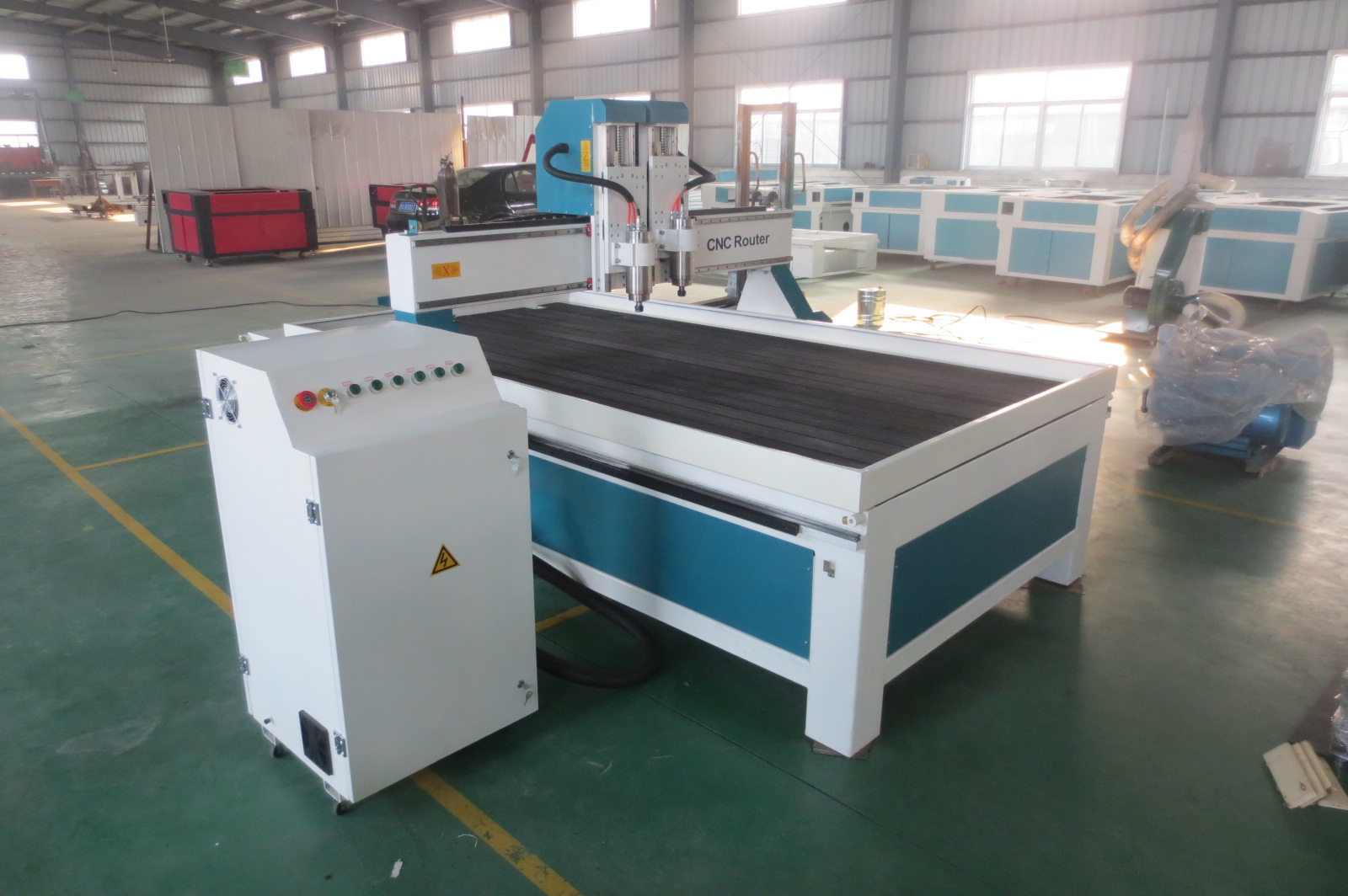

No.1 Machine pictures
No.2 Features:
1. Whole machine is welded with thick square seamless steel structure; the stability is excellent, not easy to be deformed.
2. Three axes adopt high precision square orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts ball screw,with high precision and long life time.
3. High power spindles have constant power, low noises and super strong cutting force, which improve working efficiency greatly.
4. Famous brand drivers and motors have characteristics such as powerful strength, fast processing speed.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/ Castmate/Wentai etc
6. Has the function of re-carving after break point and power failure.
7. Has the function of forecasting process time.
8. Perfect oil lubrication system makes maintenance much easier. And electric limit switch on all axis, make sure machine running well.
1) Heavy duty frame:
2) Water cooling spindle (standard one, air cooling spindle is optional one):
3) Control box and clear circuit
Technical Performance of cnc router wood carving machine for sale
|
Industry |
Products |
|
Furniture Industry |
1)doors 2)cabinets 3) tables 4) chairs |
|
Advertising Industry |
1)signage(road, door, office) 2) logo |
|
Artwork and Decoration Industry |
1) wood craft 2) gift box 3) jewelry box |
|
Art Designing |
1) Model 2) Buddha 3)Cartoon statue 4) Other Cylinder Materials |
|
Name |
QC-1224 |
|
Dimension |
3100mm*2000mm*1700mm |
|
Netto Weight |
800kg |
|
Voltage |
AC 220V,50-60HZ,single phase |
|
Power |
3.0kw |
|
Working Area |
1200mm*2400mm*200mm |
|
Working precision |
<0.05/300min |
|
Max. cutting speed |
10m/min |
|
Max. engraving speed |
12m/min |
|
Input order |
G code |
|
Spindle |
Water cooling spindle with 3kw power |
|
Spindle RPM |
6000-18,000rpm |
|
Shank diameter |
3.175/6.0/12.7 |
|
Driver |
Leadshine steppper driver |
|
Motor |
Leadshine stepper motor |
|
Frequency converter |
Shenzhen Sunfar |
|
Dust collection device |
3.0kw binocular |
|
Control system |
Ncstudio |
|
Support software |
cnc engraving software,CAD,CorelDRAW,Type3 |
|
Rack type |
Imported from Germany |
|
Guide rail |
20mm linear square rail |
|
Warranty |
1 year, not including consumable itemd like knife tool and collet |
