1.Muti-Function:Cut & Engrave

CO2 laser cutting machine use to fine cut /engrave/hollow out on many different type ofnonmetallic materials with intricate shapes,graphics,text and logos



If your material is not on the above list, please kindly contact us to confirm. Margret is always to be at your Service.

3.CO2 Laser cutting machine Price good and widely applied in many industry

Apparel,leather,Advertising,decoration,furniture,model,craft industry

Features:



1.Adopt constant power water-cooled frequency spindle, high speed, low noise and long life.



2.Three axises adopt precise ball screw transmission, reasonable structure, stable performance, good weight bearing ability.



3. This machine is mini machine, low price, high performance, especially suitable for home and small enterprises,institutions to do processing.



 Technology date



Model	QC6090	optional
X-Y axis travel	600*900mm	Customer's requirement
Z axis travel	200mm	More higher
Motion speed	>25m/min
Work table	Vacuum absorbing
Control system	DSP hand control	Korihiro system
Manner of receiving date	USB
Engraving indicate	G code
Work voltage	AC 380V
Spindle power	4.5KW(water cooling made in china)	1.5kw  2.2kw  3.0kw  5.5kw (made in china)
Spindle rotating speed	0-24,000rpm/min
Drive Mechanism	X /Y axis  Rack and pinion Z   axis   ball screw
Accuracy	±0.02mm
Running circumstance temperature	0 - 45°C
Relative humidity	30% - 75%
Vacuum power	5.5KW
Dust collector power:	3KW



Applicable industries

1.Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.

2.Advertisement: engraving and cutting various labels and number plate.

3.Art craft: engraving characters of any languages and graphics on gifts and souvenirs

 Applicable materials

    Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials



.CO2 Laser Cutting Machine Features

1. CO2 Glass sealed laser tube

(China famous brand,Good beam mode stability,service time over 6000~10000 hours)

2. Laser Power

     good quality and stable power output to extend the laser tube service time.
3. Imported II-VI ZnSe focus lens( High transmittance,good focusing effect and stability

4.DSP control system
   USB interface,support online/offline work,English language system,Adjustable cutting speed and power
5.Japan Stepper motor drive and belt transmission

6.Linear guide rails:Taiwanese made famous
7.Industrial Cooling System
the constant water temperature,ensure laser tube a longer service time and high stability

8.Exhaust Fan: exhaust dust and smoke device

9.Electical Magic Air compressor: the huff protection,protect the laser head focus lens clean

10.Emergency Stop

11.  Honeycomb or Slatted worktable optional
       Honeycomb worktable for cutting fabric leather etc soft material
       Aluminum knife worktable for cutting acrylic etc hard material

12. Routeway feeding:allow users of roll material with unlimited length
13.Optional up & down adjustable worktable:Can engrave & cut different height materials

14.The alarm device optional

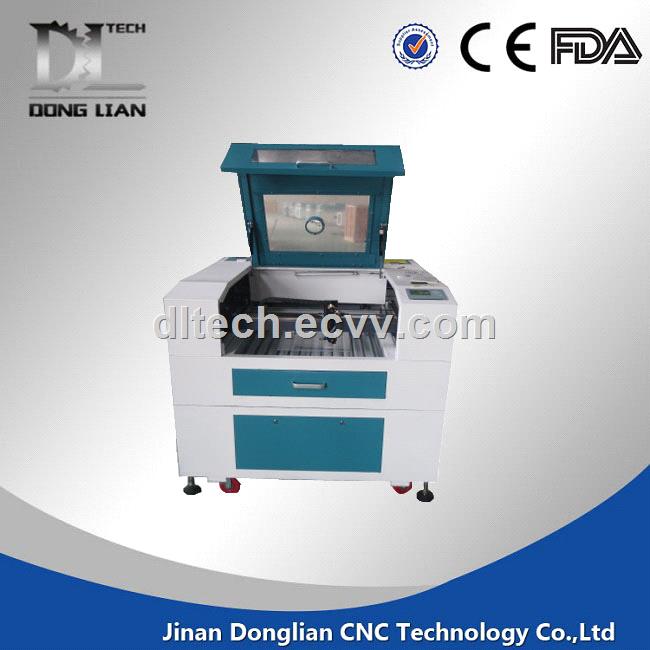

15.Portable laser cutting machine: with wheels , easy to move and fixed
