| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 18 months |
| Certification: | CE |
| Weight: | 1500kg |
| Power(W): | 9.0kw air cooled |
| Voltage: | 220v/380v |
| Brand Name: | DLTECH |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| effective working area: | 1500*3000*200mm |
| ormon limit switch: | yes |
| control system: | NK260 |
| spindle: | 9.0kw air cooled |
| machine table: | vacuum with T-slot combined |
| drive motors: | YAKASWA |
| inverter: | delata |
| machine bed: | heavy duty design |
| color: | optional |
| voltage: | 220v/380v |
Quick Details
Specifications

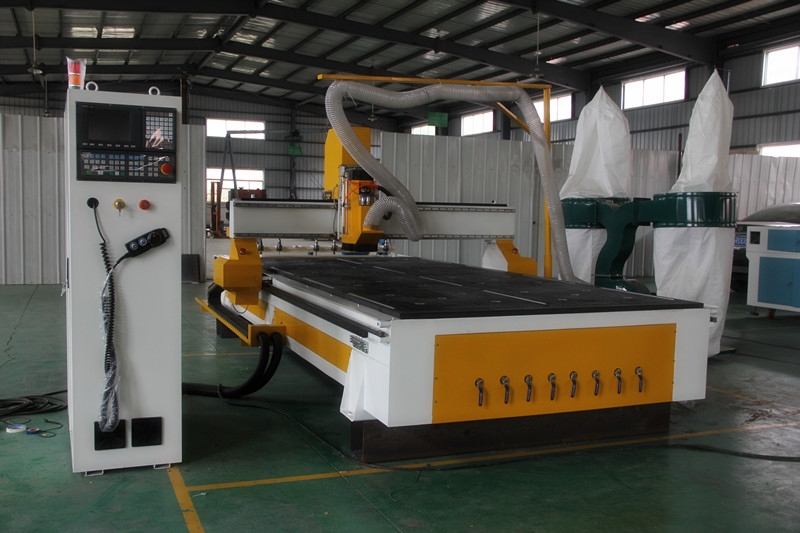

New product 2016 china supplier automatic 3d wood carving cnc router with high quality
1. Air cooling spindle----9 KW HQD air cooling spindle.Our domestic Well-known brands ,long working life,low noise,strong cutting ability to ensure the long time working.Compared to HSD,this brand lower price,but also good to use.
2.NK260 control system----Easy operation. Support offline operation,more table.(Optional :Syntec control system)
3. Taiwan delta servo motor----High-performance drive motor to ensure that the machines high speed and accuracy.(Optional: Japan Yaskawa servo motor)
4. HIWIN linear rail 25# from Taiwan ----Smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.
5. Vacuum & T-slot combined worktable----Can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF boardon it for protection.
6. Helical rack transmission----Ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.

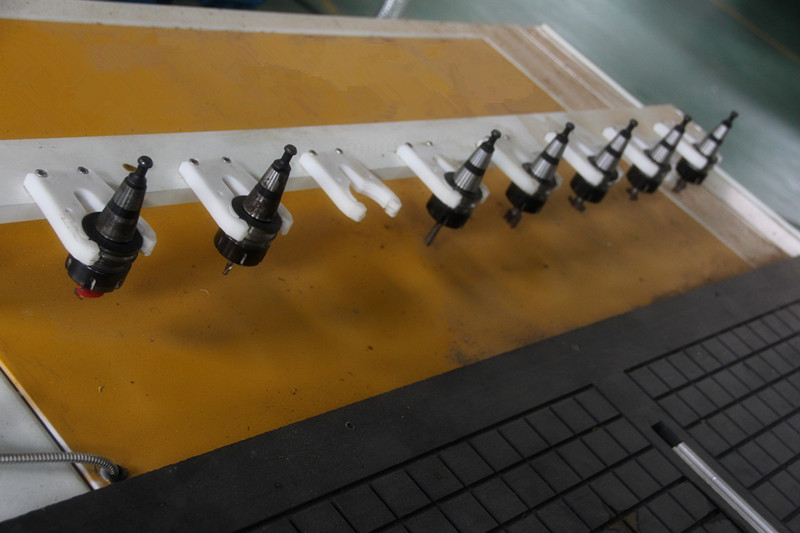

7. Carrousel Tool Magazine(ATC 1325 cnc router)---- With 8 tool holders and 8 tool forks,can save working time and will work so convenient. Can also choice the 6 or 10 tool holders and forks.
