| Application: | Laser Cutting |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Model Number: | 1390 |
| Brand Name: | donglian |
| Place of Origin: | China (Mainland) |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Control Software: | laser cut 6.1 |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 0-60,000mm/min |
| Cutting Area: | 1200*900mm |
| Cutting Thickness: | 2mm metal |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Metal,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Laser Type: | CO2 |
| Condition: | New |
| motor: | china best chuangwei stepper motor |
| driver: | leadshine |
| laser tube: | co2 laser tube |
| laser power: | 40w |
| air pump: | standard parts |
| water pump: | standard parts |
| fan/exhaust: | standard parts |
| control system: | letrol lasercut6.1 |
| water chiller: | optional |
| Graphic Format Supported: | AI, PLT, DXF, BMP, DST |
Quick Details
Specifications

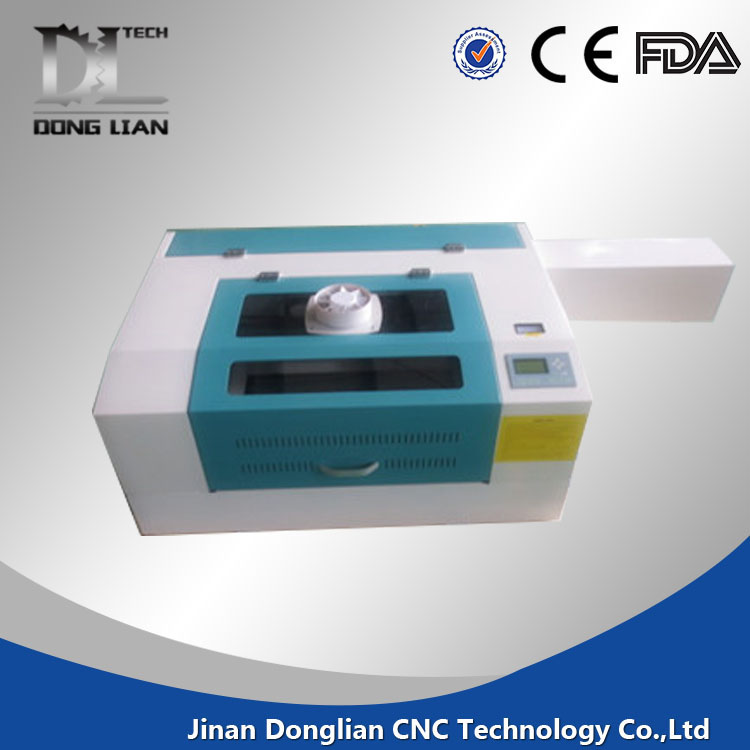

hot sale mini desktop 3d laser crystal/acylic/wood engraving machine with good price
Applicable Materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,
glass and other nonmetal materials.
Applicable industries:
advertisement, arts and crafts, leather, toys, garments, model, building upholstery, computerized
embroidery and clipping, packaging and paper industry.
|
Laser type |
Sealed CO2 laser tube |
|
Laser power |
40w,60W,80W,100W,130W,150W,200W (optional) |
|
Engraving area |
400*300,900×600mm,1200×900mm,1300×900mm,1400×900mm(optional) |
|
Engraving speed |
0-60,000mm/min |
|
Resetting position accuracy |
±0.05mm |
|
Working voltage |
AC110-220V ±10%.50-60HZ |
|
Power |
<1,000W |
|
Operating temperature |
0-45°C |
|
Operating humidity |
5-95% |
|
Minimum shaping character |
English 1×1mm |
|
Graphic format supported |
BMP, PLT,DST, DXF,and AI |
|
Driving system |
Stepper |
|
Cooling mode |
Water-cooling and protection system |
|
Auxiliary equipment |
Exhaust-fan, air-exhaust pipe |
|
Controlling software |
DSP control system |
|
Compatible software |
Coreldraw auto CAD photoshop |
