Product Main

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Automation: Automatic
Power: Cnc
Brand Name: ZZHHGY
Condition: New
Certification: ISO 9001:2000
Extra Services: Heat Treating
Material / Metal Processed: Stainless Steel
Raw Material: Pipe
Machine Type: Pipe and Tube Bending Machine
Model Number: WGYD-325
Place of Origin: China (Mainland)
Proudct name: Pipe bending machine
Type: Hot bending
Push way: Mechanical driving
Clamp control: Hydraulic
Control system: CNC
Feeding force: 60T
Bending diameter: 76-325mm
Control axle: TWO
Max. stroke: 3.5m
Max. pipe length: 12m

Specifications

CNC INDUCTION HEATING PIPE BENDING MACHINE

Main Features:
1 Adjustable rocker arm is suitable for various radius adjustment.
2 Siemens PLC controls the radius ajustment, bending angle, bending speed, heating temperature, cooling water flow.
3 PC industrial computer monitors bending pipes' technical parameters, to ensure the consistency of the bent pipes.
4 Extra-large memory can store various groups of technology.

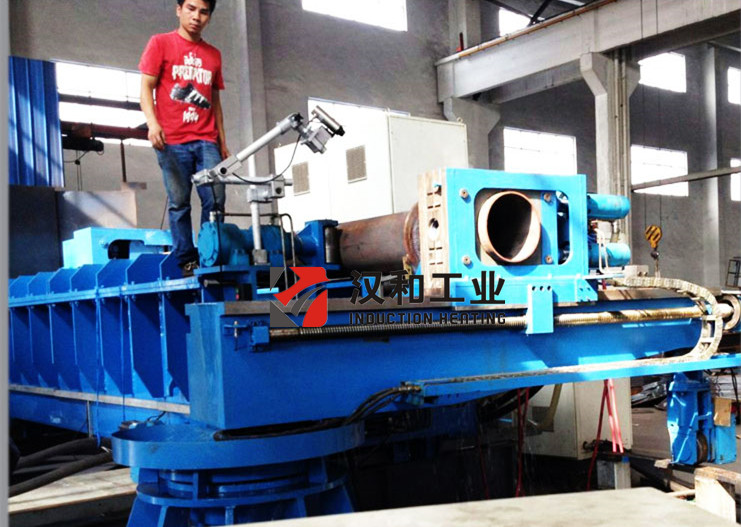

CNC Induction Heating Pipe Bending Machine WGYD325
Technical Parameters:
  Model      Pipe diameter
(mm)		  Max wall thickness
(mm)		  Max thrust
(T)		  Bending radius  Bending angle
()		  Bending speed
(mm/s)		  Speed of quick return
(mm/min)		  Induction heating power
(KW)
 WGYD-219  76-219   18/25/40  60  1.5D  0-180  0.3-4  1000  160
 WGYD-325  76-325   18/25/40  70  2.5D   0-180  0.25-3  1000  200
  WGYD-426  108-426   18/25/40  100  3D   0-180  0.25-3  1000  250
  WGYD-530  159-529   18/25/40  120  3D   0-180  0.2-3  1000  300
  WGYD-630  159-630   18/25/40  160  3D   0-180  0.2-3  1000  400
  WGYD-720  219-720   18/25/40  180  3D   0-180  0.15-2.5  800  500
  WGYD-830  219-830   18/25/40  220  3D   0-180   0.15-2.5  800  550
  WGYD-1020  426-1020   18/25/40  260  3D   0-180   0.15-2.5  800  600
  WGYD-1220  529-1220   18/25/40  300  3D   0-180   0.15-2.5  800  700
  WGYD-1420  630-1420   18/25/40  350  3D   0-180   0.15-2.5  800
  800
