| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Certification: | CE |
| Weight: | 300kg |
| Power(W): | 1.5kw water cooled spindle |
| Voltage: | 220v/380v |
| Model Number: | DL1212 |
| Brand Name: | DLTECH |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| effective working area: | 1200*1200mm |
| Z axis clearance: | 100mm |
| driver motor: | stepper motors |
| control system: | ncstudio (optional) |
| transimission: | ball screw drive |
| machine table: | cast iron movable table |
| rails: | round rails |
| spindle: | 1.5kw water cooled |
| voltage: | 220v |
| color: | optional |
Quick Details
Specifications

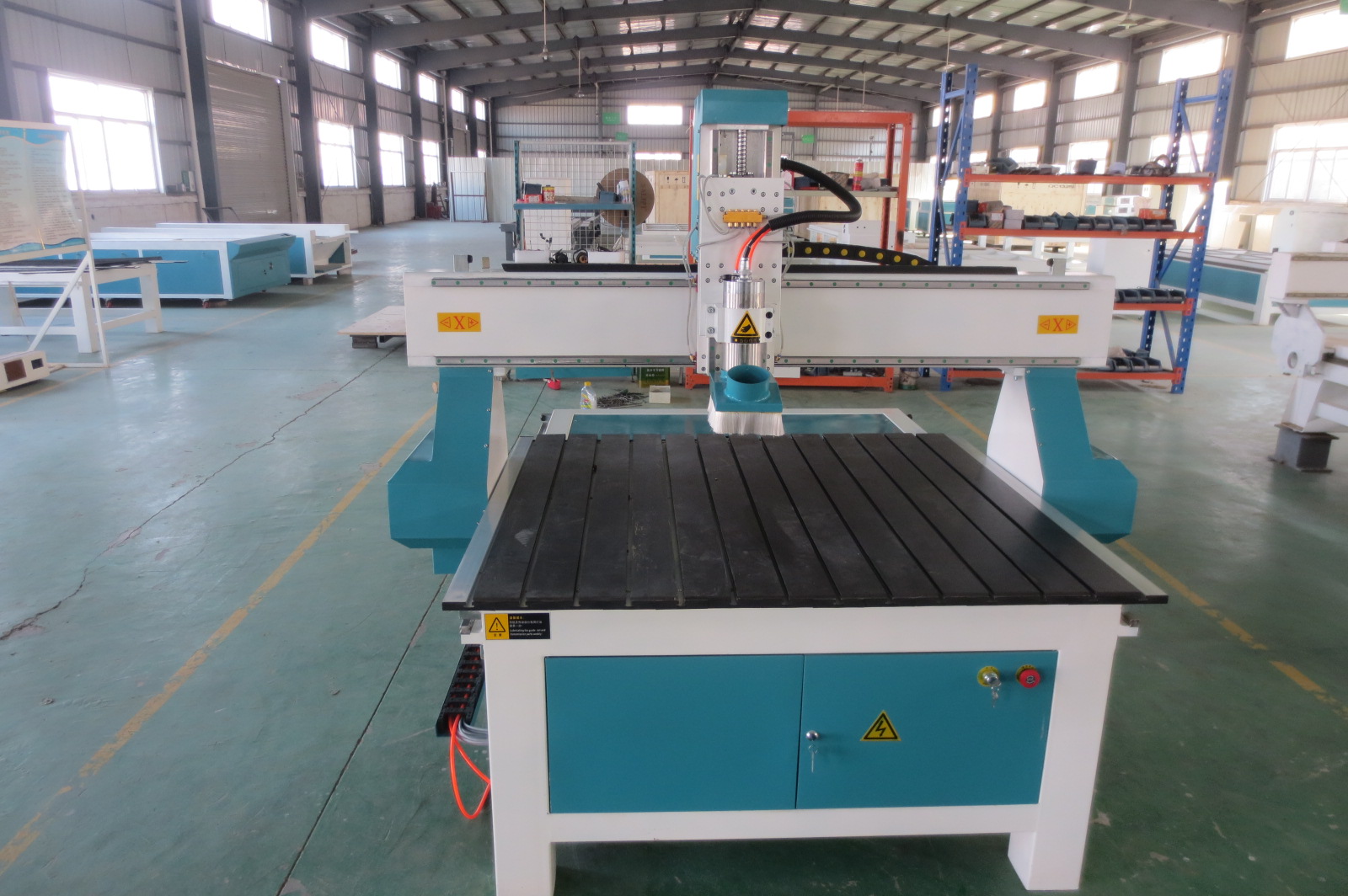

DL1212 steel welded machine frame cnc router machine for aluminum
cnc router machine for aluminum technical parameter:
|
NO. |
Discription |
Parameter |
|
1 |
X, Y, Z Working Area |
1200X1200X100mm |
|
3 |
X, Y, Z Traveling Positioning Accuracy |
±0.03/300mm |
|
4 |
X, Y, Z Repositioning Positioning Accuracy |
±0.05mm |
|
5 |
Lathe Structure |
Welded Strucutre |
|
6 |
X, Y Structure |
Gear Wheel Transmission, Shaft Linear Bearings |
|
7 |
Z Structure |
Ball Screw, Shaft Linear Bearings |
|
9 |
Max. Speed |
0-60000mm/min |
|
10 |
Max. Working Speed |
0-25000mm/min |
|
11 |
Spindle Power Motor |
3.2 kw water cooled |
|
12 |
Spindle Speed |
0-24000RPM |
|
13 |
Working Mode |
mach3 with handwheel(optional) |
|
14 |
Working Voltage |
AC220v, 50/60HZ |
|
15 |
Command |
G Code, *uoo, *mmg, *plt |
|
17 |
Interface |
Internet line |
|
20 |
X, Y Working Delicacy |
< 0.01mm |
|
21 |
Software |
Type3 software, Wentai software, Artcam software |
|
22 |
Running circumstance |
Temperature: 0°C~45°C, |
|
23 |
Packing Size |
3.1*2.2*1.7m |
|
24 |
Net Weight |
200KG |
|
25 |
Gross Weight |
300KG |
Features:
1. Bed deformation is strong, good rigidity, high precision, reliable performance, durability.
2. Y axis adopts double motor drive, select matching, to ensure stable operation.
3 using high-precision gear transmission system, high precision, fast speed.
4 unique multiple spindle design, can choose the head number and power of the motor according to the customer demand, according to the workpiece can freely adjust the distance between the head.
5 a machine can be completed simultaneously several machine workload, as production time and put you to save cost, improve production efficiency.
Applicable Industries:
|
Furniture Decoration Industry |
1)A large area flat plate engraving |
|
Wood Products Processing |
1)sewing machine table |
|
Musical Instrument Industry |
1)instrument 3D surface engraving |
|
Artwork |
1)photo frame |
|
Electronic Industry |
1)circuit board |
