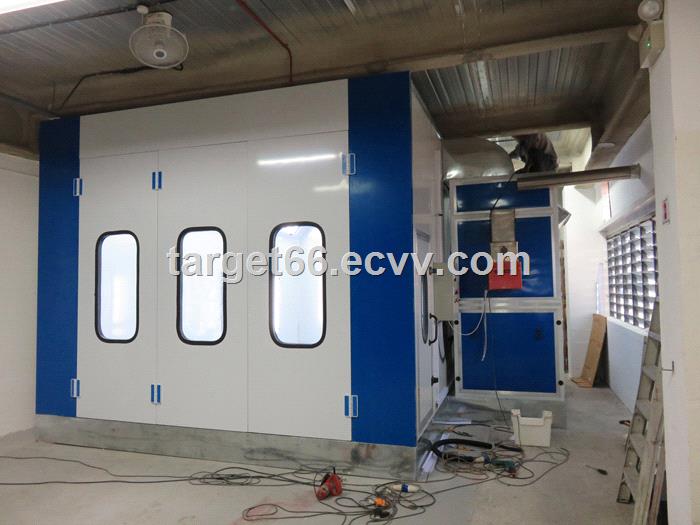

Spray Booth Diesel Burner TG-60B

Inside dimension

6900*4000*2800 (LxWxH)

Front door(mm)

3000*2700 mm(W×H)

Outside dimension

7000*5400*3450 (LxWxH)

Total Power(Kw)

16 Kw,Noise < 80db

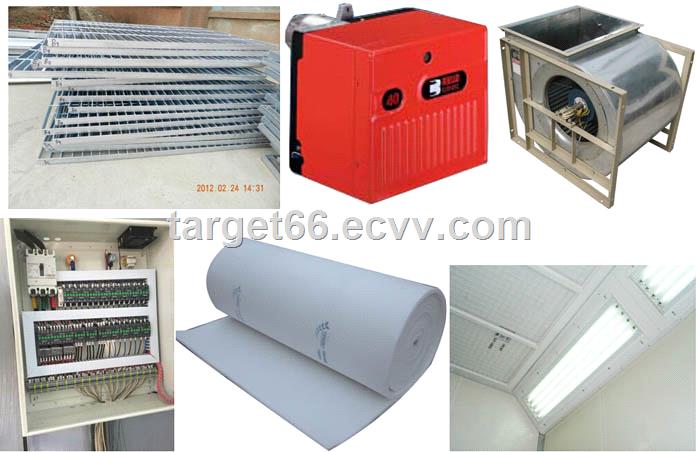

Cabin System

Wallboard

EPS (epispastics polystyrene) colorful steel skin panel,EPS foam Density is 16kg/m3,50mm thick, steel 0.5mm thick, compound construction, anti-flame and heat-insulation, galvanized steel roof panel.

Basement

350mm depth, Galvanized steel sheet and square steel pipe assembling, 2 rows of grid plates made by flat bar and round steel, 3 rows of diamond plates, galvanized. 2 ramps, external setting, 750 x 2000 mm ( W * L )/PC

Air Circulation System

Intake Fan

Blower Capacity: 25000m3/h

Exhaust Fan

Blower Capacity: 15000m3/h

Power: 4kw/PC

Power: 5.5kw/PC

Quantity: 2 pcs

Quantity: 1 PC

Model: Double-intake centrifugal fan

Model: Double-intake centrifugal fan

Air Volume: 25000m3/h, Air flow speed in the cabin: 0.25m/s

Heating system

Burner

Italy Riello G20 Diesel Burner, 200000Kcal/h. SUS304Stainless steel heat exchanger, argon arc welding.

Heat energy

Max Temp: 80. C, Heating Time: 4-5min(20-60°C), Fuel Consumption: 4-5kg/vehicle

Filter system

Dual-filtering structure

Primary filter: Can Capture Granules Larger than 10μm

Ceiling filter: 600g high efficiency filter, can Capture Granules Bigger than 4μm

Floor filter: fiberglass filter, exhaust activated carbon filter, Filtering rate> 95%

Lighting system

Ceiling lights

8Units×4Pcs=32Pcs×36W900LUX, with anti-explosion design.

Side lights

6Units×4Pcs=24Pcs×30W 900LUX, with anti-explosion design.

Control system

Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start.

Environmental System

Multi-Layer Fiberglasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards
