| Special Features: | Night vision |
|---|---|
| Technology: | Pinhole |
| Sensor: | CCD |
| Style: | Mini Camera |
| Type: | Analog Camera |
| Model Number: | MIL140CXP4 |
| Brand Name: | MiyeaEye |
| Place of Origin: | China (Mainland) |
| Resolution: | 700TVL |
| Sensor: | 1/3'' Sony CCD |
| Lens: | Pinhole lens |
| IR LEDs: | 10PCS invisible light led lamps |
Quick Details
Specifications

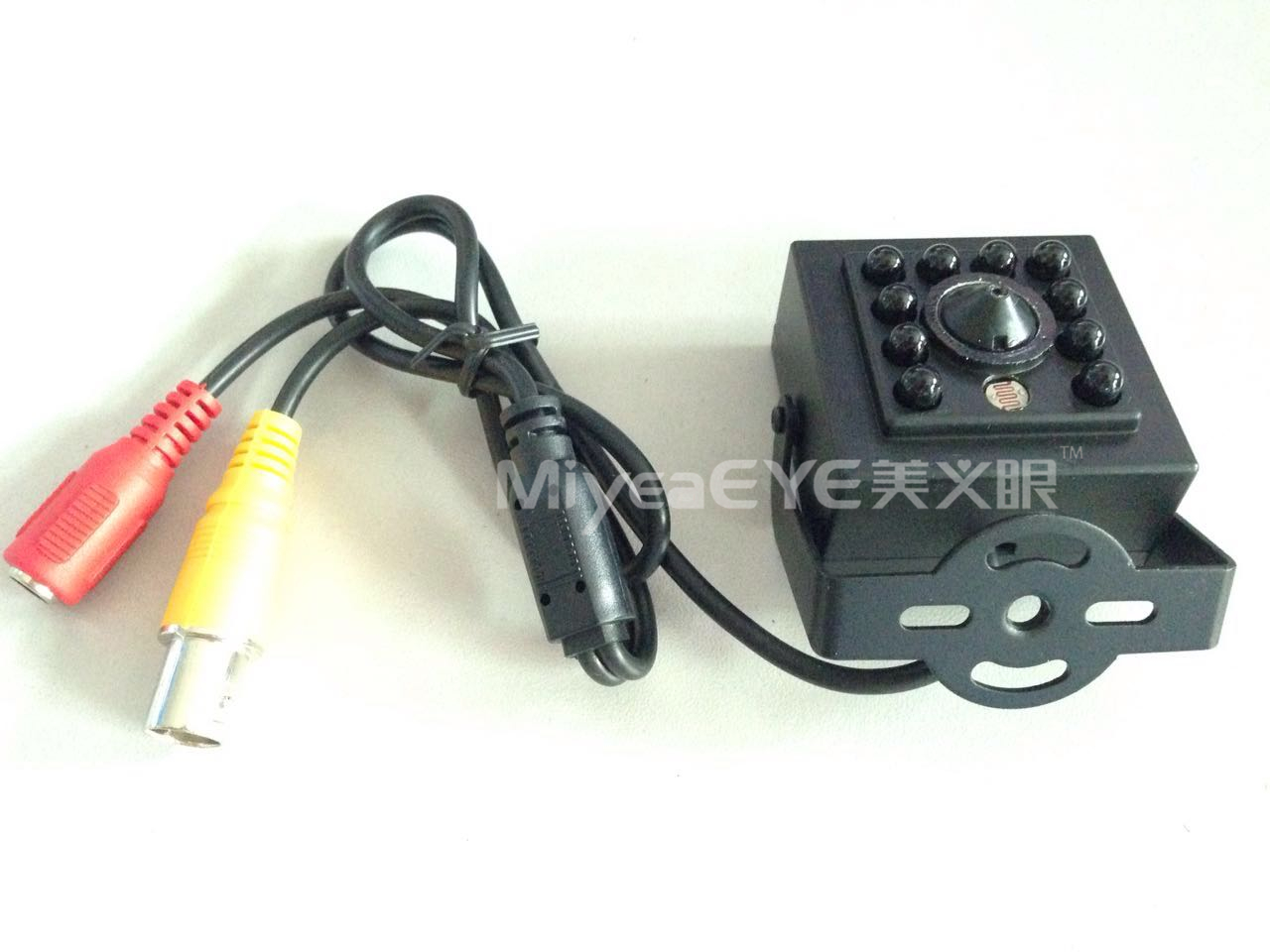

700TVL invisible light ir leds Mini Pinhole Camera
420TVL,480TVL,550TVL,650TVL,700TVL optional;
Night Vision Mini Camera,10PCS invisible light Led lamps
Specification:
|
Model
|
MIL140CXP4
|
- |
-
|
||
|
Image Device
|
1/3" Sony CCD
|
||||
|
Horizontal Resolution
|
700TVL(650TVL/420TVL available)
|
||||
|
Minimum Illumination
|
0Lux(LED ON)
|
- |
-
|
||
|
Effective Pixels
|
PAL:976(H)*582(V);NTSC:976(H)*494(V)
|
||||
|
Scanning System
|
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines,60 Field/Sec
|
||||
|
S/N Ratio
|
More Than 48dB(AGC off)
|
||||
|
Electronic Shutter
|
PAL:1/50~1/100,000 Sec; NTSC:1/60~1/100,000 Sec,auto
|
||||
|
Gamma Characteristic
|
0.45
|
||||
|
White Balance
|
Auto
|
||||
|
Lens Option
|
3.7mm pinhole lens
|
||||
|
BLC
|
Auto
|
||||
|
AGC
|
Auto
|
||||
|
Sync System
|
Internal Synchronization
|
||||
|
Video output
|
1Vp-p 75 Oms , Negative
|
||||
|
Power Consumption
|
12V±10%DC, 50mA
|
||||
|
Operation Temperature
|
-10℃ ~ + 50℃, RH 95% Max
|
||||
|
Storage Temperature
|
-20℃ ~ + 60℃, RH 95% Max
|
||||
|
Housing
|
Black
|
||||
|
Dimension
|
40*40mm
|
||||
|
Weight
|
50g
|
||||
|
Supplied Accessories
|
User manual,screw,bracket
|
||||
