| Item Type: | Refrigerator Lamps |
|---|---|
| Light Source: | LED |
| Model Number: | OBS-T812M66-18W |
| Brand Name: | OBS |
| Place of Origin: | China (Mainland) |
| Base Type: | Waterproof connector |
| Certification: | CE,EMC,ETL,LVD,PSE,RoHS,SAA |
| IP Rating: | IP66 |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| Color Temperature(CCT): | 3000K-6500K Optional |
| CRI (Ra>): | 80 |
| Lamp Luminous Efficiency(lm/w): | 120 |
| Lamp Luminous Flux(lm): | 2160 |
| Lamp Power(W): | 18 |
| Input Voltage(V): | AC100-277V |
| LED Light Source: | Epistar 2835 |
Quick Details
Specifications
Shenzhen OBS Opto-Electronics Co. Ltd

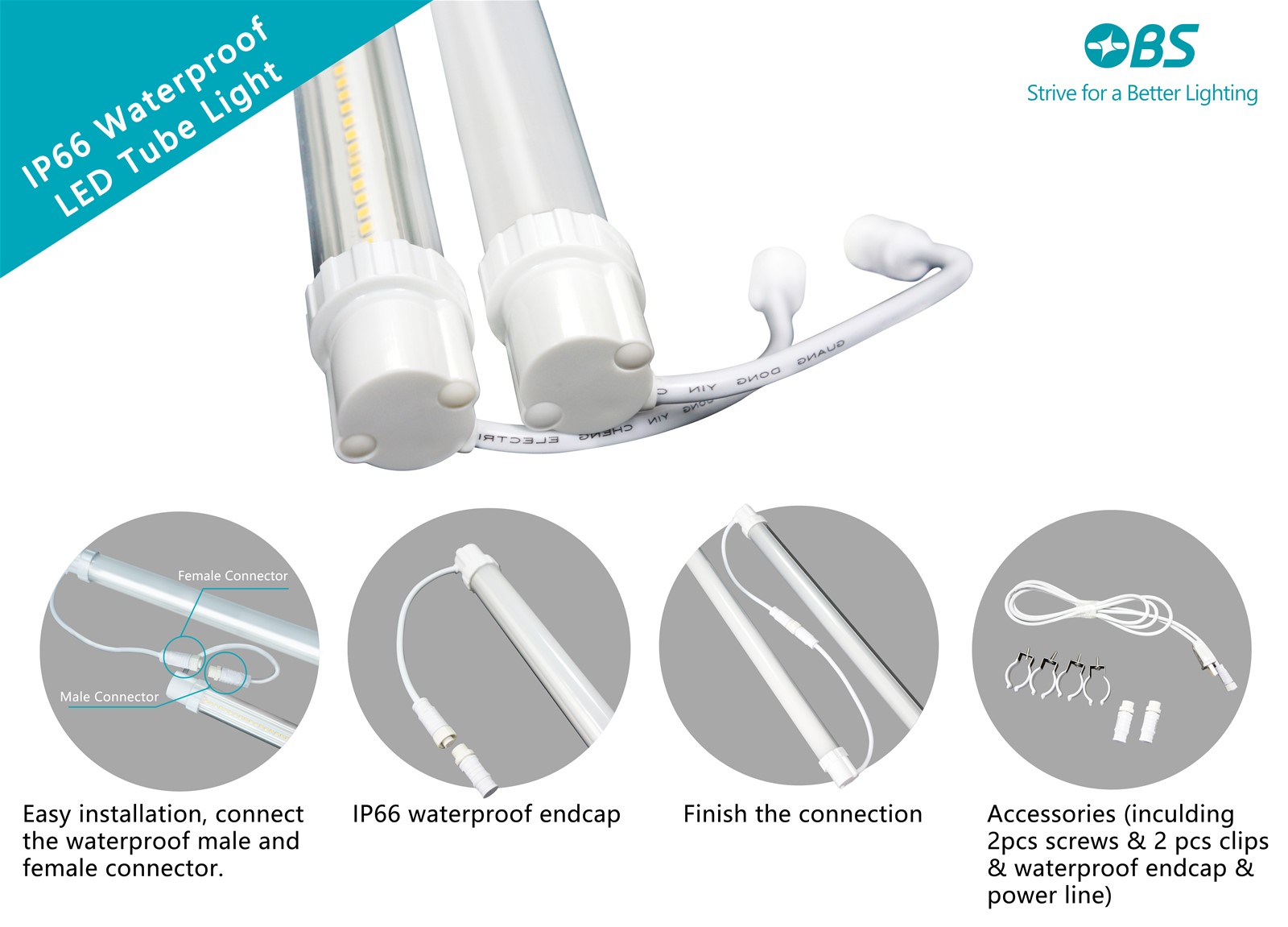

IP66 Waterproof LED Tube Light
＊Super efficacy: 100~120Lm±3Lm/w
＊Long lifespan, 3 years warranty
＊No EMV, environment protection
＊Homogeneous light distribution
＊No flickering, no buzzing
＊Easy installation
Product Dimension
600mm 618 28.5±2
1200mm 1188 28.5±2
Customized: 900mm 1500mm 2400mm
Specifications
＊ Light Source: Epistar 2835 ＊ Housing: AL+PC ＊ PC Cover: 87~89%
＊ THD: <12% ＊ Power input model: Double (Single/Double optional)
＊ Working Humidity: 10%~90% ＊ Storage Temperature: -30°C ~ 60°C
＊ Using Environment: Indoor&Outdoor ＊ LEDS distribution: Single Row
＊ End Cap: Wired cap ＊ Power Supply: Built-in
＊ Operating Temperature: -20°C ~ 50°C
＊ Temperature difference between outside & Inside lower 10°C, the surface temperature get the max
Constant temperature after lighting up 10 minutes.
Application
Underground Garage, slaughter house, fresh meet processing facory, vegetable market
Etc., some other wet application
Packaging Information
0.6m, 0.9m, 1.2m, 1.5m: 30pcs/carton
Product Length Packing Carton Dimension: Weight(KG)
Quantity L*W*H(mm)
0.6m 30pcs 660*235*300 7.5
1.2m 30pcs 127*235*300 12.5
1.5m 30pcs 157*235*300 15.0
Notice:
Safety Rules
1. Please CHECK the lamp before installation or apply, see if there is any damage in transportation.
2. Any maintenance must be operated by professional person.
3. in order to prevent suffocation risk, package material must be keep away from children or pets,
Children may swallow small parts in package.
4. Do NOT leave children alone beside the lights. Prohibit play with power equipment.
5. Do NOT use any thing to cover the lamp.
Cleaning
1. Make sure be cut off power before clean lamp
2. Please use dry cloth or slightly wet cloth to make clean lamp
3. Do NOT use any chemical substance to clean lamp
Recycling
Electronic Equipment must recycle, do NOT put into daily garbage
Warning
Prohibit maintain or dismantle lamp with unprofessional person.
We won't provide after service with maintain, opterated or dismantle if the have been operated by
Unprofessional person
IP66 Waterproof LED Tube Light
＊Super efficacy: 100~120Lm±3Lm/w
＊Long lifespan, 3 years warranty
＊No EMV, environment protection
＊Homogeneous light distribution
＊No flickering, no buzzing
＊Easy installation
Product Dimension
600mm 618 28.5±2
1200mm 1188 28.5±2
Customized: 900mm 1500mm 2400mm
Specifications
＊ Light Source: Epistar 2835 ＊ Housing: AL+PC ＊ PC Cover: 87~89%
＊ THD: <12% ＊ Power input model: Double (Single/Double optional)
＊ Working Humidity: 10%~90% ＊ Storage Temperature: -30°C ~ 60°C
＊ Using Environment: Indoor&Outdoor ＊ LEDS distribution: Single Row
＊ End Cap: Wired cap ＊ Power Supply: Built-in
＊ Operating Temperature: -20°C ~ 50°C
＊ Temperature difference between outside & Inside lower 10°C, the surface temperature get the max
Constant temperature after lighting up 10 minutes.
Application
Underground Garage, slaughter house, fresh meet processing facory, vegetable market
Etc., some other wet application
| Model | Power
(W) |
Production Dimension
(mm) |
Input
V |
View
Angle |
Light
Output |
CRI | PF | Power Efficiency | Luminous Efficiency | Color Temperature |
| OBS-T806M66-09W | 9 | Φ28.5*600 |
AC100-277 |
180° |
900Lm | >80 | >0.93 | ≥100 Lm/W |
>90% | 3000K-6500K Optional |
OBS-T809M66-15W |
15 | Φ28.5*900 |
AC100-277 |
180° |
1500Lm | >80 | >0.93 | ≥100 Lm/W |
>90% | 3000K-6500K Optional |
OBS-T812M66-18W |
18 |
Φ28.5*1200 |
AC100-277 |
180° |
1800Lm | >80 | >0.93 | ≥100 Lm/W |
>90% | 3000K-6500K Optional |
OBS-T815M66-22W |
22 | Φ28.5*1500 |
AC100-277 |
180° |
2200Lm | >80 | >0.93 | ≥100 Lm/W |
>90% |
3000K-6500K Optional |
Packaging Information
0.6m, 0.9m, 1.2m, 1.5m: 30pcs/carton
Product Length Packing Carton Dimension: Weight(KG)
Quantity L*W*H(mm)
0.6m 30pcs 660*235*300 7.5
1.2m 30pcs 127*235*300 12.5
1.5m 30pcs 157*235*300 15.0
| Product Length |
Product Quantity |
Carton Dimension L*W*H(mm) |
Weight(KG) |
| 0.6m | 30 |
660*235*300 |
7.5 |
| 1.2m | 30 | 127*235*300 |
12.5 |
| 1.5m | 30 | 157*235*300 |
15.5 |
Notice:
Safety Rules
1. Please CHECK the lamp before installation or apply, see if there is any damage in transportation.
2. Any maintenance must be operated by professional person.
3. in order to prevent suffocation risk, package material must be keep away from children or pets,
Children may swallow small parts in package.
4. Do NOT leave children alone beside the lights. Prohibit play with power equipment.
5. Do NOT use any thing to cover the lamp.
Cleaning
1. Make sure be cut off power before clean lamp
2. Please use dry cloth or slightly wet cloth to make clean lamp
3. Do NOT use any chemical substance to clean lamp
Recycling
Electronic Equipment must recycle, do NOT put into daily garbage
Warning
Prohibit maintain or dismantle lamp with unprofessional person.
We won't provide after service with maintain, opterated or dismantle if the have been operated by
Unprofessional person
