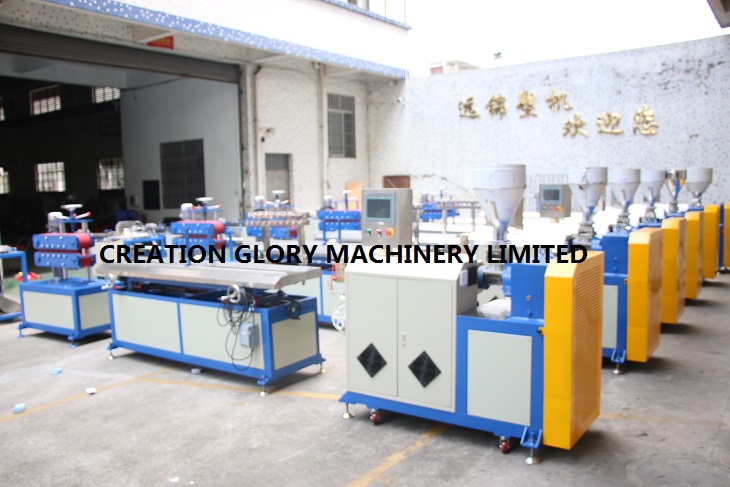

Details of PC light tube extrusion machine

1. the machine is used to produce various PC tube, PC profile, transparent LED lampshade, single color or double color LED lampshade etc;
2. Applied materials: PC;
3. Features and advantages:

(1) Newly developed online precise cutting technology, one-time cutting online, no need the second time cutting, cutting precision within 0.5mm, cut end neat, chipless, higher efficiency;

(2) Special screw for PC material, perfect plastication effect, to ensure the finished products without crystalized dot, without pulling mark, without vibration mark, with high light transmittance, and high transparency.






Composition & technical details of the PC light tube extrusion machine

1.   Single screw extruder machine:

   (1) Screw model: YJ45, YJ50, YJ55, YJ65 available for option; L/D: 28:1;

   Separated type screw is adopted as it is especially suitable for transparent material mixing diffuser material for production, so as to lower down raw materials cost largely.

   (2) Siemens motor drive, with enough motive power and quite stable in running; Temperature control meter: intelligent type;the precision could reach +/-1 degree;

   (3) Heating control zone: 7 zone (barrel 4 zone, extruding die 3 zone);



   2. Extruding die:

   Special S136H mirror surface steel for dies, the surface of the extruding dies is mirror polished.



   3. 3D calibration tank:

   Stainless steel tank;
   3D adjusting machine frame, with10-way vacuum, 10-way cooling water;
   Vacuum pump fixed outside;
   the whole machine is compact and strong without vibration.

   Length: 1.5m, 2m, 2.5m, 3m for option;

   Vacuum pressure: 0.01~0.08MPA, adjustable;
   Vacuum pump power 1.5KW;
   Vacuum is stable and silent.


   4. Belt type tractor machine:

   Open-close, up-down adjusting;
   Belt workable length 1meter,constant stable tractor;
   High wear-resistant foamed surface PU multi-wedge belt;
   High precision frequency conversion controller;
   Tractor speed 0-15m/minute stepless adjustable.
   Single motor or double motor available for option;
   Power: 1.5~3KW.

   5. Automatic online precise cutter with collection stand:

   Innovative cutting technology;
   Optical type length-setting device;
   Solve the online-precise-cutting difficulty in this industry;
   Online cutting precision: within 0.5mm;
   Cut end neat, without powder and dust;
   No need the second time precise cutting;
   Fully touch screen control;
   Originally created active servo tracing cutting platform.
