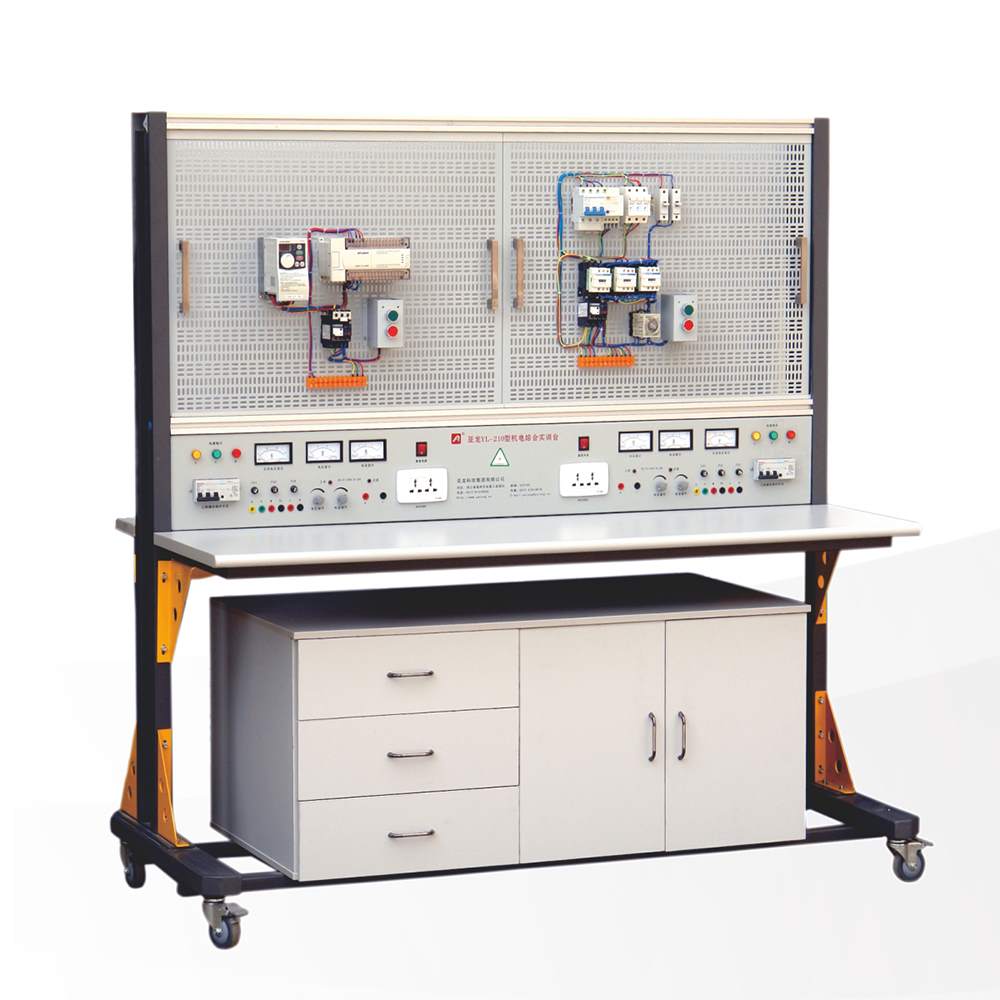

Parameters

Power supply: 3-phase, 5-line, AC380V10%, 50Hz

Dimension (LWH): 1680mm750mm1630mm

Total capacity: 1.5KVA

Fuse for short circuit protection, circuit breaker for overload and leakage protection, leakage protection acting current 30mA

Training Content

Lighting circuit installation and connection

Fluorescent lamp connection

Single-phase watt hour meter application

Motor inching and continuous rotation circuit connection

Button interlocking motor positive, negative circuit connection

Contactor interlocking motor positive, negative circuit connection

Button and contactor dual interlocking motor positive, negative circuit connection

Remote and local controlled motor control circuit installation

Motor stator winding series resistance start control circuit connection

Button switchover Y start control circuit connection

Time relay switchover Y start control circuit connection

Motor half-wave rectification dynamic braking control circuit connection

Motor full-wave rectification dynamic braking control circuit connection

Motor plug braking control circuit connection

Motor round trip control circuit connection

Motor sequence start control circuit connection

Motor timing running control circuit connection

Button switchover two-speed motor circuit connection

Time relay changeover two-speed motor circuit connection
